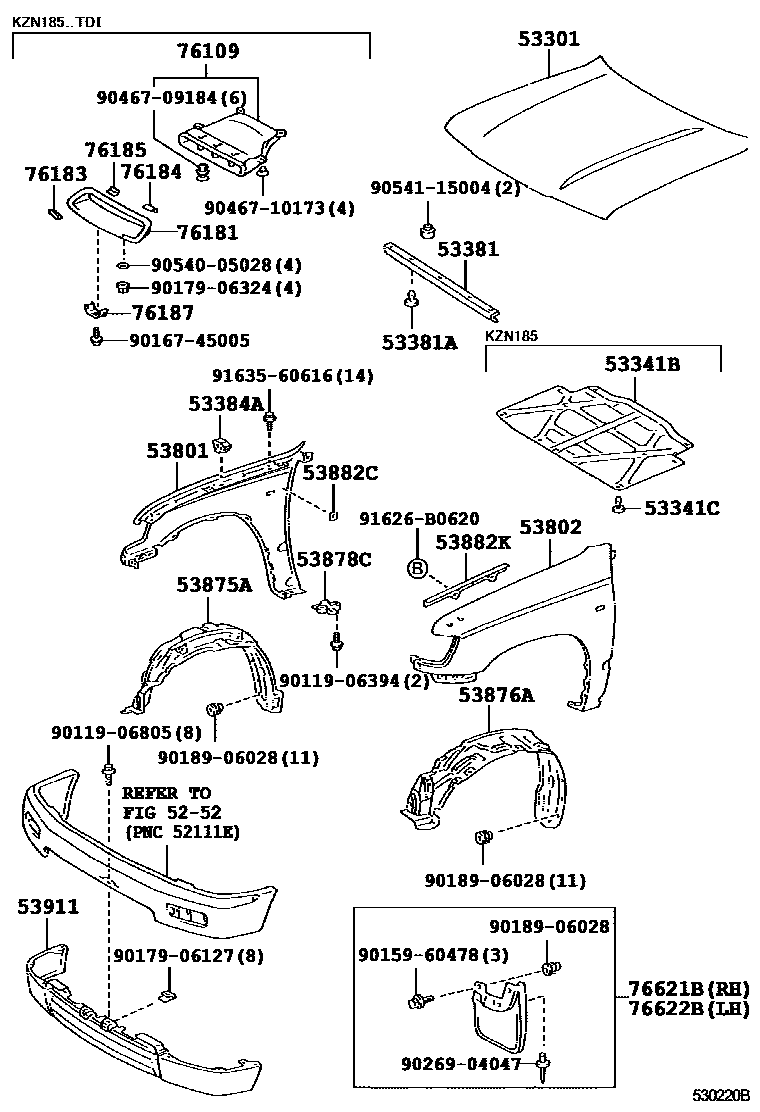

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1 0005 1

5252

53301HOOD SUB-ASSY

main53301-35040iKZN185,RZN18#,VZN18#..EFI,TDE199511-200211

main53301-35050iKDN185,KZN185..DCR,TDI199607-200211

main53301-35080iRZN185..NOB..SSRX;RZN180,VZN180..SPR199901

main53301-35090iKZN185..4FC..SSRX199901

53341BINSULATOR, HOOD

main53341-35020iKZN185..TDE199511-199807

main53341-35021iRZN18#,VZN18#199807-200003

main53341-35022iRZN18#,VZN18#200003

main53341-35030iKZN185..TDI199607-199807

main53341-35031iKZN185199807-200003

main53341-35032iKDN185,KZN185200003

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006×10iRZN18#,VZN18#199807

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-35020iKDN185,KZN185,RZN18#,VZN18#199511

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×5iKDN185,KZN185,RZN18#,VZN18#199511

53384ABUMPER, FENDER TO HOOD

main53384-35010×2iKDN185,KZN185,RZN18#,VZN18#199511

53801FENDER SUB-ASSY, FRONT RH

main53811-35100iKDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)199511

main53811-35110iKDN185,KZN185,RZN185..NOB199511

main53811-35320iRZN180,VZN180..SPR199807

main53811-35350iRZN180,VZN180..SPR;KZN185,RZN185..NOB..SSRX199901

53802FENDER SUB-ASSY, FRONT LH

main53802-35160iKDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)199511

main53802-35170iKDN185,KZN185,RZN185..NOB199511

main53802-35360iRZN180,VZN180..SPR199807

main53802-35390iKZN185,RZN185..NOB..SSRX199901

main53812-35430iRZN180,VZN180..SPR199901

53875ALINER, FRONT FENDER, RH

main53875-35020iKZN185,RZN185,VZN185199511-199807

main53875-35050iKDN185,KZN185,RZN18#,VZN18#199807

53876ALINER, FRONT FENDER, LH

main53876-35010iKZN185,RZN185,VZN185199511-199807

main53876-35040iKDN185,KZN185,RZN18#,VZN18#199807

53878CSPACER, FRONT FENDER

main53878-35020×2iKDN185,KZN185,RZN18#,VZN18#199511

53882CSEAL, FRONT FENDER MAIN

main53882-16030×6iKZN185,RZN18#,VZN18#199511-199910

53882KSEAL, FRONT FENDER

main53882-35010iKDN185,KZN185199511

53911PANEL, FRONT VALANCE

main53911-35120iKZN185,RZN185..NOB199511-199807

sub53911-35909

main53911-35130iKZN185,RZN185..4FC..SSRV199801-199807

main53911-35140iKZN185,RZN185..WIB..4FC..SSRX199701-199707

main53911-35180-B0iKZN185,RZN185,VZN185..WIB199511-199708

WARM GRAY PEARC ME,TRIM1#&1A5

main53911-35180-D0iKZN185,RZN185,VZN185..WIB199511-199708

RED MM,TRIM16&3K4

main53911-35300iKDN185,KZN185,RZN185..NOB199807-200211

sub53911-35911

main53911-35320-A0iKZN185,RZN185..WIB..4FC..SSRX199911-200007

main53911-35320-A1iKDN185,RZN18#..SSRV200008-200211

WHITE,K83

main53911-35320-B0iKZN185,RZN185..WIB..4FC..SSRX199810

main53911-35320-B1iVZN185;KDN185,RZN185..SSRG200008-200211

SILVER ME.,KG8 ,K72 ,K73 ,1C0

main53911-35320-B2iKZN185,RZN185,VZN185..WIB199807-200008

BL.SILVER ME,K82 ,K88 ,K91 ,K93 ,K94

main53911-35320-B3iKDN185,RZN185..WIB..SSRX200112-200211

GRAY ME.,KF9 ,KG2 ,KG9

main53911-35320-C0iRZN18#..SSRV200112-200210

main53911-35320-D0iKDN185,RZN185..WIB..SSRX200107-200211

RED MM,3K4

main53911-35320-F0iKDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)200008-200211

CHAMPAGNE M.M.,KG4

main53911-35320-J0iKDN185,RZN185..WIB..SSRX200107-200211

DK.BLUE M.M.,8L7

main53911-35330-B1iKZN185,RZN185..NOB..SSRX199906-200008

BL.SILVER ME.,K82 ,K88 ,K91 ,K93 ,K94

main53911-35340-A0iRZN180,VZN180..SPR199807-200211

WHITE,K83

main53911-35340-B0iRZN180..SPR200008-200211

SILVER ME.,KG3 ,KG8 ,K73

main53911-35908iKZN185,RZN185,VZN185..WIB199807-199906

sub53911-35350

76109GUIDE SUB-ASSY, HOOD AIR INTAKE

main76109-35010iKZN185..TDI199607-200008

sub76109-35011

main76109-35020iKDN185200008

76181BULGE, HOOD

main76181-35900iKDN185,KZN185..DCR,TDI199607

76183PROTECTOR, HOOD BULGE, NO.1

main76183-12030×4iKDN185,KZN185..DCR,TDI199607

76184PROTECTOR, HOOD BULGE, NO.2

main76184-12020×2iKDN185,KZN185..DCR,TDI199607

76185PROTECTOR, HOOD BULGE, NO.3

main76185-35010iKDN185,KZN185..DCR,TDI199607

76187RETAINER, HOOD AIR INTAKE GUIDE, NO.1

main76187-35010iKDN185,KZN185..DCR,TDI199607

76621BMUDGUARD, FRONT BODY, RH

main76621-39395iKZN185,RZN185..SSR199511-199807

76622BMUDGUARD, FRONT BODY, LH

main76622-39395iKDN185,KZN185,RZN185..NOB199807

9011906394

main90119-06394

9011906805

main90119-06805

9015960478

main90159-60478

9016745005

main90167-45005

9017906127

main90179-06127

9017906324

main90179-06324

9018906028

main90189-06028

9026904047

main90269-04047

9046709184

main90467-09184

9046710173

main90467-10173

9054005028

main90540-05028

9054115004

main90541-15004

91626B0620

main91626-B0620

9163560616

main91635-60616

37 parts on this diagram · 5 diagrams in section
