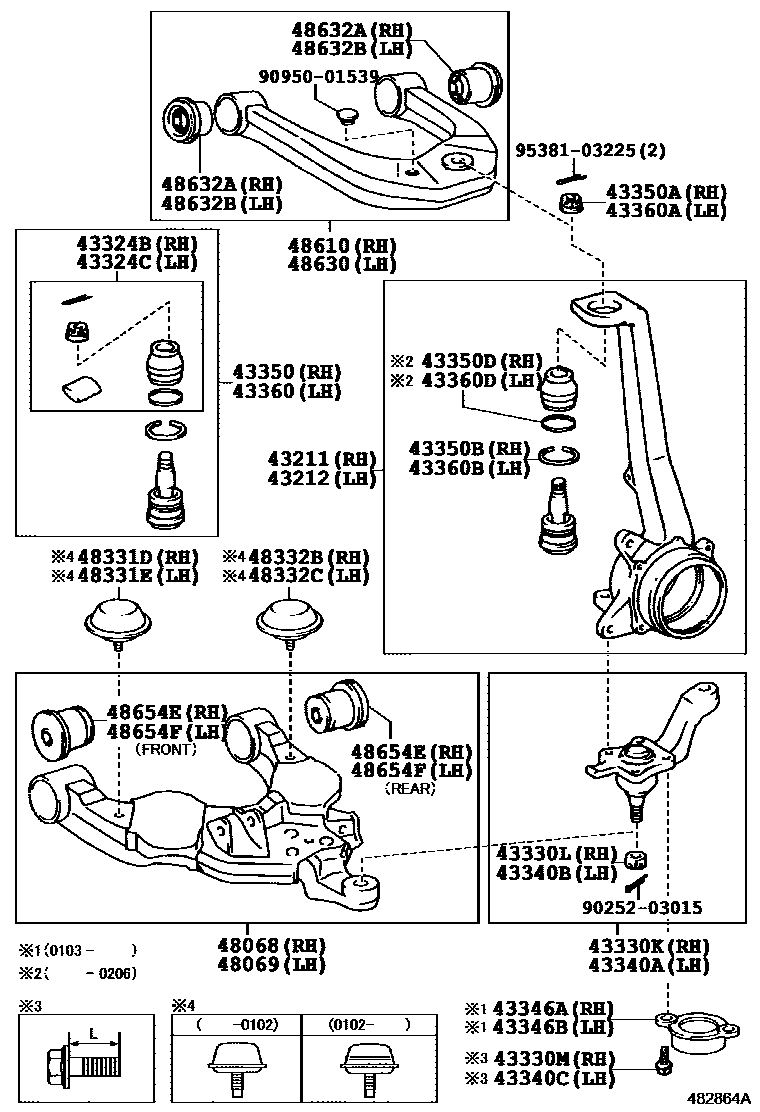

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43201-35070iKZN185,RZN185..SSR,SSRV,SSRX199511-199708

sub43201-35071

main43201-35080iKZN185..SSRX..TDI;KZN185,RZN185..SSRG;KDN185,RZN180,VZN18#199511-200105

sub43201-35081

main43201-35081iKDN185,RZN18#,VZN185200105-200211

43212KNUCKLE, STEERING, LH

main43202-35060iKZN185,RZN185..SSR,SSRV,SSRX199511-199708

sub43202-35061

main43202-35070iKZN185..SSRX..TDI;KZN185,RZN185..SSRG;KDN185,RZN180,VZN18#199511-200105

sub43202-35071

main43202-35071iKDN185,RZN18#,VZN185200105-200211

43324BCOVER, FRONT UPPER BALL JOINT DUST, RH

main43324-39015iKDN185,KZN185,RZN18#,VZN18#199511-200211

43324CCOVER, FRONT UPPER BALL JOINT DUST, LH

main43324-39015iKDN185,KZN185,RZN18#,VZN18#199511-200211

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39415iKDN185,KZN185,RZN18#,VZN18#199511-200103

sub43330-39585

main43330-39585iKDN185,RZN18#,VZN185200103-200211

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-16050iKDN185,KZN185,RZN18#,VZN18#199511-200211

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-10406iKDN185,KZN185,RZN18#,VZN18#199511-200009

main90105-10505iKDN185,RZN18#,VZN185200009-200105

main90119-10933iKDN185,RZN18#,VZN185200103-200211

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39325iKDN185,KZN185,RZN18#,VZN18#199511-200103

sub43340-39465

main43340-39465iKDN185,RZN18#,VZN185200103-200211

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-16050iKDN185,KZN185,RZN18#,VZN18#199511-200211

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-10406iKDN185,KZN185,RZN18#,VZN18#199511-200009

main90105-10505iKDN185,RZN18#,VZN185200009-200105

main90119-10933iKDN185,RZN18#,VZN185200103-200211

43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH

main43346-60011iKDN185,RZN18#,VZN185200103-200211

43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH

main43346-60011iKDN185,RZN18#,VZN185200103-200211

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-39016iKDN185,KZN185,RZN18#,VZN18#199511-200211

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-14010iKDN185,KZN185,RZN18#,VZN18#199511-200211

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-39180iKDN185,KZN185,RZN18#,VZN18#199511-200211

43350DWIRE (FOR FRONT UPPER BALL JOINT RH)

main90522-43001iKDN185,RZN18#,VZN185200206-200211

sub90580-10001

main90580-10001iKDN185,KZN185,RZN18#,VZN18#199511-200206

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-39016iKDN185,KZN185,RZN18#,VZN18#199511-200211

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-14010iKDN185,KZN185,RZN18#,VZN18#199511-200211

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-39180iKDN185,KZN185,RZN18#,VZN18#199511-200211

43360DWIRE (FOR FRONT UPPER BALL JOINT LH)

main90522-43001iKDN185,RZN18#,VZN185200206-200211

sub90580-10001

main90580-10001iKDN185,KZN185,RZN18#,VZN18#199511-200206

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-35080iKZN185,RZN185,VZN185199511-199803

sub48068-35081

main48068-35081iKDN185,KZN185,RZN18#,VZN18#199803

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-35080iKZN185,RZN185,VZN185199511-199803

sub48069-35081

main48069-35081iKDN185,KZN185,RZN18#,VZN18#199803

48331DBUMPER, FRONT SPRING, NO.1 RH

main48304-35150iKDN185,KZN185,RZN18#,VZN18#199511-200102

main48304-35190iKDN185,RZN18#,VZN185200102

48331EBUMPER, FRONT SPRING, NO.1 LH

main48304-35150iKDN185,KZN185,RZN18#,VZN18#199511-200102

main48304-35190iKDN185,RZN18#,VZN185200102

48332BBUMPER, FRONT SPRING, NO.2 RH

main48305-35040iKDN185,KZN185,RZN18#,VZN18#199511-200102

main48305-35050iKDN185,RZN18#,VZN185200102

48332CBUMPER, FRONT SPRING, NO.2 LH

main48305-35040iKDN185,KZN185,RZN18#,VZN18#199511-200102

main48305-35050iKDN185,RZN18#,VZN185200102

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-35040iKDN185,KZN185,RZN18#,VZN18#199511

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-35020iKDN185,KZN185,RZN18#,VZN18#199511

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-35080iKDN185,KZN185,RZN18#,VZN18#199511

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-35080iKDN185,KZN185,RZN18#,VZN18#199511

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-35040iKDN185,KZN185,RZN18#,VZN18#199511

main48061-35050iKDN185,KZN185,RZN18#,VZN18#199511

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-35040iKDN185,KZN185,RZN18#,VZN18#199511

main48061-35050iKDN185,KZN185,RZN18#,VZN18#199511

9025203015

main90252-03015

9095001539

main90950-01539

9538103225

main95381-03225

35 parts on this diagram · 2 diagrams in section
