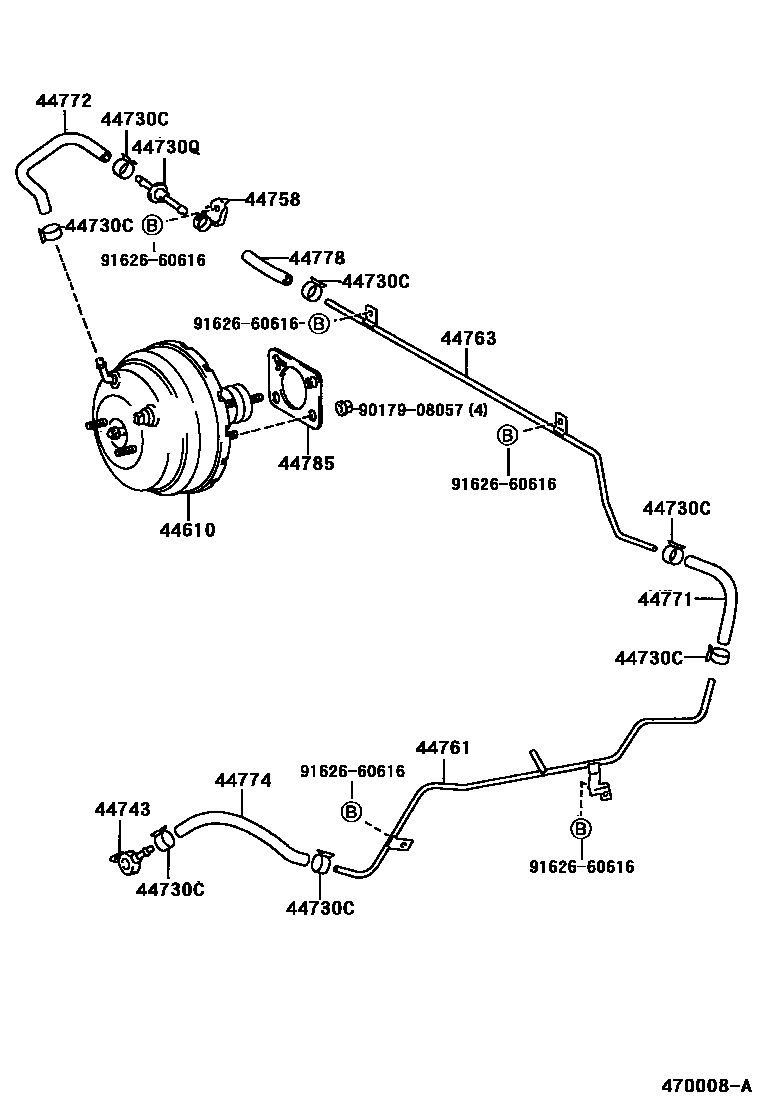

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-3D670iRZN185,VZN185199511-199807

main44610-3D680iKZN185199511-199807

main44610-3D830iRZN18#,VZN18#199807

main44610-3D840iKDN185,KZN185199807

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×5iRZN18#,VZN18#199511

sub96134-51500

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-10010iKDN185,KZN185,RZN18#,VZN18#199511

44743UNION(FOR VACUUM PUMP)

main90404-51237iVZN18#199511

main90404-51319iRZN18#199511

main90405-09175iKDN185,KZN185199511

44758BRACKET, VACUUM CHECK VALVE

main44758-35070iKDN185,KZN185,RZN18#,VZN18#199511

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-35130iKZN185199511-200008

main44761-60020iKDN185200008

44763TUBE, BOOSTER VACUUM

main44763-35030iRZN18#,VZN18#199511

main44763-35040iKZN185..TDE199511-199807

main44763-35050iKDN185,KZN185..DCR,TDI199607

44771HOSE, VACUUM TUBE CONNECTOR

main44771-35190iKDN185,KZN185199511

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-35320iKDN185,KZN185,RZN18#,VZN18#199511

44774HOSE, UNION TO CONNECTOR TUBE

main44774-35050iVZN18#199511

main44774-35060iRZN18#199511

main44774-60230iKDN185200008

main95447-09220iKZN185199511-200008

sub95447-09300

44778HOSE, CONNECTOR TO CHECK VALVE

main95446-09100iKDN185,KZN185,RZN18#,VZN18#199511

44785GASKET, BRAKE BOOSTER

main44785-35030iKDN185,KZN185,RZN18#,VZN18#199511

9017908057

main90179-08057

9162660616

main91626-60616

14 parts on this diagram · 2 diagrams in section
