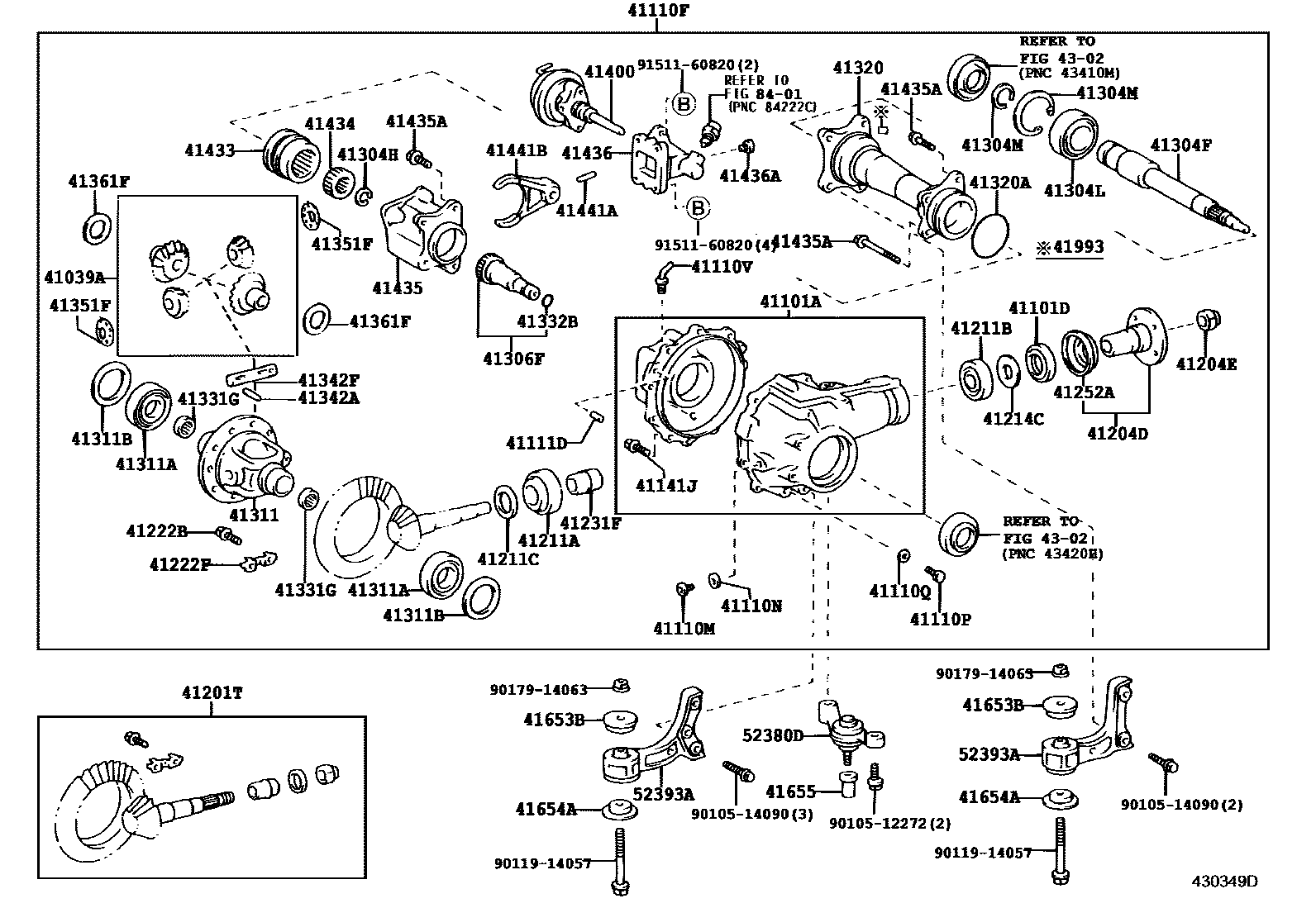

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

41039AGEAR KIT, DIFFERENTIAL

main41039-34050iKZN185..WIB..4FC;KZN185..NOB..TDI;KDN185,RZN185,VZN185..4FC;KZN185,RZN185..5F..(SSR,SSRX)..(EFI,TDI)¥13,900199511

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-35131iKDN185,KZN185,RZN185,VZN185¥44,000199511

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-38049iKDN185,KZN185,RZN185,VZN185¥430199511

sub90311-38066¥420

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-34241iRZN185..NOB¥225,000200008

main41110-34261iVZN185¥225,000200008

main41110-35801iVZN185¥228,000199511-200008

main41110-35831iRZN185..WIB¥228,000199511-200008

main41110-3D110iKZN185..NOB¥228,000199511-200008

main41110-3D140iKZN185..WIB..TDI;KZN185..WIB..5F..TDE¥228,000199511-200008

main41110-3D160iRZN185..NOB¥228,000199511-200008

main41110-3D190iKZN185..WIB..4FC..TDE¥228,000199511-199807

main41110-3D321iRZN185..WIB¥167,000200008

main41110-3D330iKDN185..NOB¥167,000200008

main41110-3D360iKDN185..WIB¥167,000200008

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90341-18032iKDN185,KZN185,RZN185,VZN185¥210199511

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main12157-10010iKDN185,KZN185,RZN185,VZN185¥100199511

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90341-24014iKDN185,KZN185,RZN185,VZN185¥310199511

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90430-24003iKDN185,KZN185,RZN185,VZN185¥200199511

sub90430-24017¥100

41110VUNION (FOR FRONT DIFFERENTIAL)

main90404-08004iKDN185,KZN185,RZN185,VZN185¥180199511

41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)

main90250-10017iKDN185,KZN185,RZN185,VZN185¥130199511

41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90105-10391iKDN185,KZN185,RZN185,VZN185¥170199511

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-80067iKZN185..WIB..5F..TDE;KDN185,KZN185..WIB..(DCR,TDI)¥64,500199511

sub41201-80502¥40,600

main41201-80078iKDN185,KZN185..NOB¥64,300199511

sub41201-80116¥64,500

main41201-80079iRZN185..WIB¥64,500199511

sub41201-80499¥53,700

main41201-80085iKZN185,VZN185..WIB..4FC..(EFI,TDE)¥64,500199511

main41201-80098iRZN185..NOB¥64,500199511

sub41201-80500¥44,800

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35060iRZN185,VZN185¥5,900199511

main41204-35070iKDN185,KZN185¥7,400199511

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90179-18020iKDN185,KZN185,RZN185,VZN185¥190199511

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35023iKDN185,KZN185,RZN185,VZN185¥2,550199511

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30022iKDN185,KZN185,RZN185,VZN185¥1,850199511-200206

sub90366-30078¥2,200

main90366-30078iKDN185,RZN185,VZN185¥2,200200206

41211CGEAR, DIFFERENTIAL RING

main90201-35497iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35498iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35499iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35500iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35501iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35502iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35503iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35504iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35505iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35506iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35507iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35508iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35509iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35510iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35511iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35512iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35513iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35514iKDN185,KZN185,RZN185,VZN185¥180199511

main90201-35515iKDN185,KZN185,RZN185,VZN185¥120199511

main90201-35516iKDN185,KZN185,RZN185,VZN185¥120199511

main90201-35517iKDN185,KZN185,RZN185,VZN185¥120199511

main90201-35518iKDN185,KZN185,RZN185,VZN185¥120199511

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-35020iKDN185,KZN185,RZN185,VZN185¥410199511

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iKDN185,KZN185,RZN185,VZN185¥120199511

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35030iKDN185,KZN185,RZN185,VZN185¥120199511

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iKDN185,KZN185,RZN185,VZN185¥580199511

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-35030iKDN185,KZN185,RZN185,VZN185¥450199511

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41337-35020iKDN185,KZN185,RZN185,VZN185¥9,400199511

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main96152-00300iKDN185,KZN185,RZN185,VZN185¥80199511

41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)

main90903-63008iKDN185,KZN185,RZN185,VZN185¥2,790199511

41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90520-39023iKDN185,KZN185,RZN185,VZN185¥240199511

main90520-75002iKDN185,KZN185,RZN185,VZN185¥240199805

main90521-86002iKZN185,RZN185,VZN185¥350199511-199805

sub90520-75002¥240

41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER

main41306-35030iKDN185,KZN185,RZN185,VZN185¥10,200199511

41311CASE, FRONT DIFFERENTIAL

main41311-35060iKDN185,KZN185,RZN185,VZN185¥21,300199511

sub41311-34020¥24,400

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90368-50006iKDN185,KZN185,RZN185,VZN185¥2,940199511

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90564-50092iKDN185,KZN185,RZN185,VZN185¥450199511

main90564-50093iKDN185,KZN185,RZN185,VZN185¥450199511

main90564-50094iKDN185,KZN185,RZN185,VZN185¥460199511

main90564-50095iKDN185,KZN185,RZN185,VZN185¥460199511

main90564-50096iKDN185,KZN185,RZN185,VZN185¥460199511

main90564-50097iKDN185,KZN185,RZN185,VZN185¥480199511

main90564-50098iKDN185,KZN185,RZN185,VZN185¥480199511

main90564-50099iKDN185,KZN185,RZN185,VZN185¥500199511

main90564-50100iKDN185,KZN185,RZN185,VZN185¥500199511

main90564-50101iKDN185,KZN185,RZN185,VZN185¥500199511

main90564-50102iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50103iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50104iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50105iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50106iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50107iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50108iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50109iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50110iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50111iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50112iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50113iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50114iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50115iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50116iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50117iKDN185,KZN185,RZN185,VZN185¥510199511

main90564-50118iKDN185,KZN185,RZN185,VZN185¥510199511

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-35040iKDN185,KZN185,RZN185,VZN185¥13,300199511

41320ARING, O (FOR FRONT DIFFERENTIAL TUBE)

main90301-68003iKDN185,KZN185,RZN185,VZN185¥350199511

41331GBEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR)

main90364-33009iKDN185,KZN185,RZN185,VZN185¥1,650199511

41332BRING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT)

main90521-29002iKDN185,KZN185,RZN185,VZN185¥80199511

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iKDN185,KZN185,RZN185,VZN185¥160199511

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-22020iKZN185,RZN185,VZN185¥1,240199511-200005

sub41342-22021¥810

main41342-22021iKDN185,KZN185,RZN185,VZN185¥810200005

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30060iKDN185,KZN185,RZN185,VZN185¥140199511

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040iKDN185,KZN185,RZN185,VZN185¥240199511

main41361-30050iKDN185,KZN185,RZN185,VZN185¥240199511

main41361-30060iKDN185,KZN185,RZN185,VZN185¥240199511

main41361-30070iKDN185,KZN185,RZN185,VZN185¥240199511

41400ACTUATOR ASSY, DIFFERENTIAL VACUUM

main41400-34011iKDN185,RZN185,VZN185¥24,600200008-200102

sub41400-34012¥24,400

main41400-34012iKDN185,RZN185,VZN185¥24,400200102

sub41400-34013¥24,600

main41400-35020iKZN185,RZN185,VZN185¥12,600199511-200008

41433SLEEVE, DIFFERENTIAL CLUTCH

main41433-35010iKDN185,KZN185,RZN185,VZN185¥4,580199511

41434HUB, DIFFERENTIAL CLUTCH

main41434-35020iKDN185,KZN185,RZN185,VZN185¥1,970199511

sub41434-35021¥1,970

41435CASE, DIFFERENTIAL CLUTCH

main41435-35010iKDN185,KZN185,RZN185,VZN185¥5,400199511

sub41035-35010¥5,700

41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)

main90107-12001iKDN185,KZN185,RZN185,VZN185¥540199511

main90109-12029iKDN185,KZN185,RZN185,VZN185¥200199511

41436COVER, FRONT DIFFERENTIAL CLUTCH CASE

main41436-35020iKZN185,RZN185,VZN185¥3,990199511-200008

41436APLUG (FOR FRONT DIFFERENTIAL CLUTCH CASE)

main90341-10065iKZN185,RZN185,VZN185¥220199511-200008

41441APIN, SLOTTED SPRING (FOR DIFFERENTIAL SHIFT FORK)

main90254-05016iKZN185,RZN185,VZN185¥140199511-200008

41441BFORK, DIFFERENTIAL SHIFT

main41441-35010iKZN185,RZN185,VZN185¥3,170199511-200008

41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER

main41653-35030iKDN185,KZN185,RZN185,VZN185¥520199511

41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER

main41654-26010iKDN185,KZN185,RZN185,VZN185¥700199511

41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1

main41655-35010iKDN185,KZN185,RZN185,VZN185¥590199511

41993LABEL, DIFFERENTIAL OIL INFORMATION

main41993-35010iKDN185,KZN185,RZN185,VZN185¥130199511

4302

52380DSUPPORT ASSY, FRONT DIFFERENTIAL

main52380-35010iKDN185,KZN185,RZN185,VZN185¥4,280199511

52393ASUPPORT, FRONT DIFFERENTIAL, NO.2

main52380-35040iKDN185,KZN185,RZN185,VZN185¥7,100199511

main52380-35050iKDN185,KZN185,RZN185,VZN185¥7,200199511

8401

9010512272

main90105-12272¥180

9010514090

main90105-14090¥190

9011914057

main90119-14057¥780

9017914063

main90179-14063¥180

9151160820

main91511-60820¥130

60 parts on this diagram · 6 diagrams in section
