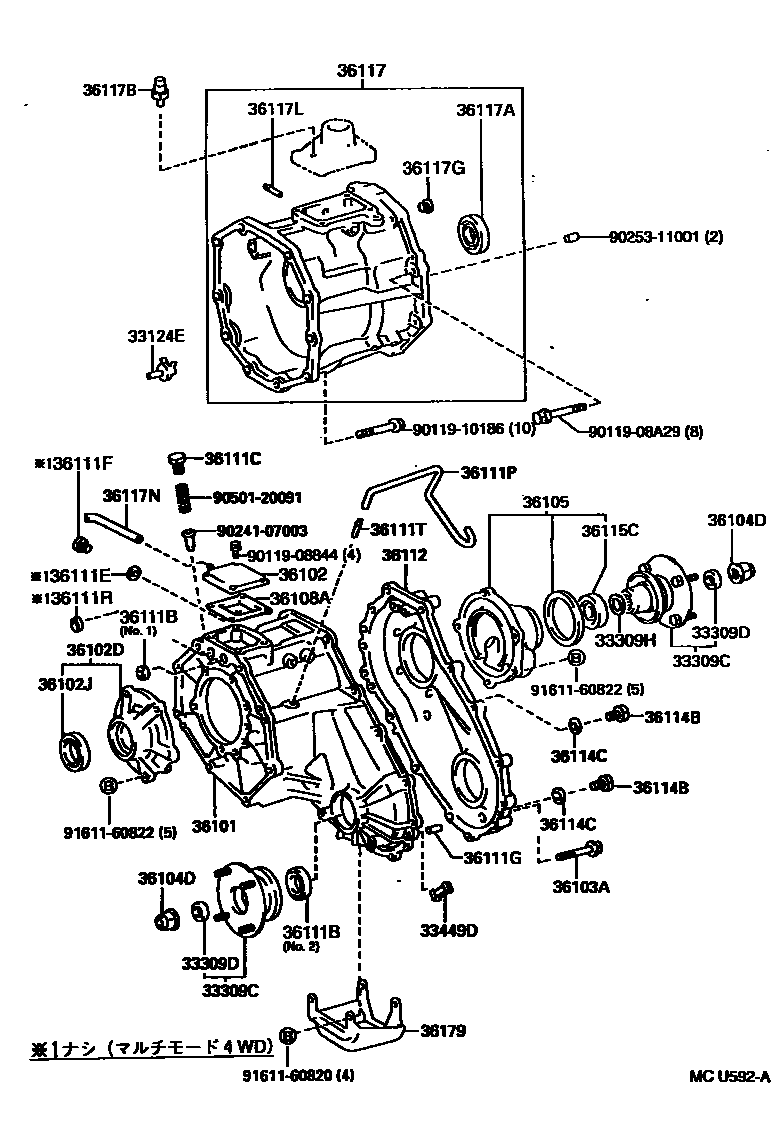

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33106-35020iRZN185..5F199511-200008

main33124-35100iKZN185..5F199511-200008

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35091iKDN185,KZN185,RZN185,VZN185199511

main33309-35100iKDN185,KZN185,RZN185,VZN185199511

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001×2iKDN185,KZN185,RZN185,VZN185199511

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35010×2iKDN185,KZN185,RZN185,VZN185199511

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iKDN185,KZN185,RZN185,VZN185199511

36101CASE SUB-ASSY, TRANSFER

main36111-35060iKZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)199511-199807

main36111-35070iKZN185..WIB..(SSRV,SSRX)199511-199708

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iRZN185..4FC;KDN185,KZN185199511

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35031iKDN185,KZN185,RZN185,VZN185199511-200106

main36102-35032iKDN185,RZN185,VZN185200106

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-40021iKDN185,KZN185,RZN185,VZN185199511

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28×12iKDN185,KZN185,RZN185,VZN185199511

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016×2iKDN185,KZN185,RZN185,VZN185199511

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-35040iKDN185,KZN185,RZN185,VZN185199511

36108ADEFLECTOR SUB-ASSY, BREATHER OIL

main36108-35030iKZN185;RZN185..4FC199511-199803

main36108-35031iRZN185..4FC;KDN185,KZN185199803-200208

main36108-35060iRZN185..WIB..5F199708-200008

main36108-35070iRZN185..5F199511-199807

main36128-35060iKDN185,RZN185200208

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008iVZN185;KZN185..SSRG;KZN185..SSRX..TDI199511-199807

main90311-41008iKDN185,KZN185,RZN185,VZN185199511-200207

main90311-41011iKDN185,RZN185,VZN185200207-200211

sub90311-41010

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iKDN185,KZN185,RZN185,VZN185199511

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iKZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)199511-199807

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iKZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)199511-199807

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×2iKDN185,KZN185,RZN185,VZN185199511

36111PHOSE, BREATHER (FOR TRANSFER CASE)

main90447-08108iKZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)199511-199807

main90447-08119iKZN185,VZN185..WIB199511-199708

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main90331-25005iKZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)199511-199807

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iKDN185,KZN185,RZN185,VZN185199511

36112CASE, TRANSFER, REAR

main36112-35050iKZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)199511-199807

main36112-35060iKZN185..WIB..(SSRV,SSRX)199511-199708

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006×2iKDN185,KZN185,RZN185,VZN185199511

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008×2iKDN185,KZN185,RZN185,VZN185199511

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iKDN185,KZN185,RZN185,VZN185199511

sub90311-41020

36117ADAPTER, TRANSFER

main36107-35170iRZN185..5F199511-200008

main36107-35200iKZN185..5F199511-200008

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-40007iKZN185,RZN185..5F199511-200008

36117BPLUG, BREATHER(FOR TRANSFER ADAPTER)

main90930-03075iKZN185..5F199511-200008

main90930-03114iRZN185..5F199511-200008

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-24006iKZN185..5F199511-200008

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iKDN185,KZN185,RZN185,VZN185199511

36117NHOSE(FOR TRANSFER ADAPTER)

main90447-08126iKZN185,RZN185..5F199511-200008

main90904-45005iKDN185,KZN185,RZN185,VZN185..4FC199511

36179PROTECTOR, TRANSFER CASE LOWER

main36179-35010iKDN185,KZN185,RZN185,VZN185199511

9011908844

main90119-08844

9011908A29

main90119-08A29

9011910186

main90119-10186

9024107003

main90241-07003

9025311001

main90253-11001

9050120091

main90501-20091

9161160820

main91611-60820

9161160822

main91611-60822
