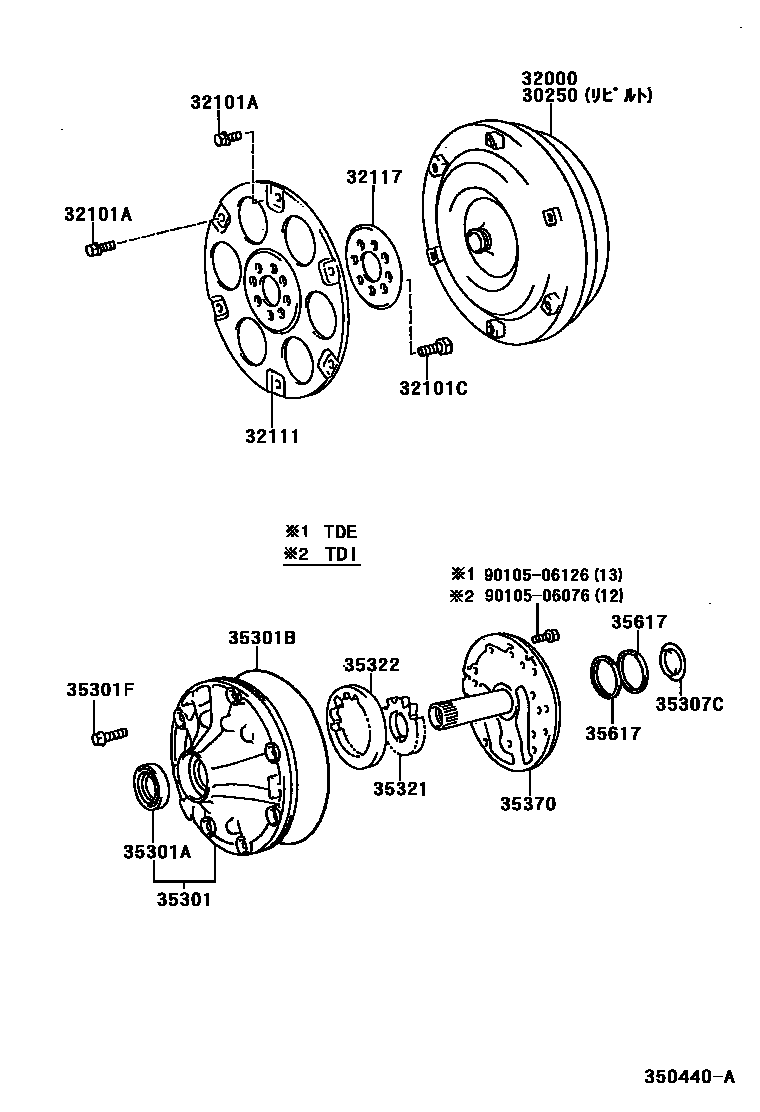

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A340F 0002 1A340E,A340F

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-26080iRZN18#200008

sub30250-60320

main30250-35150iVZN18#199511-200008

main30250-35160iRZN18#..4FC199511-200008

main30250-35170iKZN185..4FC..TDE199511-199807

main30250-35180iKZN185..TDI199607-199807

main30250-35190iKDN185,KZN185..4FC199807

main30250-60190iVZN185200008

32000CONVERTER ASSY, TORQUE

main32000-26080iRZN18#200008

sub32000-60320

main32000-35150iVZN18#199511-200008

main32000-35160iRZN18#..4FC199511-200008

main32000-35170iKZN185..4FC..TDE199511-199807

main32000-35180iKZN185..TDI199607-199807

main32000-35190iKDN185,KZN185..4FC199807

main32000-60190iVZN185200008

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iRZN18#..4FC199511

main32101-35010iVZN18#199511

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iKDN185,KZN185..4FC..(DCR,TDI)199607

main90105-10414iKDN185,KZN185..4FC..(DCR,TDI)199607

main90119-09009iKZN185,RZN18#,VZN18#..4FC..(EFI,TDE)199511

main90119-09010iKZN185,RZN18#,VZN18#..4FC..(EFI,TDE)199511

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iVZN18#199511

main90105-10276iRZN18#..4FC199511

main90105-13010iKDN185,KZN185..4FC199511

32111PLATE, PUMP IMPELLER DRIVE

main32111-35030iKDN185,KZN185..4FC..(DCR,TDI)199607

sub32111-60080

main32111-60050iKZN185..4FC..TDE199511-199807

32117SPACER, DRIVE PLATE, REAR

main32117-26010iRZN18#..4FC199511

main32117-32020iVZN18#199511

main32117-60050iKDN185,KZN185..4FC199511

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30040iKZN185,RZN18#,VZN18#..4FC199511-200008

main35301-35010iKDN185,RZN18#,VZN185200008

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38029iKDN185,KZN185,RZN18#,VZN18#..4FC199511

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iKDN185,KZN185,RZN18#,VZN18#..4FC199511

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iKDN185,KZN185,RZN18#,VZN18#..4FC199511

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30020iKZN185,RZN18#,VZN18#..4FC199511-199906

sub35789-30340

main35789-30340iKDN185,KZN185,RZN18#,VZN18#..4FC199906

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iKDN185,RZN18#,VZN185200008

main35321-12030iKDN185,RZN18#,VZN185200008

main35321-12040iKDN185,RZN18#,VZN185200008

main35321-12050iKDN185,RZN18#,VZN185200008

main35321-12060iKDN185,RZN18#,VZN185200008

main35321-12070iKZN185,RZN18#,VZN18#..4FC199511-200008

main35321-12080iKZN185,RZN18#,VZN18#..4FC199511-200008

main35321-12090iKZN185,RZN18#,VZN18#..4FC199511-200008

main35321-12100iKZN185,RZN18#,VZN18#..4FC199511-200008

main35321-12110iKZN185,RZN18#,VZN18#..4FC199511-200008

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iKDN185,RZN18#,VZN185200008

main35322-12020iKDN185,RZN18#,VZN185200008

main35322-12030iKDN185,RZN18#,VZN185200008

main35322-12040iKDN185,RZN18#,VZN185200008

main35322-12050iKDN185,RZN18#,VZN185200008

main35322-12060iKZN185,RZN18#,VZN18#..4FC199511-200008

main35322-12070iKZN185,RZN18#,VZN18#..4FC199511-200008

main35322-12080iKZN185,RZN18#,VZN18#..4FC199511-200008

main35322-12090iKZN185,RZN18#,VZN18#..4FC199511-200008

main35322-12100iKZN185,RZN18#,VZN18#..4FC199511-200008

35370SHAFT ASSY, STATOR

main35370-30031iKDN185,KZN185,RZN18#,VZN18#..4FC199511

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020iKDN185,KZN185,RZN18#,VZN18#..4FC199511

9010506076

main90105-06076

9010506126

main90105-06126

18 parts on this diagram · 2 diagrams in section
