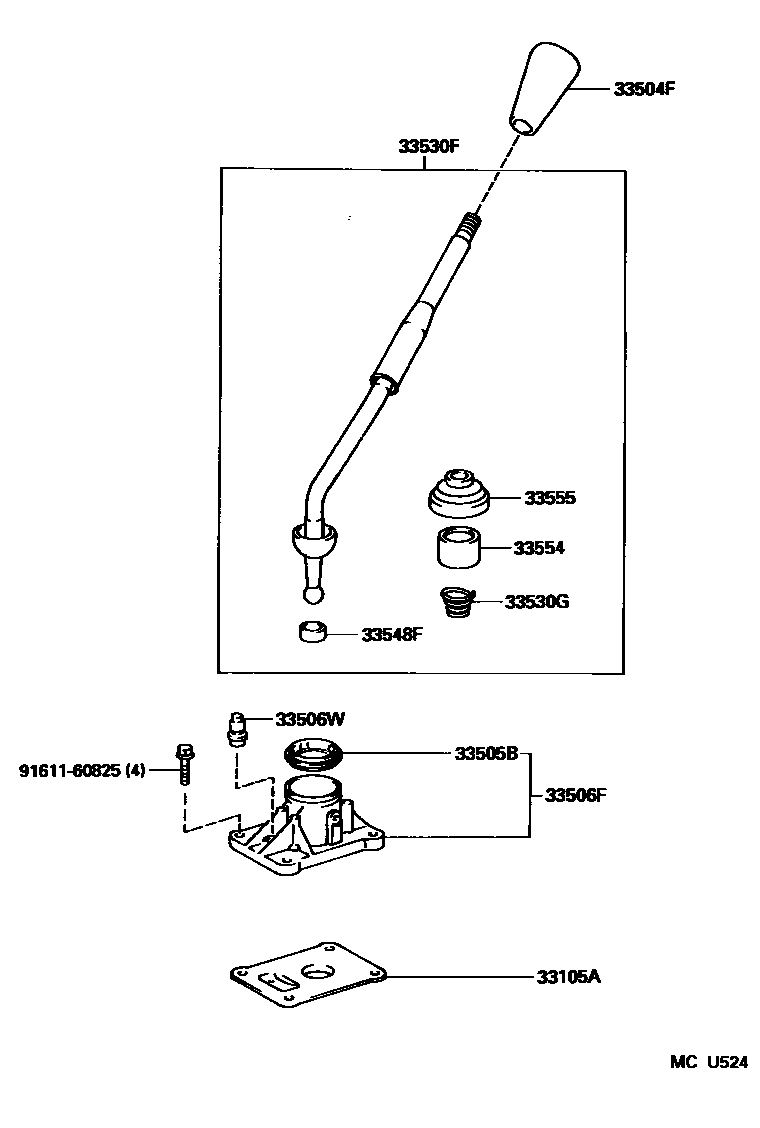

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0005 1

33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)

main33105-35030iRZN185..5F199511-200008

main33144-35030iKZN185..5F199511-200008

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20100-C0iKZN185,RZN185..5F..(SSR,SSRV,SSRX)199511-200008

BLACK,TRIM1#

sub33504-24010

sub33504-20100

main33504-20100-C0iKZN185,RZN185..SSR199708-200008

BLACK,TRIM1#,4#

sub33504-24010

sub33504-20100

main33504-20120-C0iKZN185..5F..SSRG199511-199708

BLACK,TRIM1#

sub33504-20120

main33542-20100-C0iRZN180,VZN180199807-200008

BLACK,TRIM1#,4#

sub33542-20100

main33542-35170-C0iKZN185,RZN185..NOB..SSRX199511-199906

BLACK,TRIM1#

sub33542-35170

main33542-35170-C0iKZN185,RZN185,VZN185..4FC199708-199906

BLACK,TRIM1#,4#

sub33542-35170

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35020iRZN185..5F199511-200008

main33505-35030iKZN185..5F199511-200008

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-35110iKZN185..5F199511-199608

main33506-35130iRZN185..5F199511-200008

sub33506-35180

sub33144-60050

main33506-35140iKZN185..5F199608-200008

33506WPLUG, BREATHER (FOR SHIFT LEVER RETAINER)

main90930-03075iKZN185..5F199511-200008

main90930-03114iRZN185..5F199511-200008

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-35280iKZN185..5F199511-199608

sub33530-35320

sub33506-35140

main33530-35300iRZN185..5F199511-200008

main33530-35320iKZN185..5F199608-200008

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26005iKZN185..5F199511-200008

main90502-26007iRZN185..5F199511-200008

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iKZN185,RZN185..5F199511-200008

33554CAP, SHIFT LEVER

main33554-30012iKZN185,RZN185..5F199511-200008

33555BOOT, SHIFT LEVER

main33555-35160iKZN185,RZN185,VZN185..4FC199511-200008

main33555-35180iRZN180,VZN180199807-200008

main33555-60030iKZN185,RZN185..5F199511-200008

9161160825

main91611-60825

11 parts on this diagram · 4 diagrams in section
