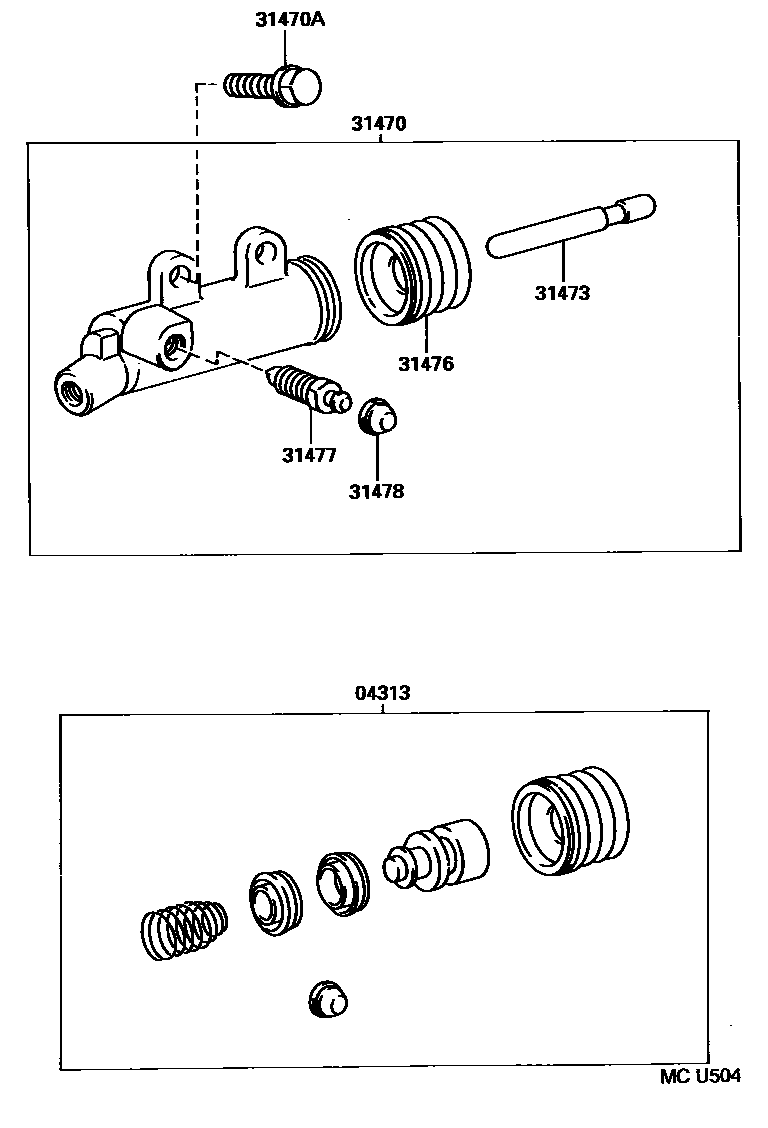

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iRZN185..5F199511-200008

main04313-18020iKZN185..5F199511-200008

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35130iRZN185..5F199511-200008

sub31470-43010

main31470-35140iKZN185..5F199511-200008

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820×2iKZN185..5F199809-200008

sub91611-G0820

main91611-60825×2iRZN185..5F199809-200008

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iRZN185..5F199511-200008

main31473-60141iKZN185..5F199511-200008

sub31473-60142

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKZN185,RZN185..5F199511-200008

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKZN185,RZN185..5F199511-200008

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKZN185,RZN185..5F199511-200008

7 parts on this diagram · 2 diagrams in section
