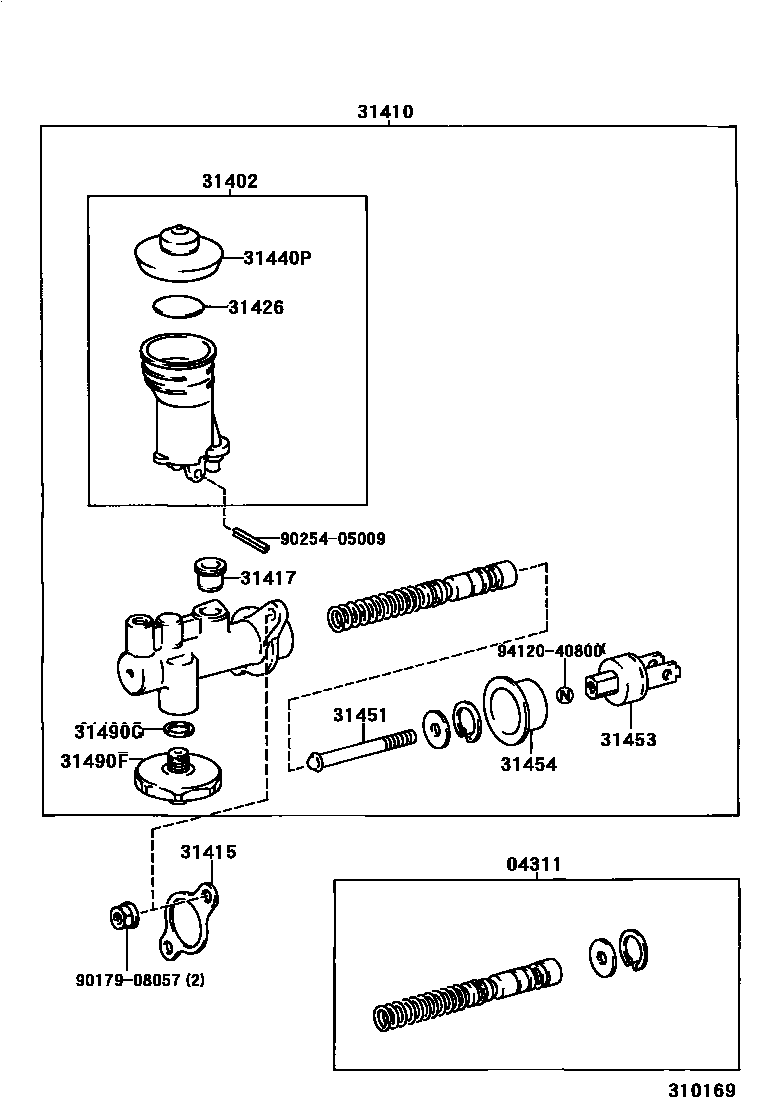

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iKZN185..5F199511-200008

main04311-60150iRZN185..5F199511-199710

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35120iKZN185,RZN185..5F..(EFI,TDE)199511-200008

main31402-60070iKZN185..5F199807-200008

31410CYLINDER ASSY, CLUTCH MASTER

main31410-35310iRZN185..5F199511-200008

main31410-35320iKZN185..5F199511-199604

main31410-60560iKZN185..5F199807-200008

main31410-60570iKZN185..5F199604-199702

sub31410-60571

main31410-60571iKZN185..5F199702-199807

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iKZN185,RZN185..5F199511-200008

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iKZN185,RZN185..5F199511-200008

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iKZN185,RZN185..5F199511-200008

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iKZN185,RZN185..5F199511-200008

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35080iKZN185..5F199702-199807

main31451-36040iKZN185,RZN185..5F..(EFI,TDI)199511-200008

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iKZN185..5F199702-199807

main31404-35011iKZN185,RZN185..5F..(EFI,TDI)199511-200008

sub31404-35013

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iKZN185,RZN185..5F199511-200008

31490FACCUMULATOR ASSY, MASTER CYLINDER

main31490-60090iKZN185..5F199511-200008

sub31490-60091

main31490-60100iKZN185..5F199604-199807

sub31490-60101

31490GGASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)

main90430-16005iKZN185..5F199511-200008

9017908057

main90179-08057

9025405009

main90254-05009

9412040800

main94120-40800

15 parts on this diagram · 2 diagrams in section
