EPC Data

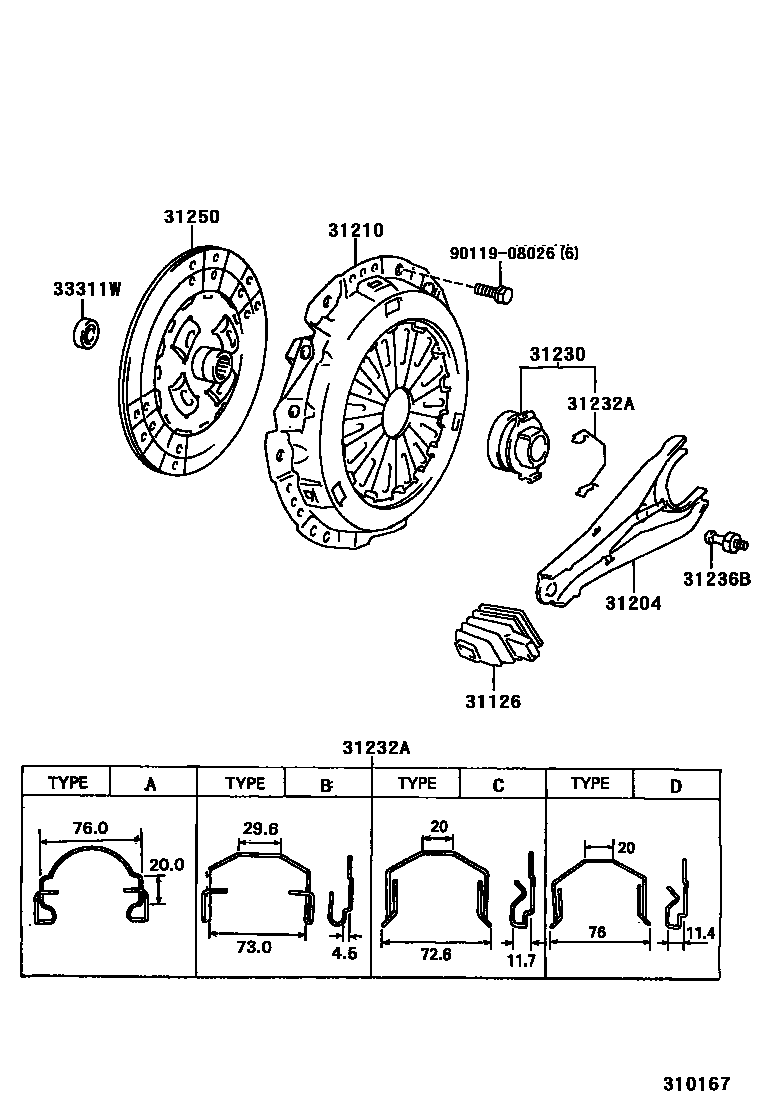

CLUTCH & RELEASE FORK

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-26020i199511-200008
main31126-60080i199511-200008
sub31126-60081
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-20071i199511-200008
main31204-60090i199511-200008
31210COVER ASSY, CLUTCH
main31210-35200i199511-200008
sub31210-26170
main31210-60170i199511-199603
sub31210-60171
main31210-60180i199807-200008
sub31210-60181
main31210-60190i199603-199807
sub31210-60191
31230BEARING ASSY, CLUTCH RELEASE
main31230-35090i199511-200008
sub31230-35091
main31230-60170i199511-200008
31232ACLIP, RELEASE BEARING HUB
main31232-35020i199511-200008
main31232-35040i199511-200008
main31232-36030i199511-200008
main31232-60030i199511-200008
31236BSUPPORT, RELEASE FORK
main31236-30060i199511-200008
main31236-60060i199511-200008
31250DISC ASSY, CLUTCH
main31250-34010i199511-199708
main31250-35330i199511-199603
main31250-35331i199603-199701
main31250-35332i199701-200008
sub31250-35333
main31250-35400i199708-200008
sub31250-26230
33311WBEARING (FOR INPUT SHAFT)
main90363-12002i199511-200006
sub90363-12024
main90363-12018i200006-200008
main90363-12020i200006-200008
9011908026
main90119-08026

9 parts on this diagram · 1 diagram in section
