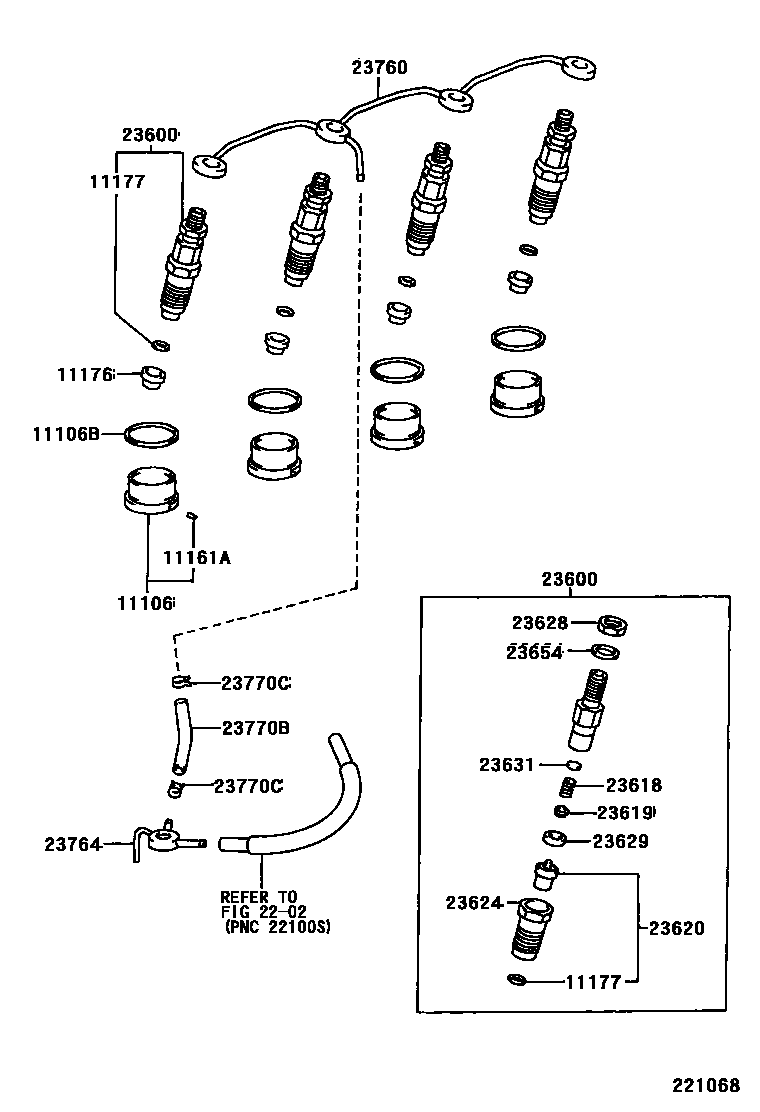

INJECTION NOZZLE
11106BSHIM(FOR COMBUSTION CHAMBER)
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
11177GASKET, INJECTION NOZZLE SEAT
2202
23600HOLDER & NOZZLE SET, NOZZLE
23618SPRING, NOZZLE HOLDER PRESSURE
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23764PIPE, NOZZLE LEAKAGE, NO.4
23770BHOSE, FUEL
20 parts on this diagram · 2 diagrams in section
