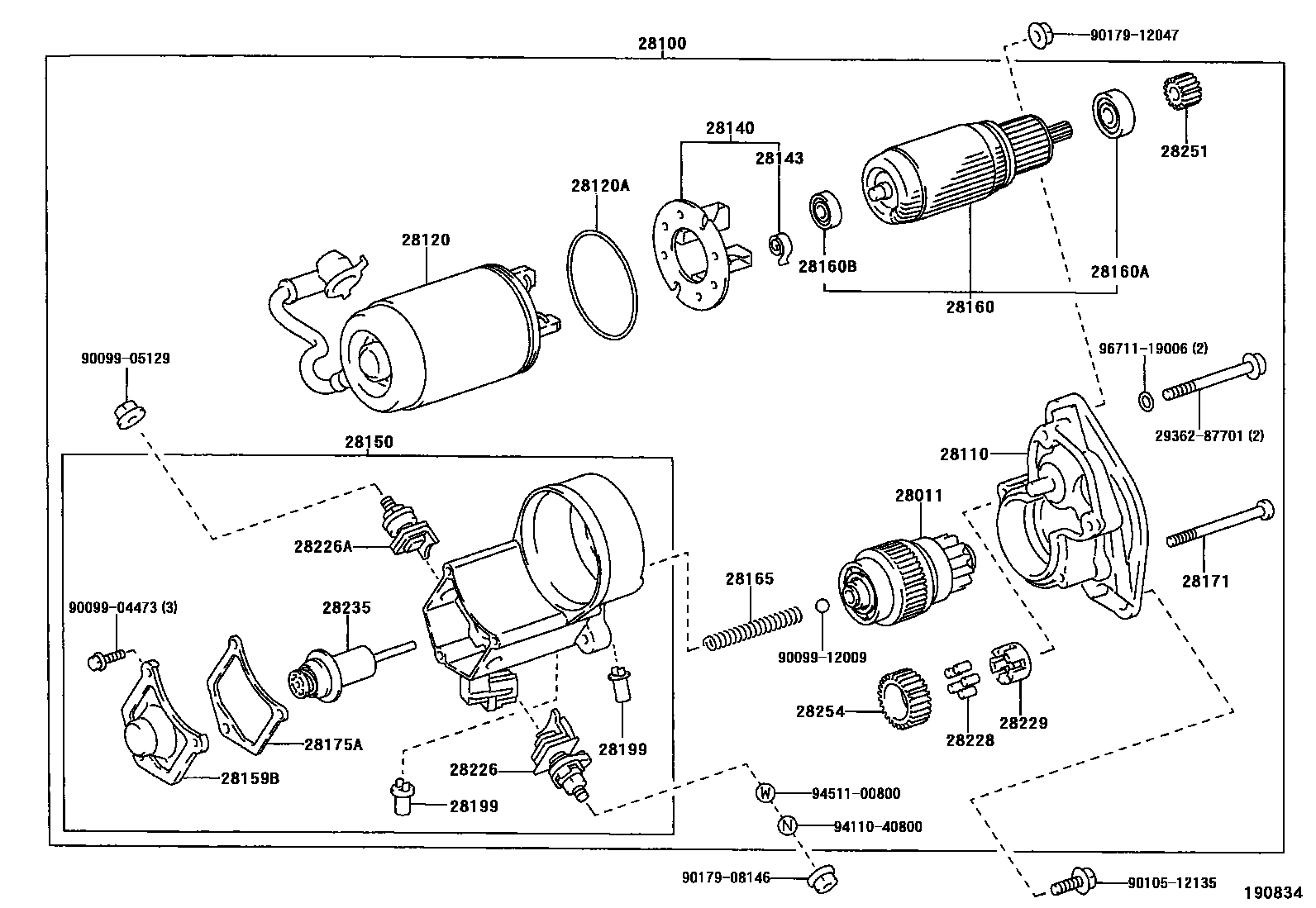

STARTER

0001 112V 2.2KW 0002 112V 2.7KW 0003 112V 1.2KW,1.4KW 0004 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-67020i1KZTE..KZN185199511-200008

12V 2.7KW

main28011-67030i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28011-76070i3RZFE,5VZFE..RZN18#,VZN18#199511

28100STARTER ASSY

main28100-62050i5VZFE..VZN18#199511

main28100-67050i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

sub28100-67051

main28100-67070i1K#..KDN185,KZN185199511

sub28100-30050

main28100-75090i3RZFE..RZN18#..4FC199511

sub28100-75091

main28100-75130i3RZFE..RZN18#..SPR,SSR,SSRV,SSRX199511

28110HOUSING ASSY, STARTER DRIVE

main28110-62050i5VZFE..VZN18#199511

main28110-67040i1KZTE..KZN185199511-200008

12V 2.7KW

main28110-67050i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28110-75090i3RZFE..RZN18#199511

28120YOKE ASSY, STARTER

main28120-16180i3RZFE..RZN18#..SPR,SSR,SSRV,SSRX199511

12V 1.2KW

main28120-64040i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28120-66040i3RZFE,5VZFE..RZN18#,VZN18#..4FC199511

12V 1.4KW

main28120-67020i1KZTE..KZN185199511-200008

12V 2.7KW

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i3RZFE,5VZFE..RZN18#,VZN18#199511

main90099-64040i1KZTE..KZN185..5F199807-200008

28140HOLDER ASSY, STARTER BRUSH

main28140-35060i5VZFE..VZN18#199511

main28140-64040i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28140-76060i3RZFE..RZN18#..SPR,SSR,SSRV,SSRX199511

12V 1.2KW

main28140-76070i3RZFE..RZN18#..4FC199511

12V 1.4KW

main28140-77090i1KZTE..KZN185199511-200008

12V 2.7KW

28143SPRING, STARTER BRUSH

main28143-76060×4i3RZFE..RZN18#..SPR,SSR,SSRV,SSRX199511

12V 1.2KW

main90099-17112×4i3RZFE,5VZFE..RZN18#,VZN18#..4FC199511

12V 1.4KW

main90099-17115×4i1KZTE..KZN185..5F199807-200008

28150SWITCH ASSY, MAGNET STARTER

main28150-62050i5VZFE..VZN18#199511

main28150-67050i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28150-67070i1KZTE..KZN185199511-200008

12V 2.7KW

main28150-75130i3RZFE..RZN18#199511

28159BCOVER, MAGNET SWITCH

main28159-10040i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28159-17030i1KZTE..KZN185199511-200008

12V 2.7KW

main28159-55050i3RZFE,5VZFE..RZN18#,VZN18#199511

28160ARMATURE ASSY, STARTER

main28160-54140i1KZTE..KZN185199511-200008

12V 2.7KW

main28160-64041i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28160-74070i3RZFE,5VZFE..RZN18#,VZN18#..4FC199511

12V 1.4KW

main28160-76060i3RZFE..RZN18#..SPR,SSR,SSRV,SSRX199511

12V 1.2KW

28160ABEARING, STARTER ARMATURE

main90099-10119i1KZTE..KZN185199511-200008

12V 2.7KW

main90099-10143i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main90099-10197i3RZFE,5VZFE..RZN18#,VZN18#199511

28160BBEARING, STARTER ARMATURE, NO.2

main28253-54070i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main90099-10107i1KDFTV..KDN185200008

main90099-10196i3RZFE,5VZFE..RZN18#,VZN18#199511

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28165-76070i3RZFE,5VZFE..RZN18#,VZN18#199511

main28165-77090i1KZTE..KZN185199511-200008

12V 2.7KW

28171BOLT, STARTER

main28171-50020×3i1KZTE..KZN185199511-200008

12V 2.7KW

main28171-87702×2i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28175-55050i3RZFE,5VZFE..RZN18#,VZN18#199511

main28175-56310i1KDFTV..KDN185200008

28199COVER, STARTER

main28199-46080i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

28226STARTER KIT, BATTERY TERMINAL

main28226-22050i3RZFE..RZN18#200008

main28226-54320i1KZTE..KZN185199511-200008

12V 2.7KW

main28226-64200i5VZFE..VZN185200008

main28226-76100i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54220i1KZTE..KZN185199511-200008

12V 2.7KW

main28226-72010i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28226-74070i3RZFE,5VZFE..RZN18#,VZN18#199511

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i3RZFE..RZN185;1KZTE..KZN185..5F..(SSR,SSRV,SSRX);3RZFE,5VZFE..RZN180,VZN18#..SPR,SSRG,SSRX199511

12V 2.2KW

main28228-56080×5i1KZTE..KZN185199511-200008

12V 2.7KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28229-56080i1KZTE..KZN185199511-200008

12V 2.7KW

main28229-74070i3RZFE,5VZFE..RZN18#,VZN18#199511

28235PLUNGER, MAGNET SWITCH

main28235-17030i1KZTE..KZN185199511-200008

12V 2.7KW

main28235-35080i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28235-55050i3RZFE,5VZFE..RZN18#,VZN18#199511

28251PINION, STARTER DRIVE

main28251-54070i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

28254PINION, STARTER IDLE GEAR

main28254-64040i1KZTE..KZN185..5F..(SSR,SSRV,SSRX)199511-200008

12V 2.2KW

main28254-74070i3RZFE,5VZFE..RZN18#,VZN18#199511

main28254-77090i1KZTE..KZN185199511-200008

12V 2.7KW

2936287701

main29362-87701

9009904473

main90099-04473

9009905129

main90099-05129

9009912009

main90099-12009

9010512135

main90105-12135

9017908146

main90179-08146

9017912047

main90179-12047

9411040800

main94110-40800

9451100800

main94511-00800

9671119006

main96711-19006

33 parts on this diagram · 4 diagrams in section
