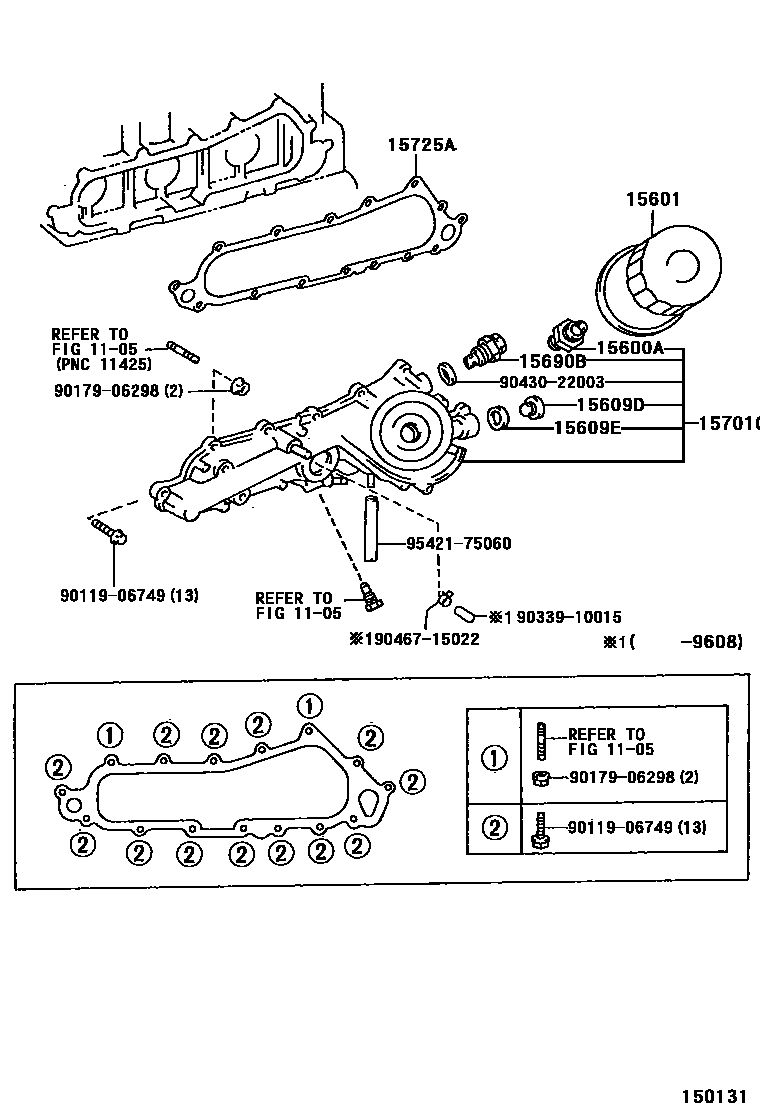

OIL FILTER

0001 1 0002 1 0003 1 0004 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54021i1KZTE..KZN185199511-200008

main90404-19013i5VZFE..VZN18#199511

main90404-19017i3RZFE..RZN18#199511

15601FILTER SUB-ASSY, OIL

main90915-20001i5VZFE..VZN18#199511-199908

sub90915-20003

main90915-20003i5VZFE..VZN18#199908

sub90915-20005

main90915-30002i1K#..KDN185,KZN185199511

15609BRACKET SUB-ASSY, OIL FILTER

main15609-75030i3RZFE..RZN18#199511

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i1KZTE..KZN185199511-200008

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KZTE..KZN185199511-200008

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i1KZTE..KZN185199511-200008

sub15690-64011

15701CCOVER SUB-ASSY, OIL COOLER

main15701-30010i1KDFTV..KDN185200008

main15701-67020i1KZTE..KZN185199511-199608

main15701-67030i1KZTE..KZN185199608-200008

sub15701-67031

sub95420-06052

sub95421-06060

15725AGASKET, OIL COOLER COVER

main15725-67010i1K#..KDN185,KZN185199511

9011906749

main90119-06749

9017906298

main90179-06298

9033910015

main90339-10015

9043022003

main90430-22003

9046715022

main90467-15022

9542175060

main95421-75060

15 parts on this diagram · 4 diagrams in section
