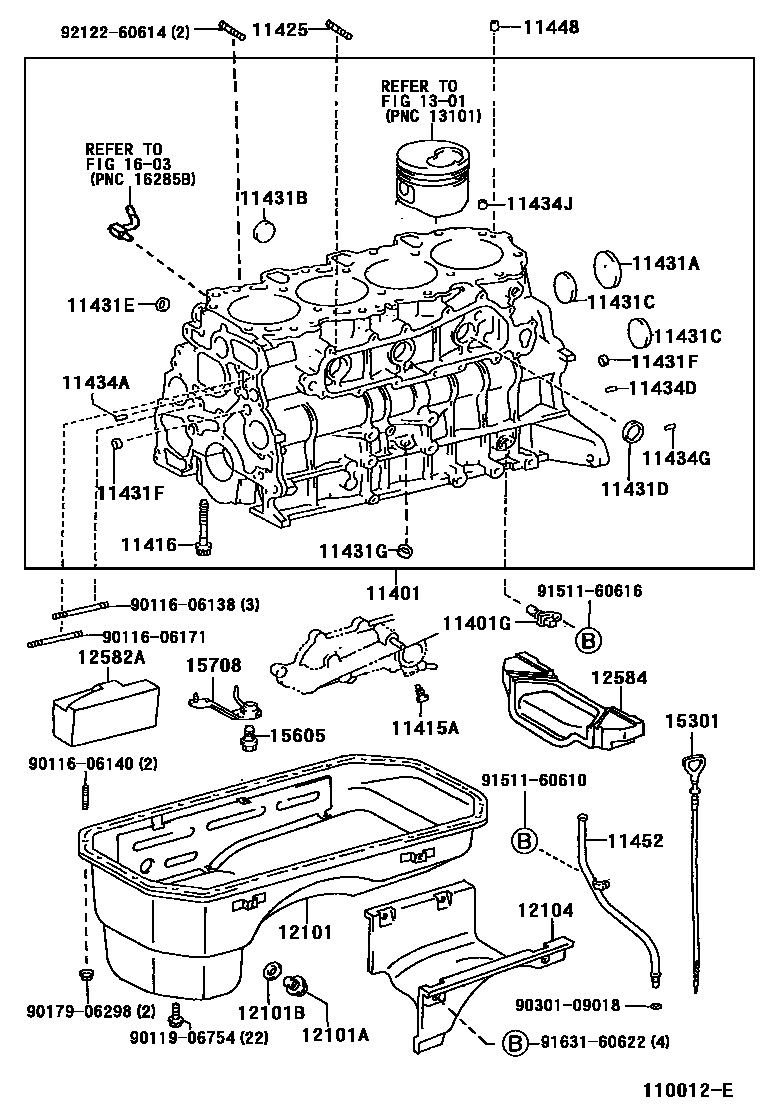

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-39525i1KDFTV..KDN185200008-200109

sub11401-39526

sub15708-30010

main11401-39526i1KDFTV..KDN185200109-200202

sub11401-39527

main11401-39527i1KDFTV..KDN185200202

sub11401-39705

main11401-69575i5VZFE..VZN185199511-199608

sub11401-69576

main11401-69576i5VZFE..VZN185199608-199705

sub11401-69577

main11401-69577i5VZFE..VZN18#199705-199901

main11401-69605i1KZTE..KZN185199511-199604

sub11401-69606

main11401-69606i1KZTE..KZN185199604-199608

sub11401-69705

main11401-69705i1KZTE..KZN185199608-199807

sub11401-69706

main11401-69835i1KZTE..KZN185199807-199912

sub11401-69836

main11401-69836i1KZTE..KZN185199912-200005

sub11401-69837

sub32909-26150

sub32921-26300

sub32921-26310

sub32922-26290

sub32922-26300

sub82715-26161

sub82729-26080

sub91162-61216

sub91162-61220

sub91619-61216

sub91619-61250

sub94130-61200

main11401-69837i1KZTE..KZN185200005-200008

sub11401-69838

sub15708-30010

main11401-69865i5VZFE..VZN18#199901-200008

main11401-69875i5VZFE..VZN185200008

main11401-79685i3RZFE..RZN18#199511-199904

sub11401-79686

main11401-79686i3RZFE..RZN18#199904

sub11401-79687

11401GSENSOR, CRANK POSITION

main90919-05005i1KZTE..KZN185199511-200008

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-52001i3RZFE..RZN18#199511-199905

main90910-09118i3RZFE..RZN18#199905

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1KZTE..KZN185199511-200008

main96431-23814i5VZFE..VZN18#199511

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02072i5VZFE..VZN18#199511

sub90910-02176

main90910-02092i3RZFE..RZN18#199511

sub90910-02179

main90910-02113i1K#..KDN185,KZN185199511

11425BOLT, STUD(FOR OIL FILTER)

main90116-06141i1KZTE..KZN185199511-199905

sub90116-06171

main90116-06171i1K#..KDN185,KZN185199905

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-35005i5VZFE..VZN18#199511

main96411-63000i3RZFE..RZN18#199511

main96411-64500i1K#..KDN185,KZN185199511

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-63500i1K#..KDN185,KZN185199511

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-64000i1K#..KDN185,KZN185199511

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90331-35004i1K#..KDN185,KZN185199511

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-62000i1K#..KDN185,KZN185199511

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main96411-61800i1K#..KDN185,KZN185199511

11431GPLUG, TIGHT

main90331-14006i1K#..KDN185,KZN185199603

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i1K#..KDN185,KZN185199511

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3RZFE..RZN18#199511

main90250-06015i5VZFE..VZN18#199511

main90250-06068i1K#..KDN185,KZN185199511

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10192i1K#..KDN185,KZN185199511

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15016i1K#..KDN185,KZN185199511

main90253-16001i5VZFE..VZN18#199511

11448ORIFICE, CYLINDER BLOCK OIL

main11448-67010i1K#..KDN185,KZN185199511

main90977-02011i3RZFE..RZN18#199511

11452GUIDE, OIL LEVEL GAGE

main11409-75040i3RZFE..RZN18#199511-199902

sub11409-75041

main11409-75041i3RZFE..RZN18#199902

main11452-30010i1KDFTV..KDN185200008

main11452-62050i5VZFE..VZN18#199511

main11452-67030i1KZTE..KZN185199511-200008

12101PAN SUB-ASSY, OIL

main12101-62070i5VZFE..VZN18#199511

main12101-67110i1KZTE..KZN185199511-199807

main12101-67120i1K#..KDN185,KZN185199807

main12101-75050i3RZFE..RZN18#199511

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1K#..KDN185,KZN185199511-200211

main90341-12026i3RZFE..RZN18#199511-200008

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1K#..KDN185,KZN185199511

12104COVER SUB-ASSY, OIL PAN, NO.1

main12104-67010i1K#..KDN185,KZN185199511

12582AINSULATOR, CYLINDER BLOCK, NO.2

main12582-67010i1KZTE..KZN185199511-200008

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-30010i1KDFTV..KDN185200008

main12584-67060i1KZTE..KZN185199511-200008

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-62070i5VZFE..VZN18#199511

main15301-67030i1KZTE..KZN185199511-199612

sub15301-67031

main15301-67031i1K#..KDN185,KZN185199612

main15301-75060i3RZFE..RZN18#199511

15605VALVE SUB-ASSY, OIL CHECK

main15605-17030i1KDFTV..KDN185200008

main15605-54010i1KZTE..KZN185199511-200008

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-30010i1KDFTV..KDN185200107

sub15708-30011

main15708-67010i1K#..KDN185,KZN185199511-200107

sub15708-30010

1603

9011606138

main90116-06138

9011606140

main90116-06140

9011606171

main90116-06171

9011906754

main90119-06754

9017906298

main90179-06298

9030109018

main90301-09018

9151160610

main91511-60610

9151160616

main91511-60616

9163160622

main91631-60622

9212260614

main92122-60614

40 parts on this diagram · 4 diagrams in section
