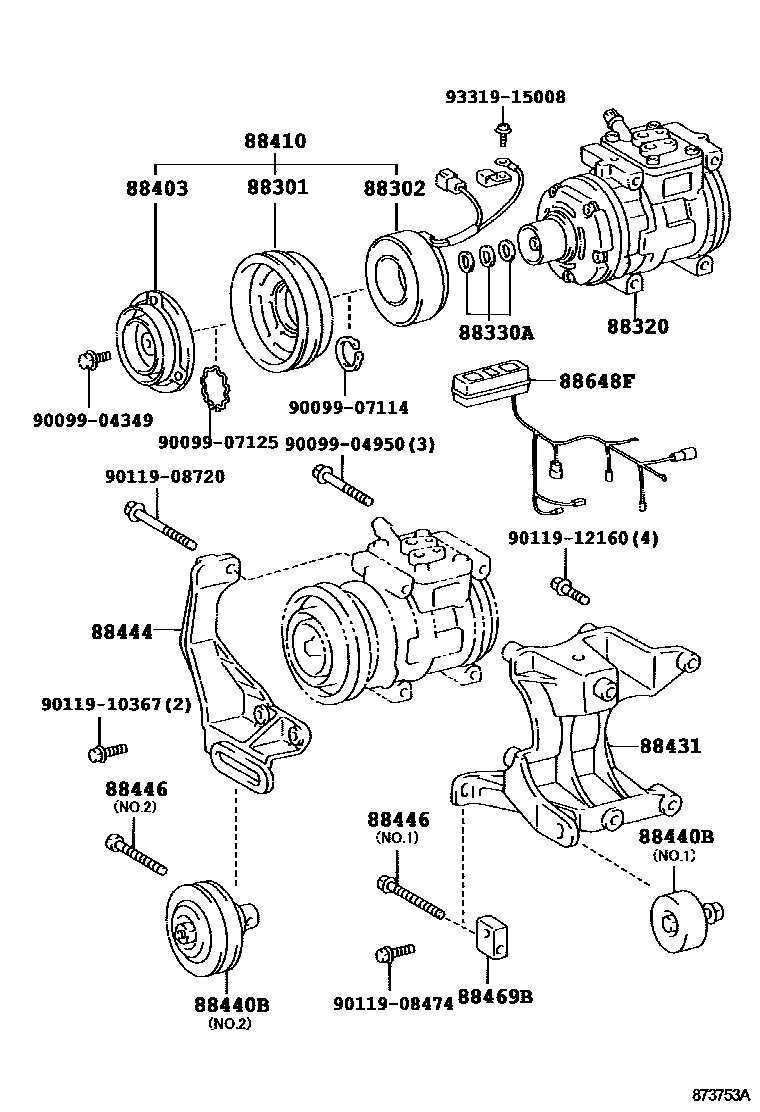

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-26030iLN130..SSRX;KZN130,LN131199111-199511

main88412-27010iLN8#199008-199108

main88412-30430iLN10#,112,80,85199401-199708

sub88412-2A060

main88412-35010iVZN130199008-199511

main88412-35030iYN10#,8#199108-199408

main88412-35040iYN130198904-199008

main88412-35100iLN8#,YN107,8#199408-199708

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iKZN130,LN10#,112,8#,YN10#,8#199401-199708

sub88411-2A030

main88411-2B080iLN13#,YN10#,8#199108-199111

main88411-35020iYN130198904-199008

sub88411-30540

main88411-35040iVZN130199008-199308

main88411-35140iVZN130199308-199511

main88411-3A010iLN8#199008-199108

88320COMPRESSOR ASSY, COOLER

main88320-35250iLN10#,8#198809-199401

sub88320-35H91

main88320-35260iYN10#,8#198809-199401

sub88320-35H91

main88320-35370iLN130..4FC199106-199108

main88320-35371iLN13#..5F199106-199108

sub88320-22H91

main88320-35380iYN130198904-199108

sub88320-35381

main88320-35400iVZN130199008-199308

main88320-35420iKZN130199308-199511

sub88320-26H91

main88320-35460iVZN130199308-199511

sub88320-35H92

main88320-35490iLN10#,8#199401-199408

main88320-35560iLN106,107,109,8#,YN107,8#199408-199708

sub88320-35H92

main88320-35580iLN108,112199508-199708

sub88320-35H92

main88320-60620iYN10#,8#199401-199408

sub88320-35H92

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iVZN130199008-199208

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iYN8#;LN85,YN10#..4FC,5F199308-199401

main88403-30290iKZN130,VZN130199308-199401

88410CLUTCH ASSY, MAGNET

main88410-22480iLN10#,112,8#199401-199708

main88410-35040iLN10#,8#199008-199108

main88410-35050iYN10#,8#199008-199108

main88410-35110iVZN130199008-199308

main88410-35120iYN10#,8#199108-199401

main88410-35140iYN130198904-199008

main88410-35160iLN13#198904-199108

main88410-35250iKZN130199308-199511

main88410-35280iVZN130199308-199511

main88410-35350iYN107,8#199408-199708

main88410-60200iLN13#..SR,SSRX199111-199308

main88410-60310iYN10#,8#199401-199408

main88410-90P80iLN10#,8#199108-199401

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-35160iYN10#,130,8#198809-199708

main88431-35170iLN10#,13#,8#198809-199008

main88431-35181iVZN130199008-199511

main88431-60180iLN130..SSR199111-199308

main88431-60220iKZN130199308-199511

88440BPULLEY ASSY, IDLE

main88440-26070iLN10#,13#,8#198809-199111

main88440-35030iLN10#,13#,8#198809-199008

main88440-35040iVZN130,YN10#,130,8#198809-199708

sub88440-35020

main88440-60040iLN13#199008-199108

main88440-60050iKZN130199308-199511

88444BRACKET, IDLE PULLEY

main88444-35050iLN100,106,107,109,8#199008-199708

main88444-60070iLN130..SSR199111-199308

88446BOLT, IDLE PULLEY

main88446-35030iVZN130,YN10#,130,8#198809-199708

main88446-35040iLN130..SSR199111-199308

main88446-60020iLN108,112199508-199708

main88446-60030iLN13#199008-199108

main88446-60040iKZN130199308-199511

main90099-04321iLN10#,13#,8#198809-199008

88469BCOLLAR

main88469-30280iLN130..SSRX;LN10#,112,131,8#199111-199708

88648FWIRE, MAGNET CLUTCH

main88648-35020iLN130..5F199108-199308

main88648-35030iVZN130199108-199308

main88648-35050iLN131199108-199308

main88648-35090iLN100,106,107,109,8#199108-199708

main88648-35120iLN130..4FC199108-199308

main88648-35130iVZN130199308-199511

main88648-35180iKZN130199308-199511

main88648-35220iLN108,112199508-199708

main88648-89128iLN10#,8#198809-199108

main88648-89130iYN130..4FC198908-199008

main88648-89132iLN131198904-199108

main88648-89135iLN130198904-199008

main88648-89137iYN130198904-198908

main88648-89139iVZN130199008-199108

main88648-89142iLN130..4FC199008-199108

main88648-89143iLN130..5F199008-199108

9009904349

main90099-04349

9009904950

main90099-04950

9009907114

main90099-07114

9009907125

main90099-07125

9011908474

main90119-08474

9011908720

main90119-08720

9011910367

main90119-10367

9011912160

main90119-12160

9331915008

main93319-15008

21 parts on this diagram · 4 diagrams in section
