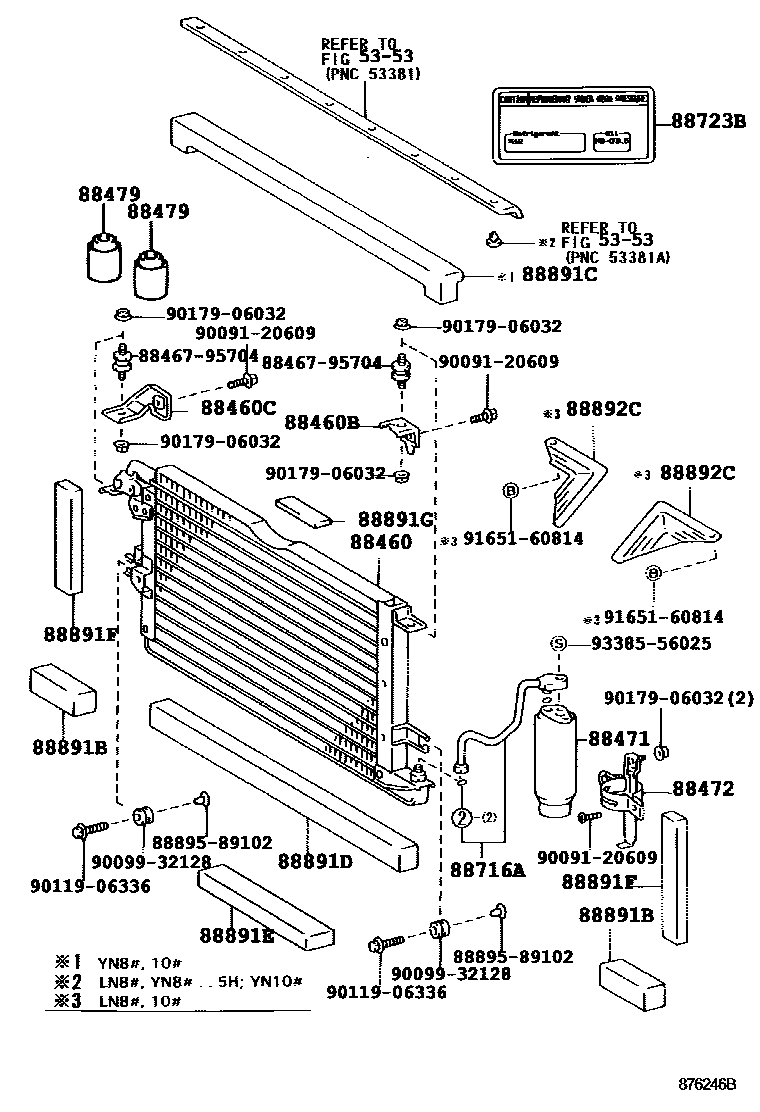

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1������ & ��-�� 0002 1���� ASSY,������ & ��-�� 0005 1���� ASSY,������ & ��-�� 0006 1��-��,���� & ������ ������� �0007 1���� ASSY & ������ 0008 1���� ASSY,������ & ��-�� 0009 1�-� & ����� 0010 1�-� & ����� 0011 1�-� & ����� 0012 1�-� & ����� 0013 1�-� & ����� 0014 1O ����

5353

88460CONDENSER ASSY, COOLER

main88460-35070iLN131,VZN130;LN130..5F..SSRX199111-199308

main88460-35070iVZN130;LN13#..5F199108-199111

main88460-35090iKZN130,VZN130199308-199511

main88460-35100iKZN130..SSR199308-199511

sub88460-35090

main88460-35130iLN10#,8#,YN10#,8#199401-199408

main88460-35150iLN106,107,109,8#,YN107,8#199408-199708

main88460-35180iLN108,112199508-199708

main88460-89115iLN10#,8#,YN10#,8#198809-199401

sub88460-35020

main88460-89119iLN13#..5F;VZN130,YN130198904-199108

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-89120iLN10#,112,8#,YN10#,8#198809-199708

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-89121iLN10#,112,8#,YN10#,8#198809-199708

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iLN130..SSR199111-199308

sub88471-16050

main88471-16040iLN10#,8#,YN10#,8#198809-199401

sub88471-16050

main88471-20050iLN10#,112,8#,YN10#,8#199401-199708

sub88471-34010

main88471-34010iKZN130,VZN130199308-199511

88472BRACKET, RECEIVER TANK, NO.1

main88472-35010iLN130..SSR199111-199308

main88472-35010iLN13#,VZN130199108-199511

main88472-89110iLN10#,112,8#,YN10#,8#198809-199708

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iYN130..5F198904-198910

sub90986-02004

sub90986-02005

main90986-02004iLN130..5F..SSRX199111-199308

main90986-02004iYN130..4FC198904-199401

main90986-02007iLN108,112,YN107,8#199408-199708

main90986-02007iKZN130..SSR199308-199511

main90986-02008iLN100,106,107,109,8#,YN10#,80,85..CBR,DSL199401-199708

main90986-02008iKZN130..SSR199308-199511

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-35100iVZN130199108-199308

main88716-35110iKZN130,VZN130199308-199511

main88716-35230iLN10#,112,8#,YN10#,8#199401-199708

main88716-89163iLN10#,8#,YN10#,8#198809-199401

88723BLABEL, COOLER SERVICE CAUTION

main88723-17020iLN130..4FC..SSR199111-199308

main88723-17020iLN130..4FC199108-199111

main88723-20010iLN8#199008-199401

main88723-20030iLN108,109,112,VZN130;KZN130,LN100,106,107,8#,YN10#,8#..DLX,SDX,SR,SSR,STD199308-199708

sub88733-30040

main88723-20040iKZN130..SSRX199308-199511

main88723-22040iVZN130;LN13#..5F198904-199111

main88723-22040iLN131,VZN130;LN130..5F..SSRX199111-199308

88891BPACKING B (FOR COOLER)

main88578-89103iLN130..SSRX;LN10#,112,131,8#,YN10#,8#198809-199708

main88578-89103iKZN130,LN130..SSR199111-199511

main88578-89111iKZN130,VZN130199008-199511

88891CPACKING C (FOR COOLER)

main88578-89118iLN130..5F;LN10#,112,131,YN10#,130,8#198809-199708

88891DPACKING D (FOR COOLER)

main88578-89119iLN108,112199508-199708

main88578-89127iLN100,106,107,109,8#,YN10#,8#198809-199708

sub88578-89119

88891EPACKING E (FOR COOLER)

main88578-89112iLN130198904-199708

main88578-89120iLN10#198809-199108

main88578-89122iLN100,106,107,108,112199208-199708

88891FPACKING F (FOR COOLER)

main88578-35010iVZN130..4FC199108-199511

main88578-89122iLN100,106,107,109,8#,YN10#,8#198809-199708

main88578-89122iLN106,107,109,8#,YN107,8#199508-199708

main88578-89123iLN100,106,107,109,8#,YN10#,8#198809-199708

sub88578-89122

main88578-89128iVZN130..5F199008-199511

main88578-89128iVZN130..4FC199108-199511

88891GPACKING G (FOR COOLER)

main88578-89107iLN130..5F..SSRX;LN10#,112,131,8#,YN10#,8#198809-199708

main88578-89107iKZN130..SSR;LN130..5F..SSR199111-199511

main88578-89131iVZN130..4FC199008-199108

88892CPLATE, CONDENSER, NO.1

main88892-89114iLN8#199008-199708

main88892-89114iLN10#,8#198809-199008

main88892-89115iLN8#198809-199708

main88892-89116iVZN130,YN107..EFI199008-199708

main88892-89117iVZN130,YN107..EFI199008-199708

8846795704CUSHION, COOLER CONDENSER, NO.1

main88467-95704

8889589102HOLDER, FUSE

main88895-89102

9009120609

main90091-20609

9009932128

main90099-32128

9011906336

main90119-06336

9017906032

main90179-06032

9165160814

main91651-60814

9338556025

main93385-56025
