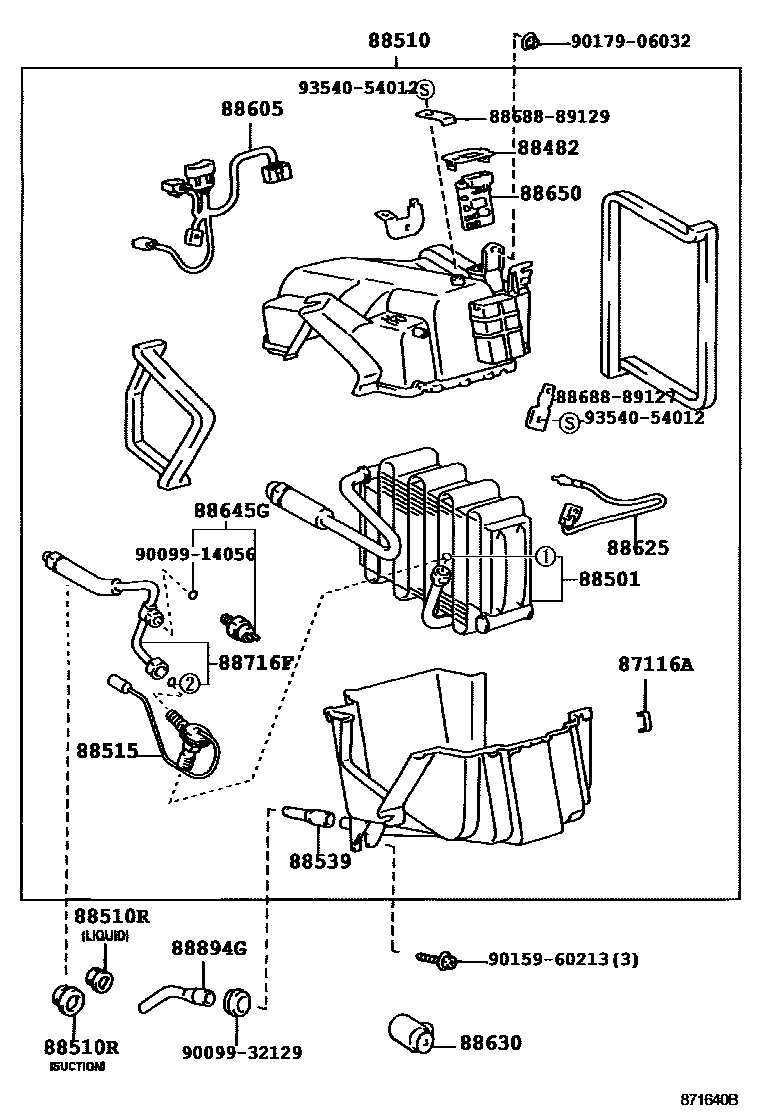

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 10 ����

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×4iLN130,YN130198904-199308

88482CAP, COOLER

main88482-60010iVZN130,YN10#,8#..DLX,SDX,SR,SSR,STD198809-199308

main88482-60020iLN130..4FC..SSR199111-199308

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-35020iKZN130,VZN130199308-199412

main88501-35021iKZN130,VZN130199412-199511

main88501-35030iLN10#,112,8#,YN10#,8#199401-199708

main88501-89112iLN10#,8#,YN10#,8#198809-199401

main88501-89114iLN130..4FC..SSR;LN13#,VZN130..SR,SSRX199111-199308

88510UNIT ASSY, COOLER

main88510-35030iLN130199108-199111

main88510-35070iVZN130199008-199308

main88510-35190iVZN130199308-199511

sub88510-35240

sub88569-12170

sub88630-14040

sub88688-35140

sub88688-35210

main88510-35210iKZN130199308-199511

sub88569-12170

sub88688-89141

main88510-35220iKZN130..SSR199308-199511

main88510-35440iYN10#,8#199401-199408

main88510-35460iLN100,106,107,109,8#199401-199708

main88510-35500iYN107,8#199408-199708

main88510-35520iLN108,112199508-199708

main88510-89153iYN10#,8#198809-199401

main88510-89155iLN10#,8#198809-199401

main88510-89169×2iYN130..4FC198904-199008

main88510-89170iLN130..4FC199103-199108

main88510-89171×2iYN130..5F198904-199108

main88510-89172iLN131199008-199308

88510RGROMMET (FOR COOLER UNIT)

main90480-26003iLN10#,13#,8#,YN10#,8#199108-199401

LIQUID

main90480-26027iKZN130,VZN130199308-199401

LIQUID

main90480-36003iLN10#,13#,8#,YN10#,8#199108-199401

SUCTION

main90480-36019iKZN130,VZN130199308-199401

SUCTION

88515VALVE, COOLER EXPANSION

main88515-14060×2iLN13#,YN130198904-199008

main88515-14061iYN130199008-199108

main88515-14062iLN13#,VZN130199108-199308

sub88515-33010

main88515-16040iLN10#,8#,YN10#,8#198809-199401

main88515-20100iKZN130,VZN130199308-199511

sub88515-22240

main88515-34010iLN10#,112,8#,YN10#,8#199401-199708

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-89113iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199111

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-35020iLN130..4FC199010-199108

main88605-35070iLN130..4FC199108-199111

main88605-35160iVZN130199308-199511

main88605-35180iKZN130199308-199511

main88605-35210iYN107,8#199408-199708

main88605-35250iLN108,112199508-199708

main88605-89151iYN10#,8#198809-199408

main88605-89157iLN100,106,107,109,8#198809-199708

main88605-89165iYN130..4FC198904-199008

main88605-89166iLN130..5F199111-199308

main88605-89167iYN130..5F198904-199108

main88605-89168iLN131198904-199308

main88605-89175iVZN130199008-199308

main88605-89181iLN130..4FC199008-199010

88625THERMISTOR, COOLER, NO.1

main88625-34010iLN10#,112,8#,YN10#,8#199401-199708

main88625-35010iKZN130,VZN130199308-199511

main88625-89102iLN10#,8#,YN10#,8#198809-199401

main88625-89104iLN130..4FC..SSR;LN13#,VZN130..SR,SSRX199111-199308

88630RELAY ASSY, COOLER

main88630-60020iYN130..4FC;LN130,VZN130198904-199108

main88630-95702iLN130..5F199108-199111

88645GSWITCH, PRESSURE

main88645-10020iLN10#,8#,YN10#,8#198809-199008

main88645-16020×2iLN130..SSRX;LN130..4FC..SSR199111-199308

main88645-20050iKZN130,VZN130199308-199511

main88645-34010iLN10#,112,8#,YN10#,8#199401-199708

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-34010iYN107,8#199408

main88650-35020iKZN130,LN108,112199308

main88650-89108iYN10#,8#198809-199408

main88650-89109iLN8#199006-199008

main88650-89112iLN130198904-199308

main88650-89113iVZN130199008-199511

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-35220iLN10#,112,8#,YN10#,8#199401-199708

main88716-89157iLN10#,8#,YN10#,8#198809-199401

88894GCONNECTOR, DRAIN HOSE

main88894-89109iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199111

8868889127BRACKET, COOLER DIAPHRAGM

main88688-89127

8868889129BRACKET, COOLER DIAPHRAGM

main88688-89129

9009914056

main90099-14056

9009932129

main90099-32129

9015960213

main90159-60213

9017906032

main90179-06032

9354054012

main93540-54012

21 parts on this diagram · 3 diagrams in section
