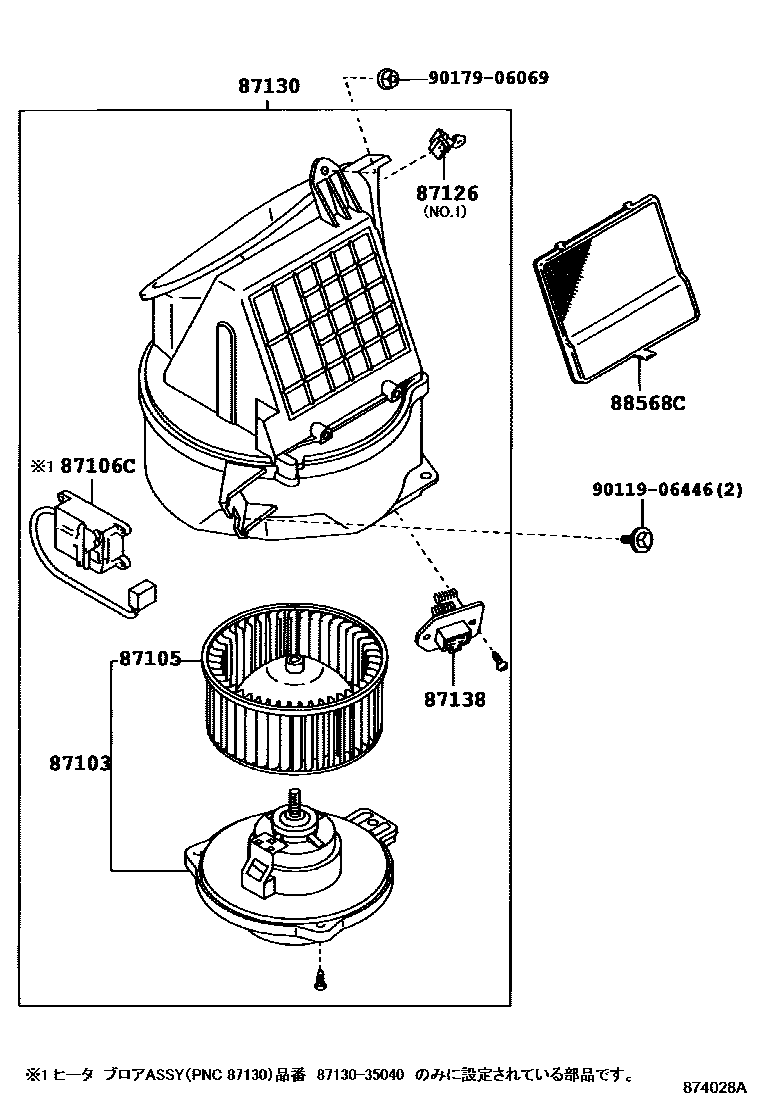

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1�����-� ���� 0002 1�����-� ����-� 0003 1���-�

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-17010iLN109;KZN130,LN100,106,107,13#,8#,YN10#,8#..DLX,SDX,SR,SSR,STD199212-199505

main87103-42010iLN10#,112,8#,YN107,8#199701

main87103-89102iLN10#,13#,8#,YN10#,130,8#198809-198908

main87103-89106iKZN130,LN130..SSR199212-199505

87105FAN SUB-ASSY, HEATER BLOWER

main87105-32010iLN10#,8#,YN10#,130,8#198809-198908

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-35010iKZN130,LN130,VZN130..SSRX199108-199511

87126CLAMP, HEATER CONTROL

main87126-12050×2iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

main87126-89101iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

87130BLOWER ASSY, HEATER, FRONT

main87130-35010iLN10#,8#,YN10#,8#199108-199212

main87130-35030iLN13#..SR,SSR199108-199212

main87130-35040iKZN130,LN130..SSR199108-199511

main87130-89114iLN10#,13#,8#,YN10#,130,8#198809-198908

main87130-89119iLN13#,VZN130,YN130198908-199108

87138RESISTOR, HEATER BLOWER

main87138-35020iKZN130,LN10#,112,13#,8#,VZN130,YN10#,8#199108

main87138-89106iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199108

88568CFILTER, AIR

main88568-89101iKZN130,LN10#,112,13#,8#,VZN130,YN10#,8#199108

9011906446

main90119-06446

9017906069

main90179-06069

9 parts on this diagram · 3 diagrams in section
