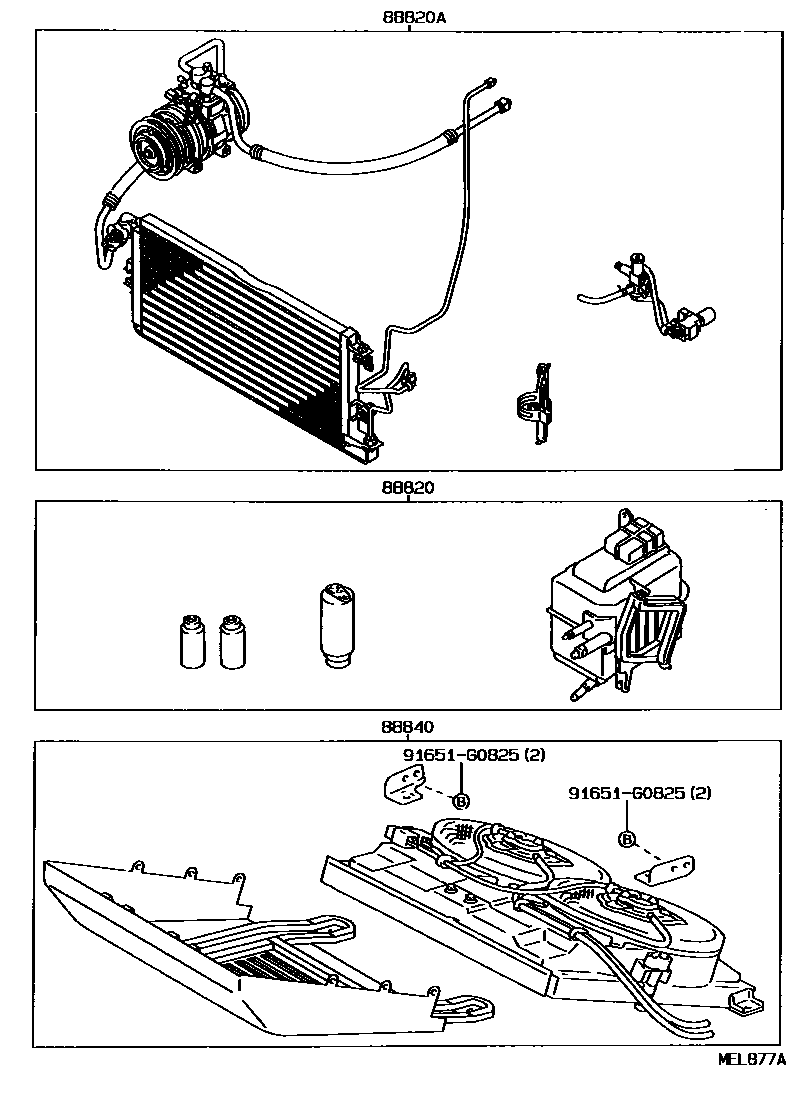

HEATING & AIR CONDITIONING - SET

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-35020iKZN130..SSR199308-199511

main88820-35030iYN10#,8#199401-199408

main88820-35040iLN100,106,107,109,8#199401

main88820-35050iYN107,8#199408

main88820-35080iLN108,112199508

main88820-89110iYN10#,8#198809-199401

main88820-89111iLN10#,8#198809-199401

main88820-89112iLN131198904-199308

main88820-89113iLN130..5F198904-199308

main88820-89114iYN130..5F198904-199108

main88820-89115iYN130..4FC198904-199008

main88820-89116iLN130..4FC199008-199308

88820AAIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2

main88830-35010iLN130..4FC199108-199111

main88830-35020iYN10#,8#199108-199401

main88830-35030iLN8#..5H199108-199201

main88830-35040iLN85..4FC199108-199201

main88830-35050iLN10#199108-199201

main88830-35060iLN131199108-199308

main88830-35070iLN130..5F..SSR199111-199308

main88830-35080iLN130..4FC..SSR199111-199308

main88830-35090iLN130..5F..SSR199111-199308

main88830-35110iLN8#..5H199201-199401

main88830-35120iLN85..4FC199201-199401

main88830-35130iLN10#199201-199401

main88830-35140iKZN130..SSR199308-199511

main88830-35150iKZN130..SSR199308-199511

main88830-35160iYN10#,8#199401-199408

main88830-35170iLN8#..5H199401-199408

main88830-35180iLN85..4FC199401-199408

main88830-35190iLN10#199401-199408

main88830-35200iYN86..4FC199408

main88830-35210iYN107199408

main88830-35220iLN8#199408

main88830-35230iLN106,107,109199408

main88830-35270iYN8#..5H199408

main88830-35300iLN108,112199508

main88830-89123iYN10#,8#198809-199108

main88830-89124iLN10#,8#..MTM198809-199006

main88830-89125iLN85..4FC198809-199008

main88830-89126iLN131198904-199008

main88830-89127iLN130198904-199008

main88830-89128iYN130..5F198904-199108

main88830-89129iYN130..4FC198904-198908

main88830-89131iYN130..4FC198908-199008

main88830-89132iLN130..5F199008-199108

main88830-89133iLN130..4FC199008-199108

main88830-89134iLN130..4FC199008-199108

main88830-89135iLN131199008-199108

main88830-89136iLN85..4FC199008-199108

main88830-89137iLN8#..5H199008-199108

main88830-89138iLN10#199006-199008

main88830-89141iLN10#199008-199108

88840AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.3

main88840-35010iLN130..4FC..SSRX199111-199308

main88840-35020iLN130..4FC199108-199308

91651G0825

main91651-G0825

4 parts on this diagram · 1 diagram in section
