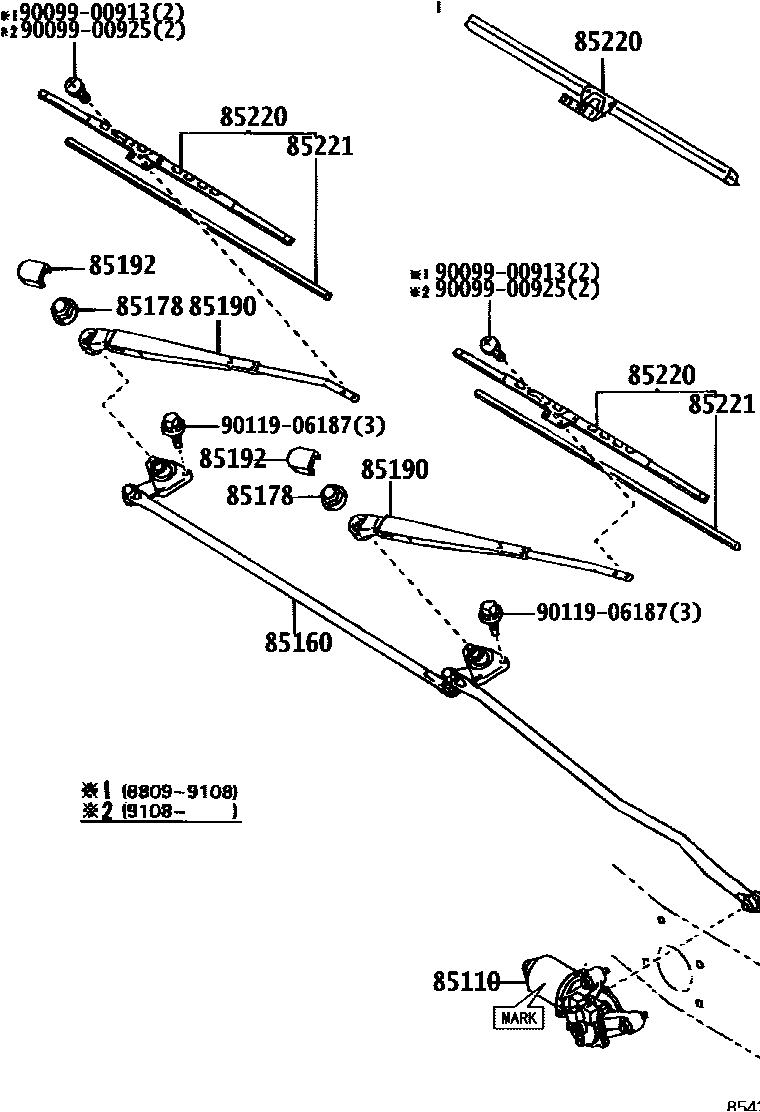

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-35060iLN10#,13#,VZN130,YN10#199108-199208

main85110-35110iLN8#,YN8#199208-199310

sub85110-35111

main85110-35111iLN8#,YN8#199310

sub85110-35161

main85110-35160iKZN130,LN10#,13#,VZN130,YN10#199208-199310

sub85110-35161

main85110-35161iKZN130,LN10#,112,VZN130,YN10#199310

main85110-89141iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199208

sub85110-35060

85160LINK ASSY, WINDSHIELD WIPER

main85150-35060iKZN130,LN10#,112,13#,8#,VZN130,YN10#,8#199208

main85160-89126iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199208

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

85190ARM ASSY, WINDSHIELD WIPER

main85190-89135iLN10#,13#,8#,YN10#,130,8#198809-198909

sub85190-89141

main85190-89141iLN10#,13#,8#,VZN130,YN10#,130,8#198909-199108

main85210-89105iLN10#,13#,8#,YN10#,130,8#198809-198909

sub85210-89108

main85210-89108iLN10#,13#,8#,VZN130,YN10#,130,8#198909-199108

main85211-35010iLN10#,13#,VZN130,YN10#199108-199208

main85211-35050iLN8#,YN8#199108-199208

main85221-35040iLN10#,13#,VZN130,YN10#199108-199303

sub85221-35041

main85221-35041iKZN130,LN10#,112,13#,VZN130,YN10#199303-199306

main85221-35050iLN8#,YN8#199108-199208

main85221-35051iLN8#,YN8#199208-199303

sub85221-35052

main85221-35052iLN8#,YN8#199303

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

85220BLADE ASSY, WINDSHIELD WIPER

main85212-35010iLN10#,13#,VZN130,YN10#199108-199211

sub85212-60060

main85212-60060iKZN130,LN10#,112,13#,8#,VZN130,YN10#,8#199211-199708

main85220-12560iLN10#,13#,8#,YN10#,130,8#198809-198909

sub85220-12561

main85220-12561iLN10#,13#,8#,VZN130,YN10#,130,8#198909-199201

sub85222-10220

main85220-12620iLN10#,13#,8#,YN10#,130,8#198809-199003

sub85291-12010

main85220-16410iLN10#,13#,8#,YN10#,130,8#198809-198909

sub85220-16411

main85220-16411iLN8#,YN8#198909-199208

sub85220-16350

main85220-16580iLN10#,13#,8#,YN10#,130,8#198809-199003

sub85291-16010

main85222-35020iLN8#,YN8#199201-199208

main85222-35030iLN10#,13#,VZN130,YN10#199108-199211

sub85222-35031

main85222-35031iKZN130,LN10#,112,13#,VZN130,YN10#199211-199708

sub85222-33051

main85222-35050iLN8#,YN8#199208-199211

sub85222-35051

main85222-35051iLN8#,YN8#199211-199708

main85291-12010iLN10#,13#,8#,VZN130,YN10#,130,8#199003-199208

main85291-16010iLN10#,13#,8#,VZN130,YN10#,130,8#199003-199208

main85291-23010iLN8#,YN8#199208-199708

sub85291-60070

main85291-35010iKZN130,LN10#,112,13#,8#,VZN130,YN10#,8#199108-199708

sub85291-60020

main85291-35020iKZN130,LN10#,112,13#,VZN130,YN10#199108-199708

sub85291-30030

85221BLADE, WINDSHIELD WIPER

main85213-35010iLN10#,13#,8#,VZN130,YN10#,8#199108-199211

sub85214-20320

main85213-60030iLN8#,YN8#199211-199708

sub85214-20320

main85221-12230iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199208

sub85214-12H90

main85221-30120iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199208

sub85221-40040

main85223-28020iLN10#,13#,VZN130,YN10#199211-199502

sub85214-60020

main85223-35030iLN10#,13#,VZN130,YN10#199108-199211

sub85223-28020

main85223-35060iLN8#,YN8#199208-199211

sub85223-35061

main85223-35061iLN8#,YN8#199211-199708

sub85214-35010

9009900913

main90099-00913

9009900925

main90099-00925

9011906187

main90119-06187

10 parts on this diagram · 2 diagrams in section
