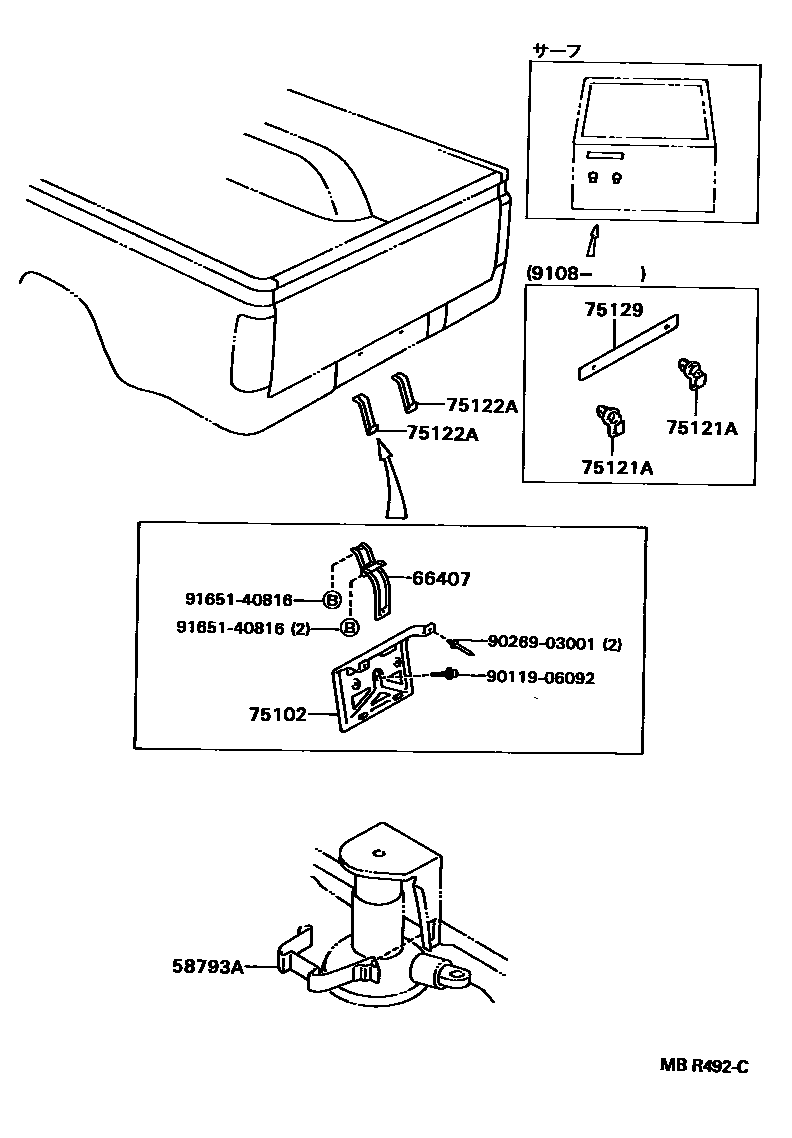

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

58793ABRACKET, JACK CARRIER

main58792-89105iLN10#,112,8#,YN10#,8#198809

66407STAY SUB-ASSY, LICENSE PLATE BRACKET

main66407-89101iLN85,86,YN85,86..T3198809

main66495-89102iLN85,86,YN85,86..T2..CBU198809

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-89115iLN85,86,YN85,86..T3198809

main75102-89117iLN85,86,YN85,86..T2..CBU198809

75121ABRACKET, REAR LICENSE PLATE

main75121-35020×2iKZN130,LN130,VZN130..SSRX199108-199511

sub75121-35021

75122ABRACKET, REAR LICENSE PLATE, NO.2

main75122-89106×2iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809

75129CUSHION, REAR LICENSE PLATE

main75129-35010iKZN130,LN130,VZN130..SSRX199108-199511

9011906092

main90119-06092

9026903001

main90269-03001

9165140816

main91651-40816

9 parts on this diagram · 2 diagrams in section
