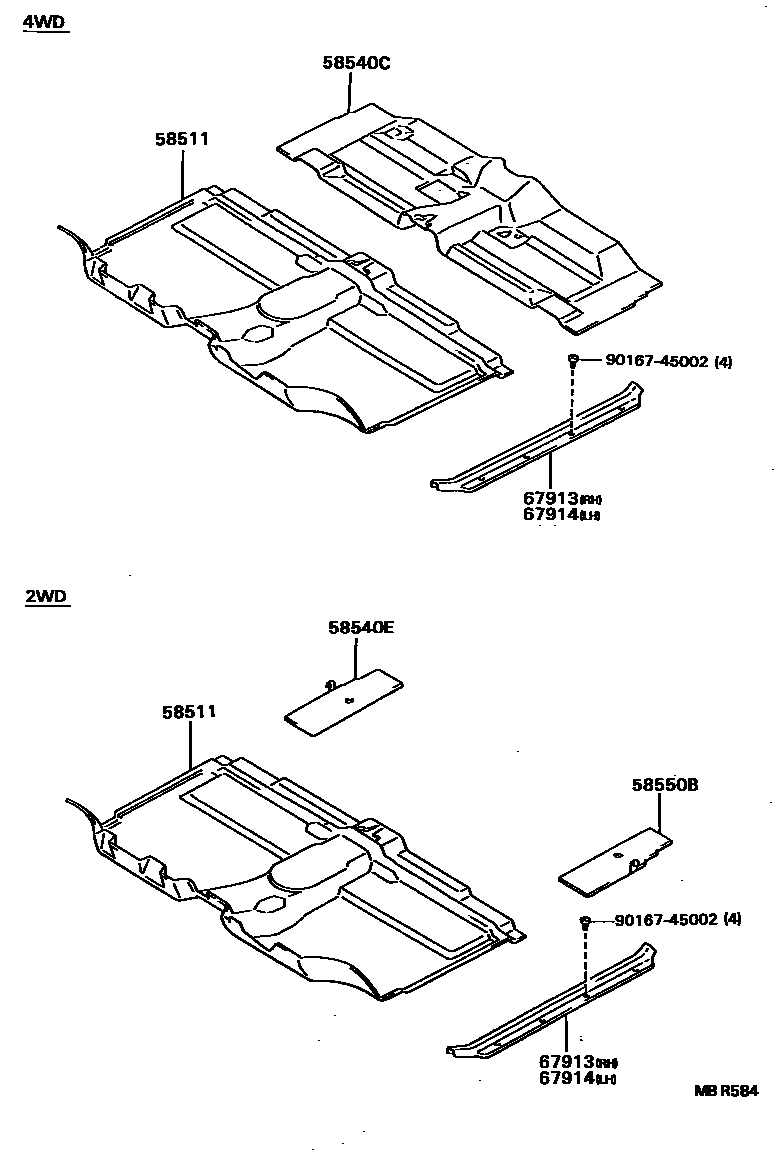

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

58511MAT, FLOOR, FRONT

main58510-89420-03iLN8#,YN8#..5H..(DLX,STD)198809

GRAY,TRIM1#

main58510-89420-04iLN8#,YN8#..5H..DLX198809-199408

BLUE,TRIM8#

main58510-89420-06iLN8#,YN8#..5H..DLX198809-199108

BROWN,TRIM4#

main58510-89421-03iLN85,YN86..4FC..DLX198809

GRAY,TRIM1#

main58510-89421-04iLN85..4FC..DLX198809-199408

BLUE,TRIM8#

main58510-89421-06iLN85..4FC..DLX198809-199108

BROWN,TRIM4#

main58510-89422-03iLN106..DLX198809

GRAY,TRIM1#

main58510-89422-04iLN106..DLX198809-199408

BLUE,TRIM8#

58540CMAT ASSY, FLOOR, REAR

main58540-35060-03iLN106..DLX199008-199108

GRAY,TRIM1#

main58540-35060-04iLN106..DLX199008-199108

BLUE,TRIM8#

main58540-35070-B0iLN106..DLX199108-199708

GRAY,TRIM1#

main58540-35070-J0iLN106..DLX199108-199408

BLUE,TRIM8#

main58540-35090-B0iLN85,86,YN85,86..TW1199108-199708

GRAY,TRIM1#

main58540-35090-J0iLN85,YN85..TW1199108-199408

BLUE,TRIM8#

main58540-89193-03iLN85,YN85..TW1198809-199108

GRAY,TRIM1#

main58540-89193-04iLN85,YN85..TW1198809-199108

BLUE,TRIM8#

main58540-89193-06iLN85,YN85..TW1198809-199108

BROWN,TRIM4#

main58540-89198-03iLN106..DLX198809-199008

GRAY,TRIM1#

main58540-89198-04iLN106..DLX198809-199008

BLUE,TRIM8#

58540EMAT ASSY, FLOOR, REAR RH

main58540-89190-03iLN8#,YN8#..RCB..(DLX,STD)198809-198901

GRAY,TRIM1#

main58540-89190-04iLN8#,YN8#..RCB..(DLX,STD)198809-198901

BLUE,TRIM8#

main58540-89190-06iLN8#,YN8#..RCB..DLX198809-198901

BROWN,TRIM4#

main58540-89190-B0iLN8#,YN8#..RCB..(DLX,STD)198901

MEDIUM GRAY,TRIM1#

main58540-89190-E0iLN8#,YN8#..RCB..DLX198901-199108

BROWN,TRIM4#

main58540-89190-J0iLN8#,YN8#..RCB..(DLX,STD)198901-198908

MEDIUM BLUE,TRIM8#

58550BMAT ASSY, FLOOR, REAR LH

main58550-89102-03iLN8#,YN8#..RCB..(DLX,STD)198809-198901

GRAY,TRIM1#

main58550-89102-04iLN8#,YN8#..RCB..(DLX,STD)198809-198901

BLUE,TRIM8#

main58550-89102-06iLN8#,YN8#..RCB..DLX198809-198901

BROWN,TRIM4#

main58550-89102-B0iLN8#,YN8#..RCB..(DLX,STD)198901-199708

MEDIUM GRAY,TRIM1#

main58550-89102-E0iLN8#,YN8#..RCB..DLX198901-199108

BROWN,TRIM4#

main58550-89102-J0iLN8#,YN8#..RCB..(DLX,STD)198901-198908

MEDIUM BLUE,TRIM8#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-89103-03iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809-199708

GRAY,TRIM1#

main67913-89103-04iLN106,107,85,YN105,107,85..TW1198809-199408

BLUE,TRIM8#

main67913-89103-06iLN85,YN85..TW1198809-199108

BROWN,TRIM4#

main67913-89104-03iLN106,8#,YN8#..RCB..(DLX,STD)198809-198901

GRAY,TRIM1#

main67913-89104-04iLN106,8#,YN8#..RCB..(DLX,STD)198809-198901

BLUE,TRIM8#

main67913-89104-06iLN8#,YN8#..RCB..DLX198809-198901

BROWN,TRIM4#

main67913-89104-B0iLN106,8#,YN8#..RCB..(DLX,STD)198901-199708

MEDIUM GRAY,TRIM1#

main67913-89104-E0iLN8#,YN8#..RCB..DLX198901-199108

BROWN,TRIM4#

main67913-89104-J0iLN106,8#,YN8#..RCB..DLX198908-199408

MEDIUM BLUE,TRIM8#

main67913-89105-03iLN10#,85,YN100,8#..T1..(SDX,SR)198809-198901

GRAY,TRIM1#

main67913-89105-04iLN10#,85,YN100,8#..T1..(SDX,SR)198809-198901

BLUE,TRIM8#

main67913-89105-06iLN85,YN8#..SDX198809-198901

BROWN,TRIM4#

main67913-89105-B0iLN100,106,85,86,YN100,80,85,86..T1..(SDX,SR)198901-199708

MEDIUM GRAY,TRIM1#

main67913-89105-E0iLN85,YN8#..SDX198901-199108

BROWN,TRIM4#

main67913-89105-J0iLN100,106,85,YN100,8#..T1..(SDX,SR)198901-199408

MEDIUM BLUE,TRIM8#

main67913-89106-02iLN130,VZN130,YN130..2D198904-199108

RED,TRIM3#

main67913-89106-03iKZN130,LN130,VZN130,YN130..2D198904-199511

GRAY,TRIM1#

main67913-89106-04iLN130,VZN130,YN130..2D..SSR199008-199308

BLUE,TRIM8#

main67913-89106-06iLN130,VZN130,YN130..2D198904-199108

BROWN,TRIM4#

main67913-89107-02iLN130,VZN130,YN130..4D198904-199108

RED,TRIM3#

main67913-89107-03iKZN130,LN13#,VZN130,YN130..4D198904-199511

GRAY,TRIM1#

main67913-89107-04iLN13#,VZN130,YN130..4D199008-199308

BLUE,TRIM8#

main67913-89107-06iLN130,VZN130,YN130..4D198904-199108

BROWN,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-89102-03iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809-199708

GRAY,TRIM1#

main67914-89102-04iLN106,107,85,YN105,107,85..TW1198809-199408

BLUE,TRIM8#

main67914-89102-06iLN85,YN85..TW1198809-199108

BROWN,TRIM4#

main67914-89103-03iLN106,8#,YN8#..RCB..(DLX,STD)198809-198901

GRAY,TRIM1#

main67914-89103-04iLN106,8#,YN8#..RCB..(DLX,STD)198809-198901

BLUE,TRIM8#

main67914-89103-06iLN8#,YN8#..RCB..DLX198809-198901

BROWN,TRIM4#

main67914-89103-B0iLN106,8#,YN8#..RCB..(DLX,STD)198901-199708

MEDIUM GRAY,TRIM1#

main67914-89103-E0iLN8#,YN8#..RCB..DLX198901-199108

BROWN,TRIM4#

main67914-89103-J0iLN106,8#,YN8#..RCB..(DLX,STD)198901-198908

MEDIUM BLUE,TRIM8#

main67914-89104-03iLN10#,85,YN100,8#..T1..(SDX,SR)198809-198901

GRAY,TRIM1#

main67914-89104-04iLN10#,85,YN100,8#..T1..(SDX,SR)198809-198901

BLUE,TRIM8#

main67914-89104-06iLN85,YN8#..SDX198809-198901

BROWN,TRIM4#

main67914-89104-B0iLN100,106,85,86,YN100,80,85,86..SDX,SR199308-199708

MEDIUM GRAY,TRIM1#

main67914-89104-E0iLN85,YN8#..SDX198901-199108

BROWN,TRIM4#

main67914-89104-J0iLN100,106,YN100..SR199308-199408

MEDIUM BLUE,TRIM8#

main67914-89105-02iLN130,VZN130,YN130..2D198904-199108

RED,TRIM3#

main67914-89105-03iKZN130,LN130,VZN130,YN130..2D198904-199511

GRAY,TRIM1#

main67914-89105-04iLN130,VZN130,YN130..2D..SSR199008-199308

BLUE,TRIM8#

main67914-89105-06iLN130,VZN130,YN130..2D198904-199108

BROWN,TRIM4#

main67914-89106-02iLN130,VZN130,YN130..4D198904-199108

RED,TRIM3#

main67914-89106-03iKZN130,LN13#,VZN130,YN130..4D198904-199511

GRAY,TRIM1#

main67914-89106-04iLN13#,VZN130,YN130..4D199008-199308

BLUE,TRIM8#

main67914-89106-06iLN130,VZN130,YN130..4D198904-199108

BROWN,TRIM4#

9016745002

main90167-45002

7 parts on this diagram · 4 diagrams in section
