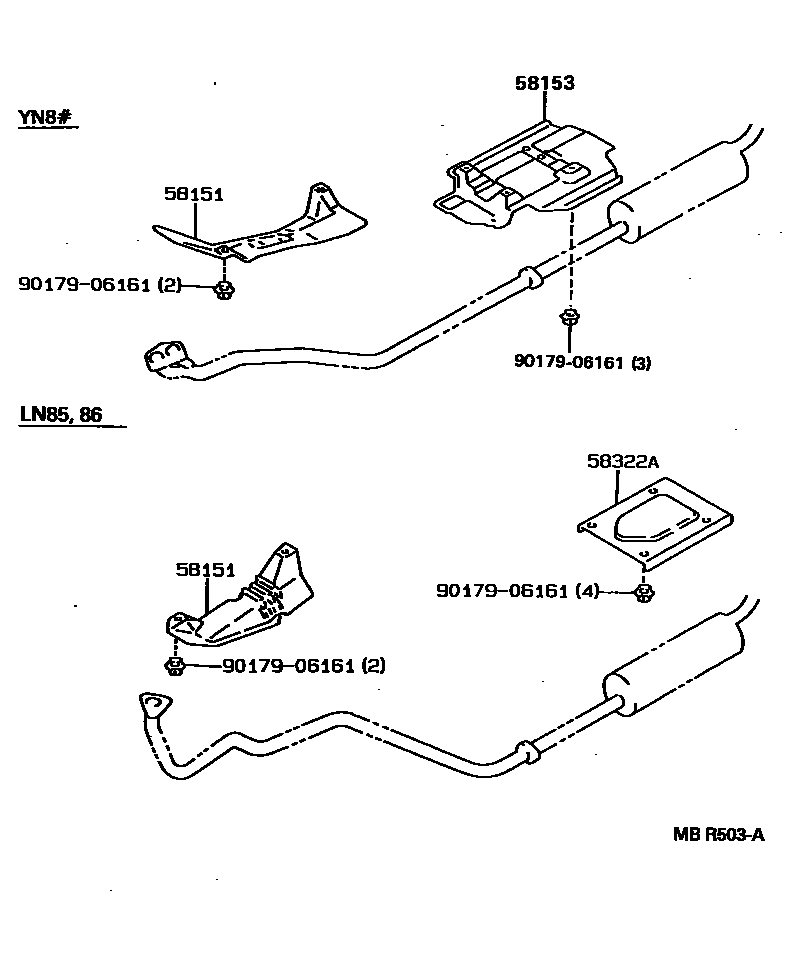

FLOOR INSULATOR

0001 1 0002 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-89107iYN10#198905-199408

main58151-35010iLN10#,112199410-199708

main58151-89112iYN8#198809-199708

main58151-89113iLN85..4FC198809-199408

main58151-89116iLN10#,13#198911-199410

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-89110iYN100198809-199408

main58153-89111iVZN130,YN130198904-199511

main58153-89112iYN105,107,85,86198809-199708

main58153-89113iYN80,81198809-199708

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-89103iLN106,107,85..TW1198809-199408

9017906161

main90179-06161

4 parts on this diagram · 3 diagrams in section
