COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-89106iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

55701PANEL SUB-ASSY, COWL

main55700-35060iKZN130,LN10#,112,13#,8#199108

PLANT NO.A51,A52

main55700-35110iVZN130..5F199108-199511

main55700-89136iYN10#,8#198809-199408

main55700-89138iLN10#,8#198809-198901

main55700-89141iYN130198904-199005

main55700-89149iLN10#,13#,8#198901-199005

PLANT NO. A51,A52

main55700-89155iYN107..EFI;VZN130,YN81,86..4FC,5H199108

PLANT NO.P11

55713APANEL, COWL TOP SIDE, RH

main55713-89105iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

55714APANEL, COWL TOP SIDE, LH

main55714-89106iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

55735BSEAL, FRONT AIR SHUTTER

main55735-89101×2iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

55756ASCREEN, HEATER AIR DUCT

main55756-89108iLN10#,13#,8#,YN10#,130,8#198809-199008

main55756-89109iLN10#,13#,8#,YN10#,130,8#198809-199008

main55756-89110iLN10#,13#,8#,YN10#,130,8#198809-199008

55781FLOUVER, COWL TOP VENTILATOR

main55781-89104iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

56111GLASS, WINDSHIELD

main56111-89147iYN107;LN10#,131,YN100,105..DLX,SR198809-199408

main56111-89148iLN130..SSR199108-199201

main56111-89149iLN107,YN81,86..DLX,SDX,SR;KZN130,LN100,106,131,8#,YN10#,80,85..(DLX,SDX,SR,SSR)..(CBR,DSL,TDE)198809

main56111-89150iYN80..STD198809-199408

56116SPACER, WINDSHIELD GLASS

main56116-89104×2iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

main56116-89105×2iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

main56116-89106×2iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

56117ADAM, WINDOW GLASS ADHESIVE

main56117-89104iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

9015950110

main90159-50110

9015950324

main90159-50324

9018905082

main90189-05082

9046706005

main90467-06005

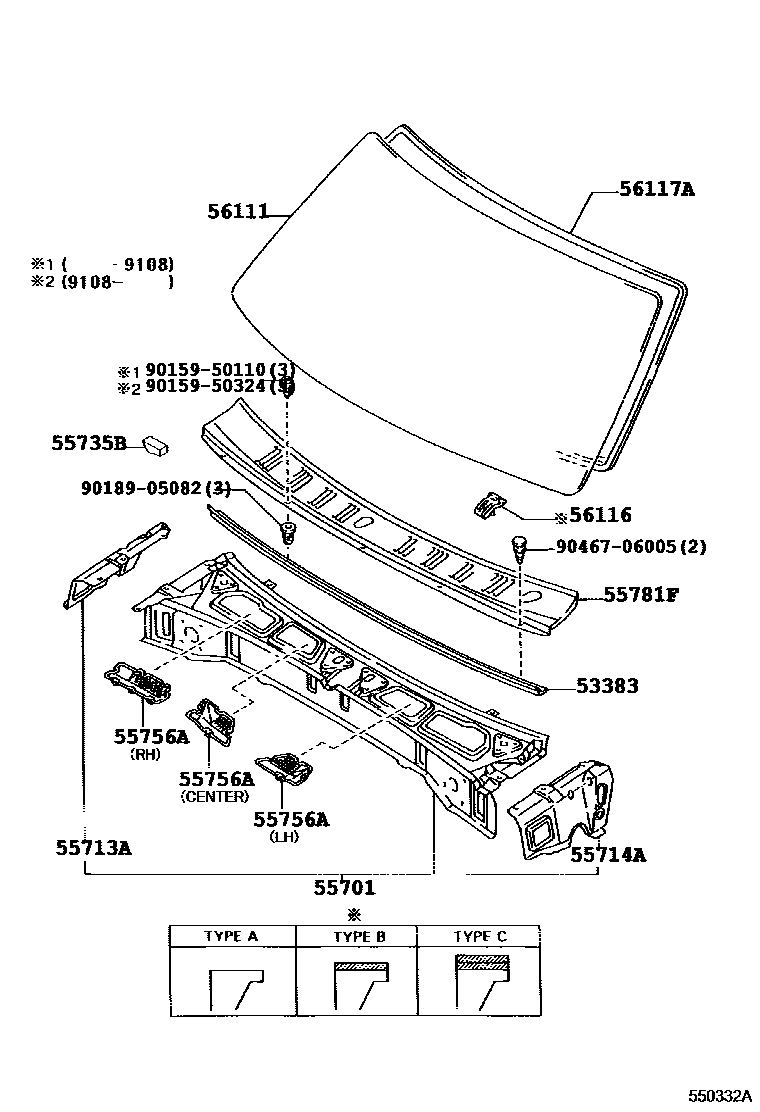

14 parts on this diagram · 1 diagram in section
