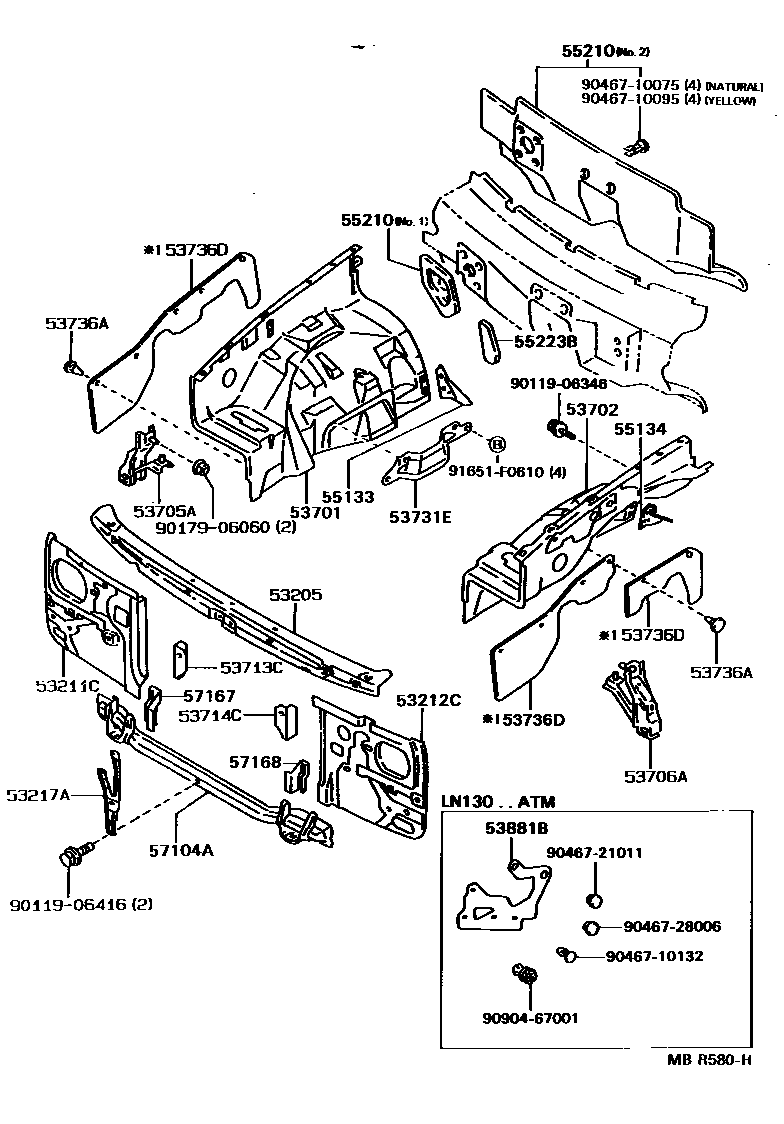

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-35010iLN13#,VZN130199108-199308

main53216-35011iKZN130,VZN130199308-199511

sub53216-35010

main53216-89110iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199108

53211CSUPPORT, RADIATOR, RH

main53202-35020iLN10#,YN10#198809-199108

main53202-35050iKZN130,VZN130199308-199409

sub53202-35080

main53202-35080iKZN130,VZN130199409-199511

main53211-35040iLN13#,VZN130199108-199308

sub53202-35050

main53211-89124iLN13#,VZN130,YN130198904-199108

53212CSUPPORT, RADIATOR, LH

main53203-35020iLN10#,112,8#,YN10#,8#198809

main53203-35060iKZN130,VZN130199308-199409

sub53203-35090

main53203-35090iKZN130,VZN130199409-199511

main53212-35020iLN13#,VZN130199108-199308

sub53203-35060

main53212-89121iLN13#,VZN130,YN130198904-199108

53217ABRACE, HOOD LOCK SUPPORT

main53217-89108iLN10#,112,8#,YN10#,8#198809

main53217-89109iKZN130,LN13#,VZN130,YN130198904-199511

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-35090iYN8#199006

main53701-35110iLN8#199006

main53701-35210iKZN130199308-199511

main53701-35250iKZN130..4FC..SSRX199308-199511

main53701-35400iLN108,112199508

main53701-89209iLN8#198809-199006

sub53701-35110

main53701-89217iYN8#198809-199006

sub53701-35090

main53701-89226iLN100198809-199408

main53701-89235iLN100,106,107,109198809

main53701-89240iYN10#198809

main53701-89250iYN130198904-199108

main53701-89253iLN130198904-199008

main53701-89259iLN131198904-199308

main53701-89260iLN131198904-199308

main53701-89278iVZN130199008-199511

main53701-89279iLN130199009-199308

main53701-89279iLN130199008-199009

main53701-89280iLN130199008-199009

sub53701-89279

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-35100iYN8#199006-199408

main53702-35120iLN8#199006-199009

sub53702-35140

main53702-35130iLN8#199009-199108

main53702-35130iLN8#199008-199009

main53702-35140iLN8#199009-199108

main53702-35140iLN8#199008-199009

main53702-35190iLN8#199108

main53702-35200iLN8#199108

main53702-35280iLN100,106,107,109199108

main53702-35360iLN130199108-199308

main53702-35361iKZN130199308-199511

main53702-35370iLN131199108-199308

main53702-35460iYN8#199408

main53702-35470iYN107199408

main53702-35490iLN108,112199508

main53702-89240iLN8#198809-199009

sub53702-35130

main53702-89242iLN8#198809-199006

sub53702-35120

main53702-89247iYN8#198809-199006

main53702-89250iYN10#198912-199408

main53702-89260iLN10#198809-199108

main53702-89262iLN10#198809-199108

main53702-89267iYN10#198809-198912

sub53702-89250

main53702-89275iYN130198904-199108

main53702-89280iLN13#..DSL,TD198904-199009

sub53702-89295

main53702-89281iLN13#..DSL,TD198904-199108

main53702-89295iLN131199009-199108

main53702-89297iVZN130199009-199511

main53702-89297iVZN130..4FC199008-199009

main53702-89298iLN130199008-199108

main53702-89299iLN130199008-199108

main53702-89300iVZN130..5F199008-199009

sub53702-89297

53705ABRACE SUB-ASSY, FENDER APRON, RH

main53705-89102iLN8#,YN8#198809

main53705-89103iKZN130,LN10#,112,13#,VZN130,YN10#,130198809

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-89102iLN8#,YN8#198809

main53706-89103iKZN130,LN10#,112,13#,VZN130,YN10#,130198809

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53707-89102iLN107,108,109,112,YN107199108

main53713-89104iKZN130,LN100,106,13#,8#,VZN130,YN100,105,130,8#198809

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53708-89101iLN107,108,109,112,YN107199108

main53714-89104iKZN130,LN100,106,13#,8#,VZN130,YN100,105,130,8#198809

53731EPATCH, FRONT FENDER APRON

main53731-89108iKZN130,LN108,112,130,VZN130198904

main53732-89106iYN107,130..EFI198904

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10107iLN10#,13#,VZN130,YN10#,130,8#..CBR,DSL,EFI,TD198809-199511

53736DSEAL, FENDER APRON

main53736-35070iYN107199203

MARK=II

main53736-35090iLN107,108,109,112,13#,VZN130199203-199511

MARK=KK,PLANT A51-54

main53736-35090iLN107,108,109,112,131,VZN130199203-199511

MARK=KK,PLANT P11

main53736-35090iLN107,108,109,112199511-199609

MARK=KK

main53736-35110iKZN130199308-199511

MARK=ZZ

main53736-35120iLN107,108,109,112,VZN130199308-199511

MARK=JJ

sub53736-35070

main53736-89118iYN8#198809

MARK=AA

main53736-89119iLN8#198809

MARK=BB

sub53736-89118

main53736-89120iLN8#198809

MARK=EE

main53736-89121iLN100,106,YN100,105198809

MARK=CC

main53736-89122iYN100,105198809-199408

MARK=FF

sub53736-89121

main53736-89123iLN100,106198809

MARK=HH

main53736-89125iLN100,106198809

MARK=GG

sub53736-89121

main53736-89126iYN107,130198904-199203

MARK=II

sub53736-35070

main53736-89127iLN107,13#,VZN130198904-199308

MARK=JJ

sub53736-35120

main53736-89128iLN107,13#,VZN130198904-199203

MARK=KK

sub53736-35080

53881BSEAL, COOLING FAN AIR DUCT, NO.1

main53881-89103iLN130..4FC199008-199308

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-89103iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-89103iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

55210INSULATOR ASSY, DASH PANEL

main55210-35100iKZN130,LN10#,112,13#,8#,VZN130199108-199511

PLANT NO. P11,NO.2

sub55210-35111

main55210-35100iLN10#,13#,8#,VZN130,YN130199104-199108

sub55210-35111

main55210-35110iLN10#,13#,8#,VZN130199108-199308

PLANT NO A51-54,NO.2

sub55210-35111

main55210-35111iKZN130,LN10#,112,8#,VZN130199308

PLANT NO A51-54,NO.2

main55210-89149iKZN130,LN10#,112,13#,85,YN10#,86..4FC,5F199108

NO.1

main55210-89149iLN10#,13#,85,YN10#,130..4FC,5F198809-199108

main55210-89150iLN8#,YN8#..5H198809-199108

main55210-89150iLN8#,YN8#..5H199108

NO.1

main55210-89153iYN80..STD199108-199408

NO.2

main55210-89153iYN80..STD198809-199108

main55210-89154iYN10#,8#..DLX,SDX,SR,SSR199108

NO.2

main55210-89154iYN10#,8#..DLX,SDX,SR198809-199108

main55210-89155iLN10#,13#,8#,VZN130,YN130198809-199104

sub55210-35100

main55210-89159iVZN130199108-199511

main55210-89159iVZN130199008-199108

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55225-35010iKZN130199308-199511

main55225-89104iLN10#,112,13#,8#198809

main55225-89105iVZN130199008-199511

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-35010iKZN130,LN13#,VZN130,YN130199008-199511

main57104-89109iLN10#,112,8#,YN10#,8#198809

main57104-89113iLN13#,YN130198904-199008

sub57104-35010

57167GUSSET, FRONT CROSSMEMBER, UPPER RH

main57167-89102iLN13#,VZN130,YN130198904-199108

57168GUSSET, FRONT CROSSMEMBER, UPPER LH

main57168-89102iLN13#,VZN130,YN130198904-199108

9011906346

main90119-06346

9011906416

main90119-06416

9017906060

main90179-06060

9046710075

main90467-10075

9046710095

main90467-10095

9046710132

main90467-10132

9046721011

main90467-21011

9046728006

main90467-28006

9090467001

main90904-67001

91651F0610

main91651-F0610

31 parts on this diagram · 4 diagrams in section
