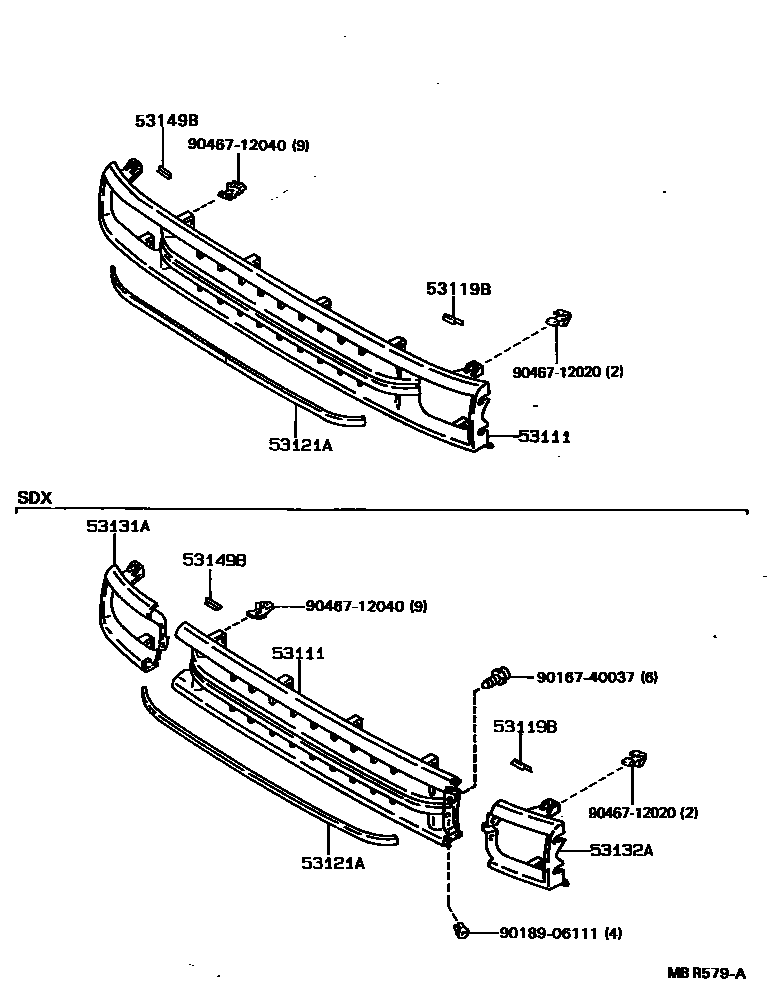

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1

53111GRILLE, RADIATOR

main53111-35060iLN8#,YN8#199108-199408

main53111-35130iLN106..DLX199108-199408

main53111-35140iLN10#,YN10#..SR199108-199408

sub53111-35151

main53111-35150iLN10#,YN10#..SR199108-199402

sub53111-35151

main53111-35151iLN107,YN107..SSR199402-199408

main53111-35160iLN131199108-199308

main53111-35170iLN130,VZN130199108-199308

sub53111-35171

main53111-35171iKZN130,VZN130199308-199511

main53111-35250iLN8#,YN8#199408-199708

main53111-35300iLN106,107..DLX,SR199408-199708

main53111-35310iLN107,108,109,112,YN107..SSR,SSRX199408-199708

main53111-89130iYN80..STD198809-199108

sub53111-89131

main53111-89131iLN8#,YN8#..DLX198809-199108

main53111-89132iLN85,YN8#..SDX198809-199108

main53111-89133iLN85,YN8#..SDX198809-199108

main53111-89137iLN10#,YN10#198809-199108

main53111-89138iLN10#,YN10#..SR198809-199108

main53111-89143iLN131198904-199108

main53111-89144iLN130,VZN130,YN130198904-199108

53119BPROTECTOR, RADIATOR GRILLE

main53119-35010iKZN130,LN13#,VZN130199108-199511

main53119-89105iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199108

53121AMOULDING, RADIATOR GRILLE

main53121-89103iLN85,YN8#..SDX198809-199108

sub53121-89106

main53121-89105iLN85,YN8#..SDX198809-199108

sub53121-89107

main53121-89108iLN8#,YN8#..DLX198809-199108

sub53121-89106

53131ADOOR, HEADLAMP, RH

main53131-35030iLN107,108,109,112,YN107..SSR,SSRX199408-199708

main53131-35050iLN106..DLX199108-199408

main53131-35060iLN10#,YN10#..SR199108-199408

main53131-35070iLN107,YN107..SSR199108-199402

sub53131-35071

main53131-35070iLN107,YN107..SSR199108-199402

sub53131-35071

main53131-35071iLN10#,YN10#..SR199402-199408

main53131-35071iLN10#,YN10#..SR199402-199408

main53131-35100iLN106,107..DLX,SR199408-199708

main53131-89116iLN85,YN8#..SDX198809-199108

main53131-89117iLN85,YN8#..SDX198809-199108

main53131-89118iLN106..DLX198809-199108

main53131-89119iLN10#,131,YN10#..SR198809-199108

main53131-89121iLN10#,YN10#..SR198809-199108

main53131-89126iLN130,VZN130,YN130198904-199108

53132ADOOR, HEADLAMP, LH

main53132-35030iLN107,108,109,112,YN107..SSR,SSRX199408-199708

main53132-35050iLN106..DLX199108-199408

main53132-35060iLN10#,YN10#..SR199108-199408

main53132-35070iLN10#,YN10#..SR199108-199402

sub53132-35071

main53132-35070iLN107,YN107..SSR199108-199402

sub53132-35071

main53132-35071iLN10#,YN10#..SR199402-199408

main53132-35071iLN10#,YN10#..SR199402-199408

main53132-35100iLN106,107..DLX,SR199408-199708

main53132-89115iLN85,YN8#..SDX198809-199108

main53132-89116iLN85,YN8#..SDX198809-199108

main53132-89117iLN106..DLX198809-199108

main53132-89118iLN10#,131,YN10#..SR198809-199108

main53132-89120iLN10#,YN10#..SR198809-199108

main53132-89125iLN130,VZN130,YN130198904-199108

53149BPROTECTOR, HEADLAMP DOOR, NO.3

main53149-35010iKZN130,LN13#,VZN130199108-199511

main53149-89101iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199108

9016740037

main90167-40037

9018906111

main90189-06111

9046712020

main90467-12020

9046712040

main90467-12040

10 parts on this diagram · 6 diagrams in section
