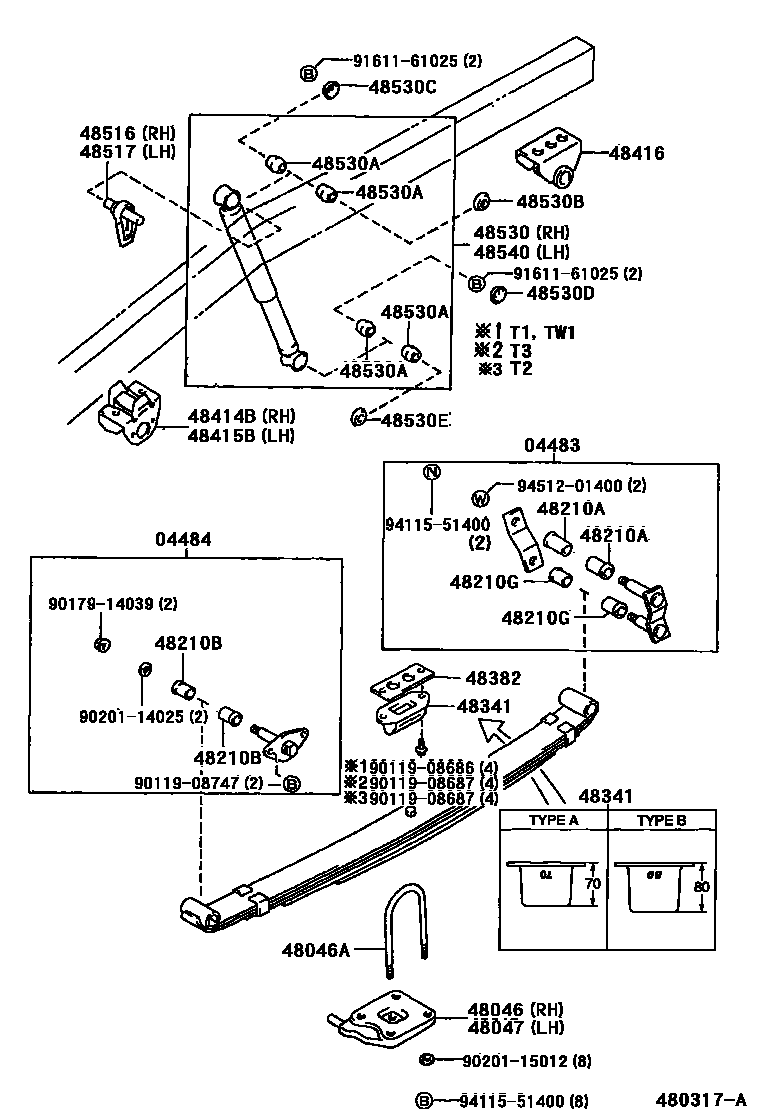

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04483SHACKLE KIT, REAR SPRING

main04483-35040iLN100,106,YN100,105198809

main04483-35051iLN8#,YN8#198809-199108

main04483-35070iLN85,86,YN85,86..RCB;LN107,108,109,112,80,81,YN107,80,81199108

main04483-35080iLN85,86,YN85,86..TW1199108

04484PIN KIT, REAR SPRING

main04482-35030iLN10#,8#,YN10#,8#198809-199108

main04484-35060iLN100,106,8#,YN100,8#199108-199708

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35140iLN8#,YN8#..T1,T3,TW1198809

main48046-35160iLN85,86,YN85,86..T2198809

main48046-35170iLN10#,112,YN10#198809

48046ABOLT, U(FOR REAR SPRING)

main90117-14008iLN107,108,109,112,YN107..SSR,SSRX199108

main90117-14029iLN85,86,YN85,86..T2198809

main90117-14040iLN8#,YN8#..T1,T3,TW1198809

main90117-14044iLN100,106,107,YN10#..DLX,SR198809

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-35140iLN8#,YN8#..T1,T3,TW1198809

main48046-35160iLN85,86,YN85,86..T2198809

main48046-35170iLN10#,112,YN10#198809

48210SPRING ASSY, REAR RH

main48210-35630iLN8#,YN8#..T1198809-199408

main48210-35640iLN8#,YN8#..T1198809-199408

main48210-35640iLN8#,YN8#..T1199408

main48210-35670iLN100,106,YN100,105198809

main48210-35720iLN85,86,YN85,86..T3198809

main48210-35730iLN8#,YN8#..T1198809-199408

main48210-35740iLN85,86,YN85,86..T2198809

main48210-35750iLN85,YN85..TW1198809-199408

main48210-35760iLN85,YN85..TW1198809-199408

main48210-35760iLN86,YN86..TW1199408

main48210-35830iLN107,YN107..SR199108

sub48210-3D180

main48210-35840iLN107,108,109,112,YN107..SSR,SSRX199108

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18012iLN85,86,YN85,86..RCB;LN107,108,109,112,80,81,YN107,80,81198809

main90385-18013iLN85,86,YN85,86..TW1198809

main90385-18046iLN100,106,YN100,105198809

48210BBUSH(FOR REAR SPRING PIN)

main90385-18046iLN100,106,8#,YN100,105,8#198809-199408

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18046iLN10#,112,8#,YN10#,8#198809

48341BUMPER, REAR SPRING

main48341-35050iLN8#,YN8#..T1,TW1198809-199408

main48341-35060iLN8#,YN8#198809

48382SPACER, BUMPER BLOCK

main48382-35021iLN85,YN85..T1..IV3198810

main48382-35021iLN85,86,YN85,86..T3198809

main48382-35030iLN85,86,YN85,86..T2198809

48414BBRACKET, SPRING, NO.3 RH

main48414-35120iLN107,108,109,112,YN107199108

main48414-35160iLN100,106,8#,YN100,105,8#..T1,TW1198809

main48414-35170iLN85,86,YN85,86..T2,T3198809

48415BBRACKET, SPRING, NO.3 LH

main48414-35160iLN100,106,8#,YN100,105,8#..T1,TW1198809

main48414-35170iLN85,86,YN85,86..T2,T3198809

main48415-35050iLN107,108,109,112,YN107199108

48416BRACKET, SPRING, NO.4

main48416-35051iLN100,106,YN100,105198809

sub48416-35061

main48416-35070iLN107,108,109,112,YN107199108

main48416-35080iLN8#,YN8#198809

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-35030iLN8#,YN8#198809

main48505-35040iLN10#,112,YN10#198809

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48506-35010iLN10#,112,YN10#198809

main48506-35030iLN8#,YN8#198809

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39925iLN8#,YN8#198809-199607

sub48531-80512

main48531-80059iLN10#,YN10#198809-199108

sub48531-80108

main48531-80082iLN13#,YN130198904-199108

sub48531-80502

main48531-80086iLN130,YN130198904-198908

sub48531-80504

main48531-80102iLN13#..SR,SSR199108-199511

sub48531-80509

main48531-80108iLN100,106,YN100199108-199607

sub48531-80515

main48531-80112iLN107,YN107..SR199108-199607

sub48531-80518

main48531-80114iLN107,108,109,112..SSR,SSRX199108-199607

sub48531-80520

main48531-80411iKZN130,LN130,VZN130,YN130198908-199511

sub48531-80511

main48531-80434iYN107..SSR199308-199607

sub48531-80523

main48531-80512iLN8#,YN8#199607-199708

main48531-80515iLN106199607-199708

sub48531-80517

main48531-80518iLN107..SR199607-199708

main48531-80520iLN107,108,109,112..SSR,SSRX199607-199708

main48531-80523iYN107199607-199708

sub48531-80520

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iLN8#,YN8#198809-199708

main90385-19002iKZN130..2D;KZN130..4D..SSR;LN13#,YN130..SR,SSR198809-199708

main90385-19002iKZN130..4D..SSRX199504-199507

main90385-19002iKZN130,VZN130..4D..SSRX199308-199511

main90385-19002iKZN130..4D..SSRX199508-199511

main90385-19004iLN130..SSRX;KZN130,VZN130198904-199511

main90385-19004iLN130..SSR199108-199308

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iLN8#,YN8#198809

main90948-03011iKZN130,LN13#,VZN130,YN130198904-199511

main90948-03015iLN10#,YN10#198809-198904

main90948-03020iLN10#,112,YN10#198904

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03011iLN10#,112,YN10#198809

main90948-03012iLN8#,YN8#198809

main90948-03020iKZN130,LN13#,VZN130,YN130198904-199511

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03011iLN10#,112,YN10#198809

main90948-03012iLN8#,YN8#198809

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iLN8#,YN8#198809

main90948-03015iLN10#,YN10#198809-198904

main90948-03020iLN10#,112,YN10#198904

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39925iLN8#,YN8#198809-199607

sub48531-80512

main48531-80082iLN13#,YN130198904-199108

sub48531-80502

main48531-80086iLN130,YN130198904-198908

sub48531-80504

main48531-80102iLN13#..SR,SSR199108-199511

sub48531-80509

main48531-80411iKZN130,LN130,VZN130,YN130198908-199511

sub48531-80511

main48531-80512iLN8#,YN8#199607-199708

main48541-39085iLN10#,YN10#198809-199108

sub48541-39185

main48541-39185iLN100,106,YN100199108-199607

sub48541-39186

main48541-39186iLN106199607-199708

main48541-39215iLN107,YN107..SR199108-199607

sub48541-39216

main48541-39216iLN107..SR199607-199708

sub48531-80517

main48541-39235iLN107,108,109,112..SSR,SSRX199108-199607

sub48541-39236

main48541-39236iLN107,108,109,112..SSR,SSRX199607-199708

main48541-39255iYN107..SSR199308-199607

sub48541-39256

main48541-39256iYN107199607-199708

sub48541-39236

9011908686

main90119-08686

9011908687

main90119-08687

9011908747

main90119-08747

9017914039

main90179-14039

9020114025

main90201-14025

9020115012

main90201-15012

9161161025

main91611-61025

9411551400

main94115-51400

9451201400

main94512-01400

32 parts on this diagram · 7 diagrams in section
