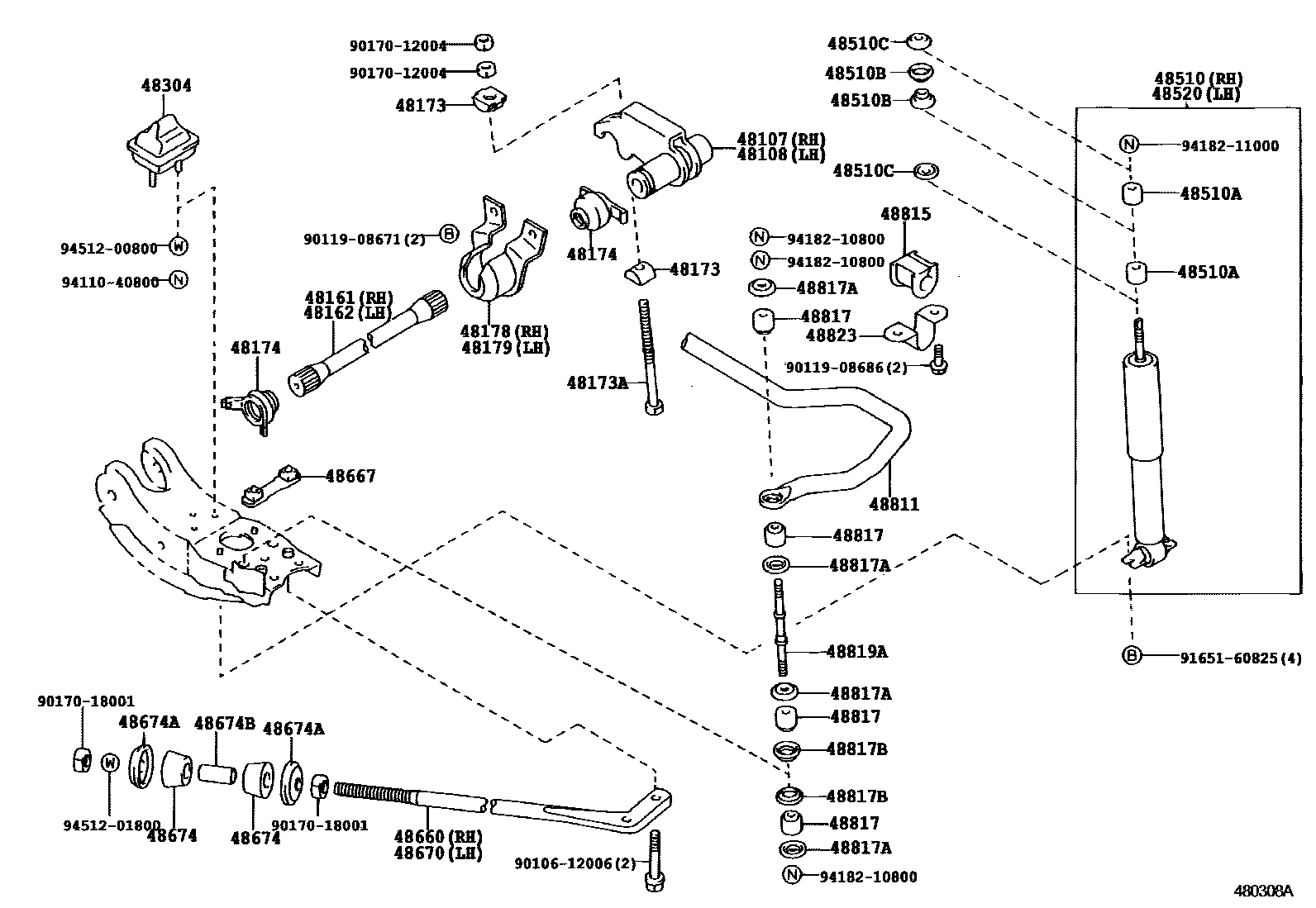

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0007 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-35040iLN8#,YN8#198809-199108

main48107-35050iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main48107-35060iLN8#,YN8#199108

48108ARM SUB-ASSY, ANCHOR, LH

main48108-35040iLN8#,YN8#198809-199108

main48108-35050iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main48108-35060iLN8#,YN8#199108

48161SPRING, TORSION BAR, RH

main48161-35110iYN107..SR199108-199408

main48161-35130iLN107..SR199108

main48161-35180iYN8#198809

main48161-35220iLN8#198809

main48161-35250iYN130198904-199108

main48161-35260iLN13#,VZN130198904-199108

48162SPRING, TORSION BAR, LH

main48162-35110iYN107..SR199108-199408

main48162-35130iLN107..SR199108

main48162-35180iYN8#198809

main48162-35220iLN8#198809

main48162-35250iLN131;KZN130,LN107,108,109,112,130,VZN130,YN107..SSR,SSRX198904-199108

main48162-35260iLN13#,VZN130198904-199108

48173SEAT, ANCHOR ARM ADJUSTER

main48173-35010iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198809

main48173-35020iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main48173-35030iLN8#,YN8#198809

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12104iLN8#,YN8#198809

main90101-12159iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

48174COVER, TORSION BAR DUST

main48174-26010iLN107,13#,VZN130,YN107,130198904-199308

main48174-35010iLN8#,YN8#198809-199108

main48174-35020iLN8#,YN8#198809-199108

main48174-35030iLN8#,YN8#199108

sub48174-35031

48178PROTECTOR, TORSION BAR DUST COVER, RH

main48178-35020iLN8#,YN8#198809-199108

48179PROTECTOR, TORSION BAR DUST COVER, LH

main48178-35020iLN8#,YN8#198809-199108

main48179-35030iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-04010iLN8#,YN8#199208

main48304-35120iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main48304-35130iLN8#,YN8#198809

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-39647iLN107,108,109,112,YN107199607-199708

main48511-39655iLN100,106,YN100,105198809-199607

sub48511-39656

main48511-39656iLN106199607-199708

main48511-39685iLN8#,YN8#198809-199607

sub48511-39686

main48511-39686iLN8#,YN8#199607-199708

sub48511-39687

main48511-39705iLN13#,YN130198904-199108

sub48511-39706

main48511-39745iLN130,YN130198904-198908

sub48511-39746

main48511-39825iLN107,108,109,112,YN107199108-199607

sub48511-39647

main48511-39865iKZN130..SSR199008-199511

sub48511-39866

main48511-39865iLN130,YN130198908-199108

sub48511-39866

main48511-39865iLN130..SSR199108-199308

sub48511-39866

main48511-80006iKZN130..2D..SSRX199108-199511

sub48511-80024

main48511-80006iKZN130..4D..SSRX199501-199511

sub48511-80024

main48511-80006iKZN130..4D..SSRX199508-199511

sub48511-80024

main48511-80006iKZN130..4D..SSRX199504-199507

sub48511-80024

main48511-80006iKZN130,VZN130..4D..SSRX199308-199501

sub48511-80024

main48511-80006iKZN130..4D..SSRX199405-199407

sub48511-80024

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01002iLN8#,YN8#198809

main90948-01003iKZN130..4D..SSRX199308-199511

main90948-01003iKZN130..4D..SSRX198904-199507

main90948-01003iKZN130..4D..SSRX199508-199511

main90948-01003iLN100,106,YN100,105198809

main90948-01026iKZN130,LN130,VZN130..SSRX199108-199511

main90948-01026iLN130,YN130198904-199108

main90948-01026iLN130..SSR199108-199308

main90948-01026iKZN130..SSR199308-199511

main90948-01026iVZN130199008-199108

main90948-01043iKZN130..SSR199308-199511

main90948-01043iLN130,YN130198904-199108

main90948-01043iLN130..SSR199108-199308

main90948-01043iVZN130199008-199108

L=23.5

main90948-01043iKZN130,LN130,VZN130..SSRX199108-199511

main90948-01045iKZN130..4D..SSRX199308-199511

main90948-01045iKZN130..4D..SSRX199508-199511

main90948-01045iLN130..SSR;KZN130..2D;KZN130..4D..SSR;LN107,108,109,112,131,YN107,130198904-199507

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main48597-35010iVZN130;KZN130,LN130..SSRX199008-199511

main48597-35010iLN130,YN130198904-199108

main48597-35010iLN130..SSR199108-199308

main48597-35010iKZN130..SSR199308-199511

main90948-02002iLN10#,YN10#198809-198904

main90948-02005iLN8#,YN8#198809

main90948-02131iKZN130..4D..SSRX199508-199511

main90948-02131iKZN130,VZN130..4D..SSRX199308-199501

main90948-02131iKZN130..4D..SSRX199504-199507

main90948-02131iKZN130..4D..SSRX199501-199511

main90948-02131iLN130..SSR;KZN130..2D;KZN130..4D..SSR;LN10#,112,131,YN10#,130198904

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02069iLN8#,YN8#198809

main90948-02087iLN100,106,YN100,105198809

main90948-02119iKZN130,VZN130..4D..SSRX199308-199501

main90948-02119iKZN130..4D..SSRX199504-199507

main90948-02119iKZN130..4D..SSRX199501-199511

main90948-02119iKZN130..4D..SSRX199508-199511

main90948-02119iLN108,109,112;KZN130,LN107,13#,YN107,130..SR,SSR198904

main90948-02129iLN130,YN130198904-199108

main90948-02129iLN130..SSR199108-199308

main90948-02129iVZN130;KZN130,LN130..SSRX199008-199511

main90948-02129iKZN130..SSR199308-199511

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-39647iLN107,108,109,112,YN107199607-199708

main48511-39655iLN100,106,YN100,105198809-199607

sub48511-39656

main48511-39656iLN106199607-199708

main48511-39685iLN8#,YN8#198809-199607

sub48511-39686

main48511-39686iLN8#,YN8#199607-199708

sub48511-39687

main48511-39705iLN13#,YN130198904-199108

sub48511-39706

main48511-39745iLN130,YN130198904-198908

sub48511-39746

main48511-39825iLN107,108,109,112,YN107199108-199607

sub48511-39647

main48511-39865iKZN130..SSR199008-199511

sub48511-39866

main48511-39865iLN130..SSR199108-199308

sub48511-39866

main48511-39865iLN130,YN130198908-199108

sub48511-39866

main48511-80006iKZN130..4D..SSRX199501-199511

sub48511-80024

main48511-80006iKZN130..4D..SSRX199405-199407

sub48511-80024

main48511-80006iKZN130,VZN130..4D..SSRX199308-199501

sub48511-80024

main48511-80006iKZN130..4D..SSRX199504-199507

sub48511-80024

main48511-80006iKZN130..2D..SSRX199108-199511

sub48511-80024

main48511-80006iKZN130..4D..SSRX199508-199511

sub48511-80024

48660BAR ASSY, STRUT, RH

main48661-35030iLN8#,YN8#198809

48667RETAINER, STRUT BAR

main48667-35020iLN8#,YN8#198809

sub48667-35030

48670BAR ASSY, STRUT, LH

main48671-35030iLN8#,YN8#198809

48674CUSHION, STRUT BAR

main48674-22021iLN8#,YN8#198809

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030iLN8#,YN8#198809

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002iLN8#,YN8#198809

48811BAR, STABILIZER, FRONT

main48811-35210iYN8#199408

main48811-35210iYN8#199008-199408

main48811-35290iYN8#198809-199408

main48811-35320iYN130198904-199108

main48811-35330iLN107,108,109,112,YN107198904-199108

main48811-35350iLN130,VZN130199008-199108

main48811-35370iLN13#,VZN130199108-199511

main48811-35390iKZN130199308-199511

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160iLN107,108,109,112,YN107,81,86198904-199108

main48815-14160iYN8#199008-199408

main48815-20210iLN13#,VZN130199108-199511

main48815-24010iYN8#198809-199408

main48815-24020iYN130198904-199108

main48815-35080iKZN130199308-199511

48817CUSHION, FRONT STABILIZER

main48817-30010iYN8#198809

main90948-01002iKZN130,LN13#,VZN130198904-199511

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iLN107,108,109,112,YN107198904-199511

main90948-02032iYN8#198809

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iYN8#198809

main90948-02034iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

48819ABOLT, FRONT STABILIZER

main48819-35020iYN8#198809

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-35050iYN8#198809

9010612006

main90106-12006

9011908671

main90119-08671

9011908686

main90119-08686

9017012004

main90170-12004

9017018001

main90170-18001

9165160825

main91651-60825

9411040800

main94110-40800

9418210800

main94182-10800

9418211000

main94182-11000

9451200800

main94512-00800

9451201800

main94512-01800

39 parts on this diagram · 5 diagrams in section
