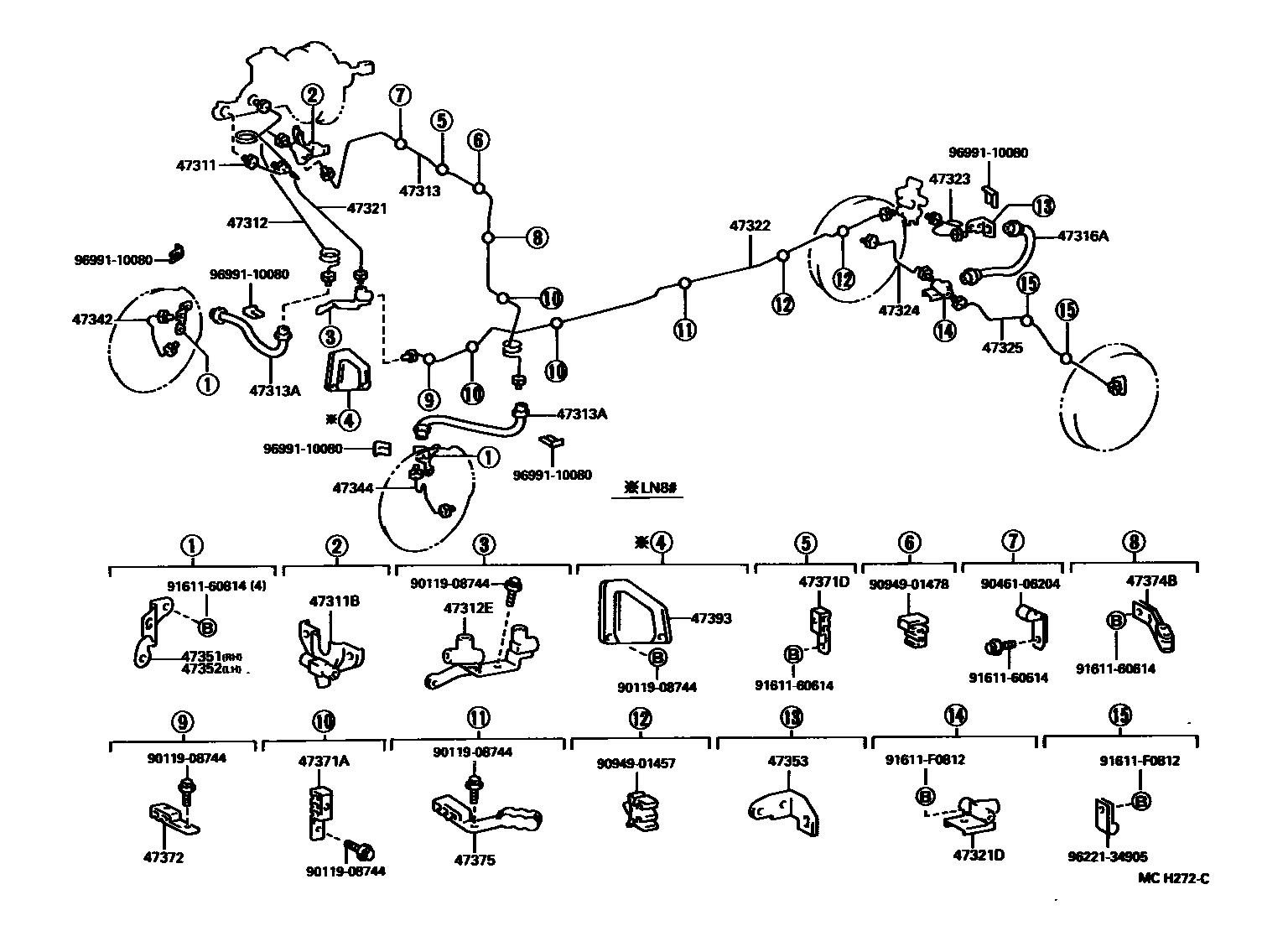

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

47311TUBE, FRONT BRAKE, NO.1

main47311-35450iKZN130,LN10#,112,8#199308

main47311-35460iYN10#,130,8#198809

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10111iLN8#198809

main90413-10194iLN10#,131,VZN130198809-199308

main90413-10226iYN10#,130,8#198809

main90413-10236iLN108,112,130198904

47312TUBE, FRONT BRAKE, NO.2

main47312-35580iYN130198904-199008

main47312-35610iYN100,8#199108

main47312-35620iYN10#198809-199108

main47312-35810iLN10#198809-199108

main47312-35820iLN100,106199108

main47312-35860iLN107,109199108

main47312-35890iYN107199108

main47312-3D130iYN8#198809-199108

main47312-3D140iLN8#198809-199108

main47312-3D150iLN8#199108

main47312-3D160iLN13#198904-199008

main47312-3D180iVZN130199008-199108

main47312-3D190iLN108,112,13#,VZN130199108

main47312-3D200iYN130199008-199108

main47312-3D240iLN13#199008-199108

main47312-3D290iKZN130199308-199511

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10108iLN10#,8#,YN10#,8#198809-199108

main90412-10135iLN13#,YN130198904-199108

main90412-10171iVZN130199008-199108

main90413-10233iLN107,13#,VZN130,YN107199108-199304

main90415-10006iLN100,106,8#,YN100,8#199108

47313TUBE, FRONT BRAKE, NO.3

main47313-35550iLN100,106198809

main47313-35630iYN8#198809-199408

main47313-35640iLN8#198809

main47313-35650iYN100,105198809-199408

main47313-35670iYN130198904-199008

main47313-35690iLN13#198904-199008

main47313-35720iVZN130199008-199511

main47313-35730iYN130199008-199108

main47313-35740iLN107199108-199408

main47313-35800iLN13#199008-199308

main47313-35830iYN107199108-199408

main47313-35840iKZN130199308-199511

main47313-35860iLN108,112199508

main47313-35870iYN107199408

main47313-35880iYN8#199408

main47313-35890iLN107,109199408

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02383×2iLN106199508

main90947-02447×2iLN8#,YN8#199508

main90947-02581×2iLN8#,YN8#198809-199508

main90947-02583×2iLN100,106,YN100,105198809-199507

main96950-33555×2iKZN130,LN107,108,109,112,VZN130,YN107199508

main96950-33656×2iKZN130,LN107,109,130,VZN130,YN107199304-199507

sub96950-33657

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02599iKZN130,LN13#,VZN130,YN130198904-199508

main90947-02600iKZN130,VZN130199508-199511

main96940-34205iLN8#,YN8#199508

main96940-34206iLN8#,YN8#198809-199508

main96940-34305iLN10#,112,YN107199508

main96940-34406iLN10#,YN10#198809-199508

sub96940-34405

47321TUBE, REAR BRAKE, NO.1

main47321-35330iYN130198904-199108

main47321-35460iYN100,105,8#198809

main47321-35480iLN100,106,8#198809

main47321-35520iLN107,109199108

main47321-35630iLN13#198904-199108

main47321-35660iVZN130199008-199108

main47321-35680iYN107199108

main47321-35690iKZN130199308-199511

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10162iLN10#,112,YN10#198809

main90413-10198iLN8#,YN8#198809

main90413-10235iKZN130,LN13#,VZN130,YN130198904-199511

47322TUBE, REAR BRAKE, NO.2

main47322-35370iLN100,YN100198809-199408

main47322-35380iLN106,YN105198809

main47322-35450iLN107,108,109,112,YN107199108

main47322-35470iLN13#,VZN130,YN130198904-199308

main47322-35490iLN80,81,YN80,81198809

main47322-35510iLN85,86,YN85,86..RCB198809

main47322-35560iLN85,86,YN85,86..TW1198809

main47322-35660iKZN130,VZN130199308-199403

main47322-35661iKZN130,VZN130199403-199511

47323TUBE, REAR BRAKE, NO.3

main47323-35100iLN8#,YN8#198809

main47323-35110iKZN130,LN13#,VZN130,YN130198904-199511

main47323-35120iLN10#,112,YN10#198809

47324TUBE, REAR BRAKE, NO.4

main47324-35150iLN85,86,YN85,86..T2198809

main47324-35160iLN107,108,109,112,YN107199108

main47324-35170iLN100,106,YN100,105198809

main47324-35200iLN8#,YN8#..T1,T3,TW1198809-199408

main47324-35220iKZN130,LN13#,VZN130,YN130198904-199511

main47324-35230iLN8#,YN8#..T1,T3,TW1199408

47325TUBE, REAR BRAKE, NO.5

main47325-35160iLN85,86,YN85,86..T2198809

main47325-35170iLN107,108,109,112,YN107199108

main47325-35180iLN100,106,YN100,105198809

main47325-35210iLN8#,YN8#..T1,T3,TW1198809-199408

main47325-35230iKZN130,LN13#,VZN130,YN130198904-199511

main47325-35250iLN8#,YN8#..T1,T3,TW1199408

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47341-35100iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main47341-35110iLN8#,YN8#198809

main47341-35120iLN100,106,YN100,105198809

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47343-35100iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main47343-35110iLN8#,YN8#198809

main47343-35120iLN100,106,YN100,105198809

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35120iLN100,106,YN100,105198809

main47351-35170iLN8#,YN8#198809

main47352-35170iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35190iLN8#,YN8#198809

main47353-35080iLN100,106,YN100,105198809

main47354-35080iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47352-35200iLN8#,YN8#198809

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35070×2iLN13#198904-199108

main47371-35080×2iKZN130,LN107,108,109,112,VZN130,YN107199409

47371DCLAMP, BRAKE TUBE, NO.8

main47372-35080iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

47372CLAMP, BRAKE TUBE, NO.2

main47372-35030iKZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8#198809

47374BCLAMP, BRAKE TUBE, NO.4

main47373-35040iYN107199108-199409

main47373-35050iKZN130,LN107,108,109,112,VZN130,YN107199409

main47374-35020iLN10#,112,13#,8#,YN10#,130,8#198809

47375CLAMP, BRAKE TUBE, NO.5

main47372-35120iKZN130,LN13#,VZN130,YN130198904-199511

main47375-35060iLN85,86..TW1198809

main47375-35070iLN8#..RCB198809

main47375-35080iYN85..TW1198809-199408

main47375-35090iYN8#..RCB199408

main47375-35100iYN8#..RCB198809-199408

main47375-35110iYN86..TW1199408

47393INSULATOR, BRAKE TUBE HEAT

main47393-35051iLN8#198809

main47393-35060iLN100,106198809

main47393-35080iLN107,13#198904-199304

main47393-35110iVZN130,YN107,130198904

main47393-35140iKZN130199308-199511

9011908744

main90119-08744

9046106204

main90461-06204

9094901457

main90949-01457

9094901478

main90949-01478

9161160614

main91611-60614

9161160814

main91611-60814

91611F0812

main91611-F0812

9622134905

main96221-34905

9699110080

main96991-10080

33 parts on this diagram · 11 diagrams in section
