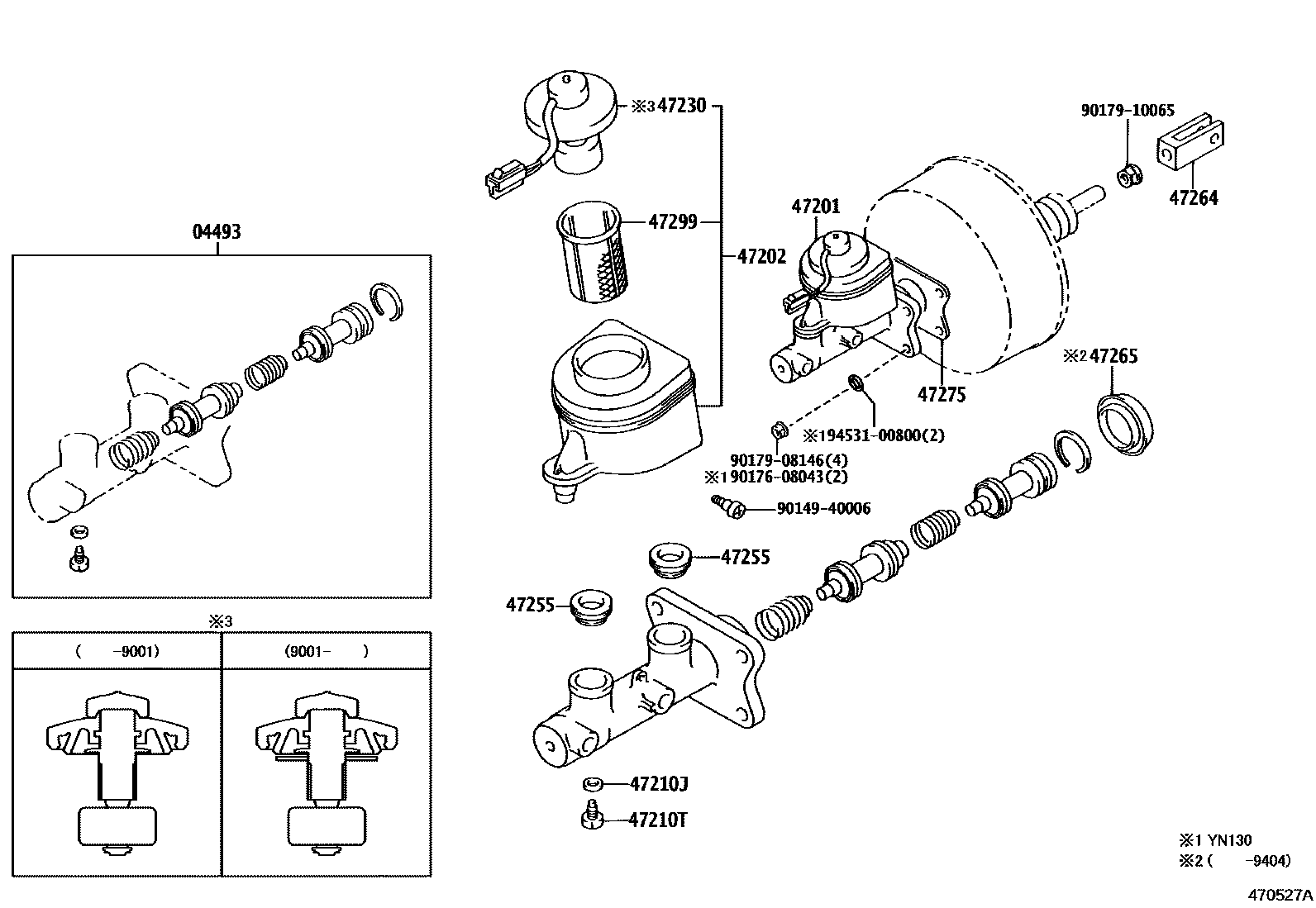

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-25060iLN106,107,YN107199408-199511

main04493-35280iLN10#,YN10#198809-199108

main04493-35290iLN13#,8#,VZN130,YN130,8#198809-199108

main04493-35320iLN109199108-199511

sub04493-25060

main04493-60240iKZN130199308-199511

main04493-60280iLN108,112,13#,8#,VZN130,YN8#199108

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-35620iYN10#198809-199108

sub47201-3D040

main47201-35750iLN10#198809-199108

main47201-35770iYN130,8#198809-199108

sub47201-35640

main47201-35790iLN131,8#,VZN130198809-199108

main47201-35810iLN130198904-199108

main47201-3D040iYN10#199108-199308

main47201-3D050iLN10#199108-199308

main47201-3D060iYN8#199108-199308

main47201-3D070iLN131,8#,VZN130199108-199308

main47201-3D080iLN130199108-199308

main47201-3D140iYN8#199308-199408

sub47201-3D141

main47201-3D150iYN10#199308-199408

sub47201-3D151

main47201-3D160iLN10#199308-199408

sub47201-3D161

main47201-3D161iLN106,107199408

main47201-3D210iLN8#,VZN130199308-199408

sub47201-3D211

main47201-3D211iLN8#199408

main47201-3D230iKZN130199308-199408

sub47201-3D231

main47201-3D231iKZN130199408-199511

main47201-3D270iYN8#199408

sub47201-3D141

main47201-3D280iYN107199408

sub47201-3D151

main47201-3D290iLN109199408

sub47201-3D161

main47201-3D300iVZN130199408-199511

sub47201-3D211

main47201-3D310iLN108,112199508

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-34020iLN108,109,112,VZN130,YN107,8#199408-199511

sub47220-35010

main47202-35210iYN10#,130,8#198809-199108

main47202-35220iLN10#,13#,8#,VZN130,YN10#,8#198809-199308

main47202-35320iKZN130,LN10#,8#,YN10#,8#199308-199408

sub47202-35321

main47202-35321iKZN130,LN106,107,8#199408

sub47220-60080

main47220-35010iLN108,109,112,YN107,8#199511

sub47220-60080

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iLN108,109,112,VZN130,YN107,8#199408

main47230-20100iKZN130,LN10#,8#,VZN130,YN10#,8#199308-199408

sub47230-47090

main47230-20140iKZN130,LN106,107,8#199408

main84460-12070iLN10#,13#,8#,YN10#,130,8#198809-199001

main84460-35040iLN10#,13#,8#,VZN130,YN10#,130,8#199001-199308

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLN10#,8#,YN10#,8#198809-199308

main47264-28010iLN100,106,107,109,8#,YN10#,8#199308

main47264-30040iLN13#,VZN130,YN130198904-199108

main47264-50010iLN13#,VZN130199108-199308

47265BOOT, MASTER CYLINDER

main47265-20050iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199404

main47265-22030iKZN130199308-199404

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iKZN130,LN10#,112,8#,VZN130,YN10#,8#199308

main47299-32010iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199308

9014940006

main90149-40006

9017608043

main90176-08043

9017908146

main90179-08146

9017910065

main90179-10065

9453100800

main94531-00800

16 parts on this diagram · 2 diagrams in section
