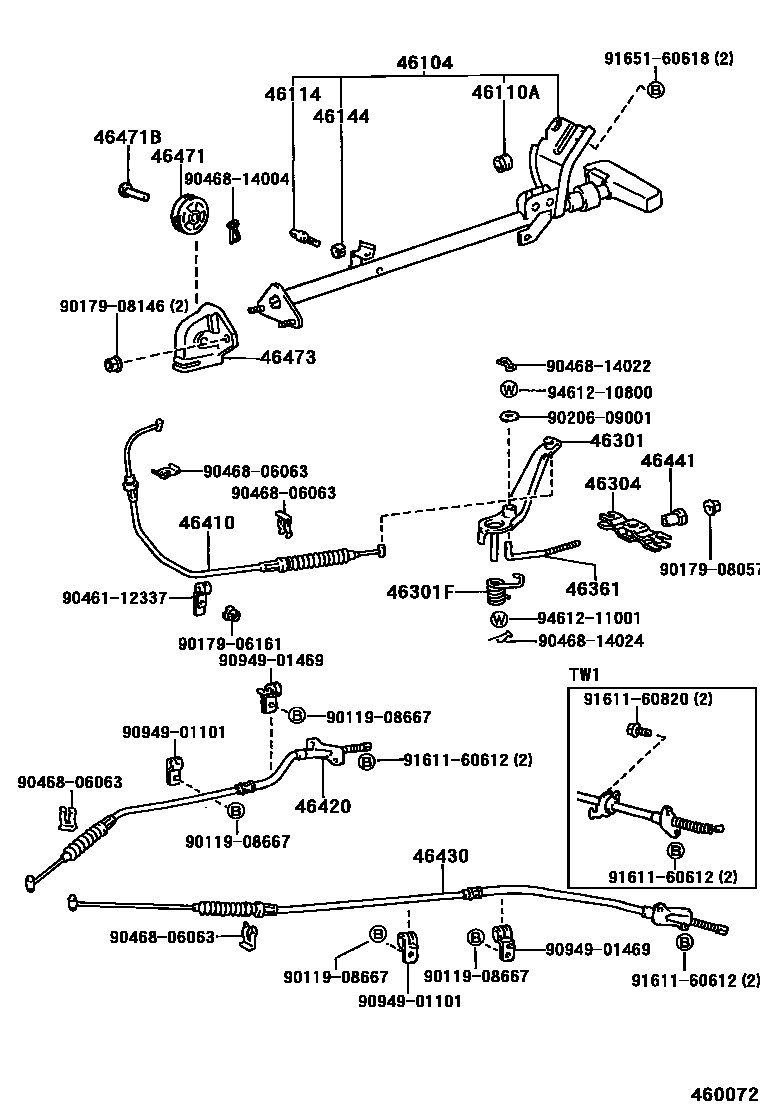

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-35020iVZN130199008-199511

main46110-35230iKZN130,LN10#,112,13#,8#,YN10#,130,8#198809

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-35160iLN86,YN86..T2;LN80,85,YN80,85198809

main46301-35190iLN100,106,YN100,105198809

main46301-35200iLN107,108,109,112,YN107199108

main46301-35210iLN13#,VZN130,YN130198904-199108

main46301-35220iKZN130,LN13#,VZN130199108-199511

main46301-35250iLN8#,YN8#..T1,T3,TW1199408

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-32008iLN8#,YN8#198809

main90508-35033iLN13#..5F;VZN130,YN130198904-199009

sub90508-38002

main90508-35037iKZN130,LN130..4FC199008-199511

main90508-38002iVZN130;KZN130,LN13#,YN130..5F199009-199511

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iLN8#,YN8#198809

main46304-35010iKZN130,LN13#,VZN130,YN130198904-199511

main46341-35030iLN10#,112,YN10#198809

46361ROD, PARKING BRAKE PULL

main46361-35070iLN8#,YN8#198809

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35410iYN8#198809

main46410-35420iLN8#198809

main46410-35430iYN100198809-199408

main46410-35440iLN100198809-199408

main46410-35450iYN105198809-199108

main46410-35460iLN106198809

main46410-35590iYN130198904-199108

main46410-35600iLN13#198904-199308

sub46410-35730

main46410-35670iVZN130199008-199511

main46410-35690iYN107199108

main46410-35700iLN107,108,109,112199108

main46410-35730iKZN130199308-199511

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35430iLN85,86,YN85,86..T2198809

main46420-35460iLN80,YN80198809-199408

main46420-35470iLN85,YN85..T1,T3198809-199408

main46420-35480iLN85,YN85..TW1198809-199408

main46420-35490iLN100,106,YN100,105198809

main46420-35500iLN107,108,109,112,YN107199108

main46420-35520iKZN130,LN13#,VZN130,YN130198904-199511

main46420-35570iLN81,YN81199408

main46420-35580iLN86,YN86..T1,T3199408

main46420-35590iLN86,YN86..TW1199408

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35340iLN85,86,YN85,86..T2198809

main46430-35370iLN80,YN80198809-199408

main46430-35380iLN85,YN85..T1,T3198809-199408

main46430-35390iLN85,YN85..TW1198809-199408

main46430-35400iKZN130,LN13#,VZN130,YN130198904-199511

main46430-35430iLN81,YN81199408

main46430-35440iLN86,YN86..T1,T3199408

main46430-35450iLN86,YN86..TW1199408

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030iKZN130,LN10#,112,13#,VZN130,YN10#,130198809

main46441-35010iLN8#,YN8#198809

46471PULLEY, WIRE

main46471-20010iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iVZN130199008-199511

main90240-08070iKZN130,LN10#,112,13#,8#,YN10#,130,8#198809

46473BRACKET, PULLEY

main46473-35020iKZN130,LN10#,112,13#,8#,YN10#,130,8#198809

9011908667

main90119-08667

9017906161

main90179-06161

9017908057

main90179-08057

9017908146

main90179-08146

9020609001

main90206-09001

9046112337

main90461-12337

9046806063

main90468-06063

9046814004

main90468-14004

9046814022

main90468-14022

9046814024

main90468-14024

9094901101

main90949-01101

9094901469

main90949-01469

9161160612

main91611-60612

9161160820

main91611-60820

9165160618

main91651-60618

9461210800

main94612-10800

9461211001

main94612-11001

32 parts on this diagram · 4 diagrams in section
