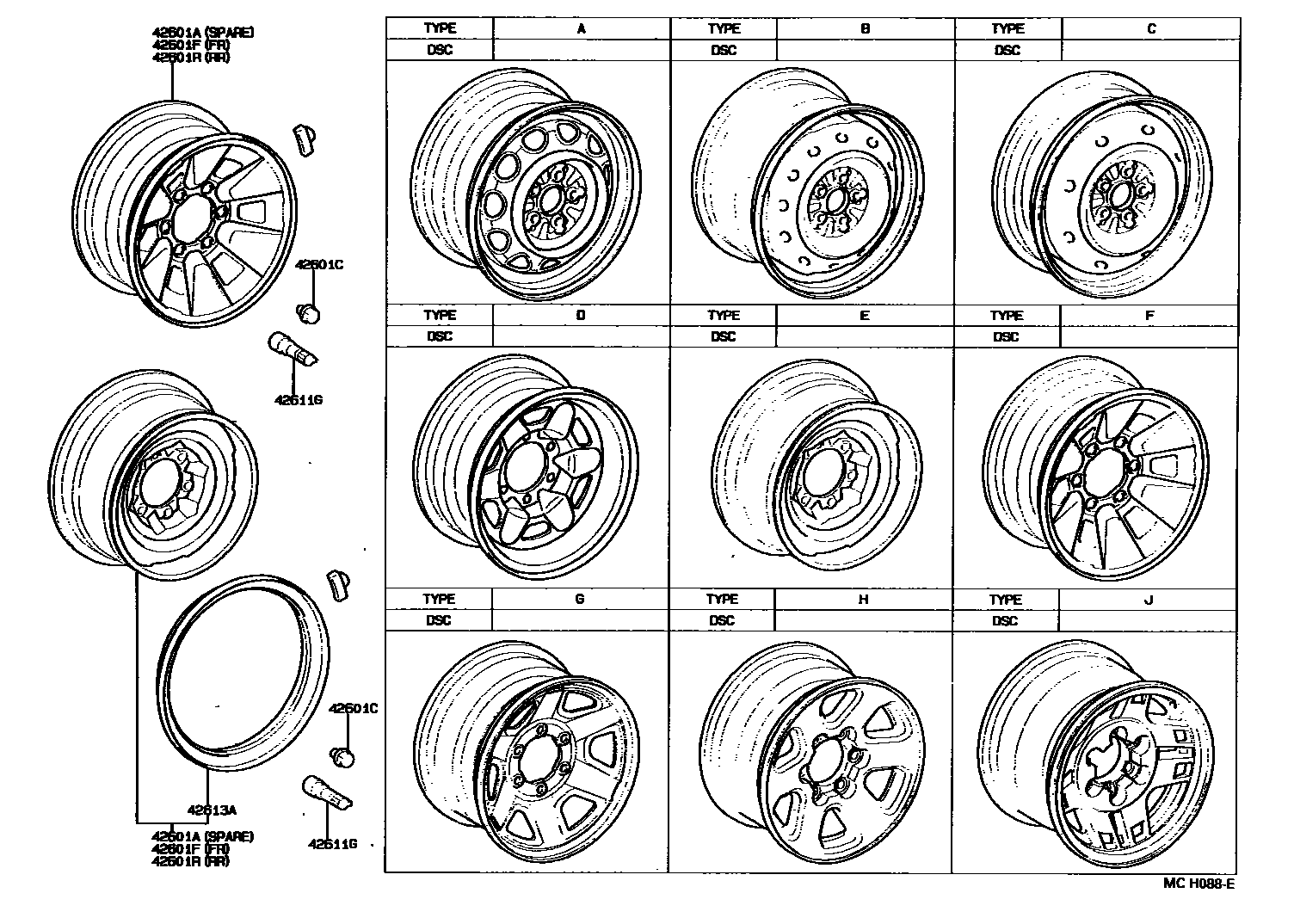

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601AWHEEL, DISC (FOR SPARE)

main42601-04020iLN109199408-199412

sub42601-35620

main42601-26250iLN8#,YN8#..(T1,T3,TW1)..(DLX,SDX)198809-199001

main42601-26261-03iLN85,86,YN85,86..T2198809-199708

sub42601-26261

main42601-26350-03iLN8#,YN8#..T1,T3,TW1199001-199708

sub42601-26250

main42601-35142-03iLN86,YN86..T2;LN80,85,YN80,85..T1,T2,TW1198809-199708

sub42601-35142

main42601-35510-03iLN131198904-199108

sub42601-35510

main42601-35520iLN130,VZN130,YN130198904-199108

main42601-35540-03iLN100,106,YN100,105198809-199708

sub42601-35540

main42601-35620iKZN130,VZN130..4D..SSRX199308-199511

sub42601-35621

main42601-35620iLN109,112199408-199708

sub42601-35621

main42601-35630iLN108;KZN130,LN107,YN107..SSR199108-199708

main42601-35640-03iLN108;YN107..SR;KZN130,LN107,13#,YN107..(SR,SSR)..(DSL,EFI,TDE)199108-199708

sub42601-35650

main42601-35700iLN109,112199408-199708

main42601-60221iLN106..TW1198912-199001

main42610-60030-03iLN10#,YN10#198809-199008

sub42610-60030

main42611-34010iYN107..SSR199308-199408

main42611-34010iKZN130..SSR199308-199511

main42611-35060iLN130..SSR199108-199308

sub42611-34010

main42611-35070iKZN130,LN130,VZN130..SSRX199108-199511

42601CNUT, HUB (FOR AXLE)

main90942-01007iLN10#,YN10#198809-199008

main90942-01048iLN10#,YN10#198809-198902

main90942-01058iKZN130..SSRX199508-199511

main90942-01061iLN8#,YN8#198809-199408

main90942-01075iLN13#,YN130198904-199008

main90942-01075iLN10#,YN10#198902-199008

main90942-01075iKZN130,VZN130..4D..SSRX199308-199511

main90942-01077iKZN130,LN130..SSR199108-199511

main90942-01082iLN8#,YN8#199408

42601FWHEEL, DISC (FOR FRONT)

main42601-04020iKZN130,LN109,VZN130..(4D,TW1)..SSRX199408-199412

sub42601-35620

main42601-26250iLN8#,YN8#..(T1,T3,TW1)..(DLX,SDX)198809-199001

main42601-26350-03iLN8#,YN8#..T1,T3,TW1199001-199708

sub42601-26250

main42601-35142-03iLN86,YN86..T2;LN80,85,YN80,85..T1,T2,TW1198809-199708

sub42601-35142

main42601-35510-03iLN131198904-199108

sub42601-35510

main42601-35520iLN130,VZN130,YN130198904-199108

main42601-35540-03iLN100,106,YN100,105198809-199708

sub42601-35540

main42601-35550-03iLN130,VZN130..SSRX199110-199511

sub42601-60262

main42601-35620iLN109,112199408-199708

sub42601-35621

main42601-35620iKZN130,VZN130..4D..SSRX199308-199511

sub42601-35621

main42601-35630iYN107..SR;KZN130,LN107..SR,SSR199108-199708

main42601-35640-03iLN108;YN107..SR;KZN130,LN107,13#,YN107..(SR,SSR)..(DSL,EFI,TDE)199108-199708

sub42601-35650

main42601-35700iLN109,112199408-199708

main42601-60221iLN106..TW1198912-199001

main42610-60030-03iLN10#,YN10#198809-199008

sub42610-60030

main42611-34010iKZN130..SSR199308-199511

main42611-34010iYN107..SSR199308-199408

main42611-35060iLN130..SSR199108-199308

sub42611-34010

main42611-35070iKZN130,LN130,VZN130..SSRX199108-199511

42601RWHEEL, DISC (FOR REAR)

main42601-04020iKZN130,LN109,VZN130..(4D,TW1)..SSRX199408-199412

sub42601-35620

main42601-26250iLN8#,YN8#..(T1,T3,TW1)..(DLX,SDX)198809-199001

main42601-26261-03iLN85,86,YN85,86..T2198809-199708

sub42601-26261

main42601-26350-03iLN8#,YN8#..(T1,T3,TW1)..(DLX,SDX)199001-199708

sub42601-26250

main42601-35142-03iLN8#,YN8#..T1,TW1198809-199408

sub42601-35142

main42601-35510-03iLN131198904-199108

sub42601-35510

main42601-35520iLN130,VZN130,YN130198904-199108

main42601-35540-03iLN100,106,YN100,105198809-199708

sub42601-35540

main42601-35550-03iLN130,VZN130..SSRX199110-199511

sub42601-60262

main42601-35620iLN109,112199408-199708

sub42601-35621

main42601-35620iKZN130,VZN130..4D..SSRX199308-199511

sub42601-35621

main42601-35630iLN108;KZN130,LN107,YN107..SSR199108-199708

main42601-35640-03iLN108;YN107..SR;KZN130,LN107,13#,YN107..(SR,SSR)..(DSL,EFI,TDE)199108-199708

sub42601-35650

main42601-35700iLN109,112199408-199708

main42601-60221iLN106..TW1198912-199001

main42610-60030-03iLN10#,YN10#198809-199008

sub42610-60030

main42611-34010iYN107..SSR199308-199408

main42611-34010iKZN130..SSR199308-199511

main42611-35060iLN130..SSR199108-199308

sub42611-34010

main42611-35070iKZN130,LN130,VZN130..SSRX199108-199511

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iLN8#,YN8#..(T1,T3,TW1)..(DLX,SDX)198809-199308

main90942-05009iLN85,86,YN85,86..T2198809

main90942-05023iLN85,86,YN85,86..T2198809

42613ARING, DISC WHEEL SIDE

main42613-35010iLN10#,YN10#198809-199008

6 parts on this diagram · 4 diagrams in section
