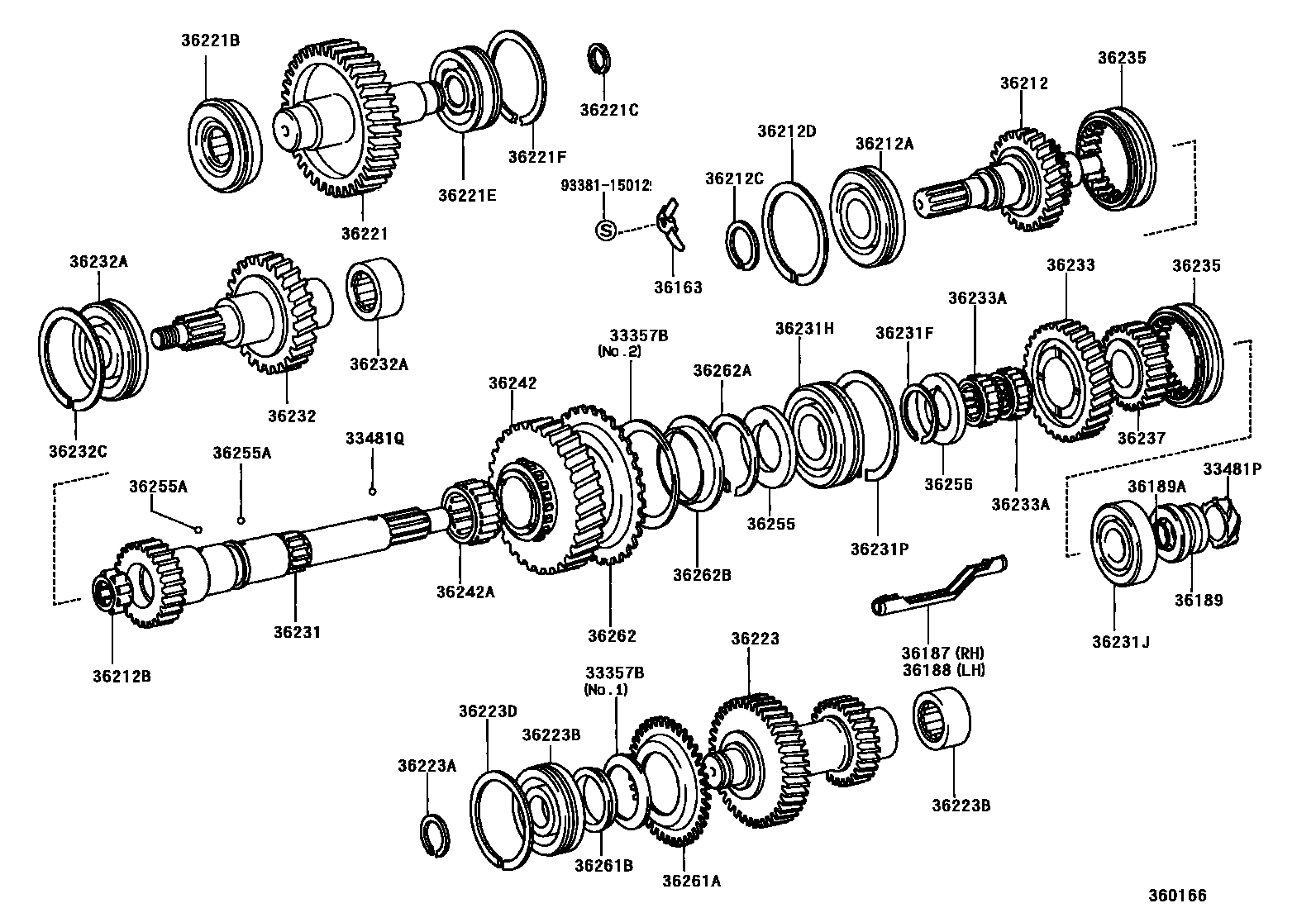

TRANSFER GEAR
33357BSPRING, SUB GEAR THRUST
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)
36163STOPPER, TRANSFER FRONT BEARING
36187PIPE, TRANSFER OIL SUPPLY, RH
36188PIPE, TRANSFER OIL SUPPLY, LH
36189SCREW, TRANSFER OIL PUMP
36189ARING, O (FOR TRANSFER OIL PUMP SCREW)
36212GEAR, TRANSFER INPUT
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
36221GEAR, TRANSFER IDLER
36221BBEARING (FOR TRANSFER IDLER GEAR)
36221CRING, SHAFT SNAP (FOR TRANSFER IDLER GEAR)
36221EBEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR)
36221FRING, SHAFT SNAP (FOR TRANSFER IDLER GEAR BEARING)
36223GEAR, TRANSFER COUNTER
36223ARING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR)
36223BBEARING (FOR TRANSFER COUNTER GEAR)
36223DRING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR BEARING)
36231SHAFT, TRANSFER OUTPUT, REAR
sub36202-35021
sub36202-35021
sub36231-35030
sub36231-71010
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231PRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT FRONT BEARING)
36232GEAR, TRANSFER FRONT DRIVE
36232ABEARING (FOR TRANSFER FRONT DRIVE GEAR)
36232CRING, SHAFT SNAP (FOR TRANSFER FRONT DRIVE GEAR BEARING)
36233GEAR, TRANSFER DRIVE
36233ABEARING, NEEDLE ROLLER (FOR TRANSFER DRIVE GEAR)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36242GEAR, TRANSFER LOW
36242ABEARING, NEEDLE ROLLER (FOR TRANSFER LOW GEAR)
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
36256SPACER, TRANSFER OUTPUT SHAFT, NO.2
36261ASUB-GEAR, TRANSFER, NO.1
36261BSPACER (FOR TRANSFER SUB-GEAR NO.1
36262SUB-GEAR, TRANSFER, NO.2
36262ARING, SNAP (FOR TRANSFER SUB-GEAR NO.2
36262BSPACER (FOR TRANSFER SUB-GEAR NO.2)
9338115012
main93381-15012
45 parts on this diagram · 4 diagrams in section
