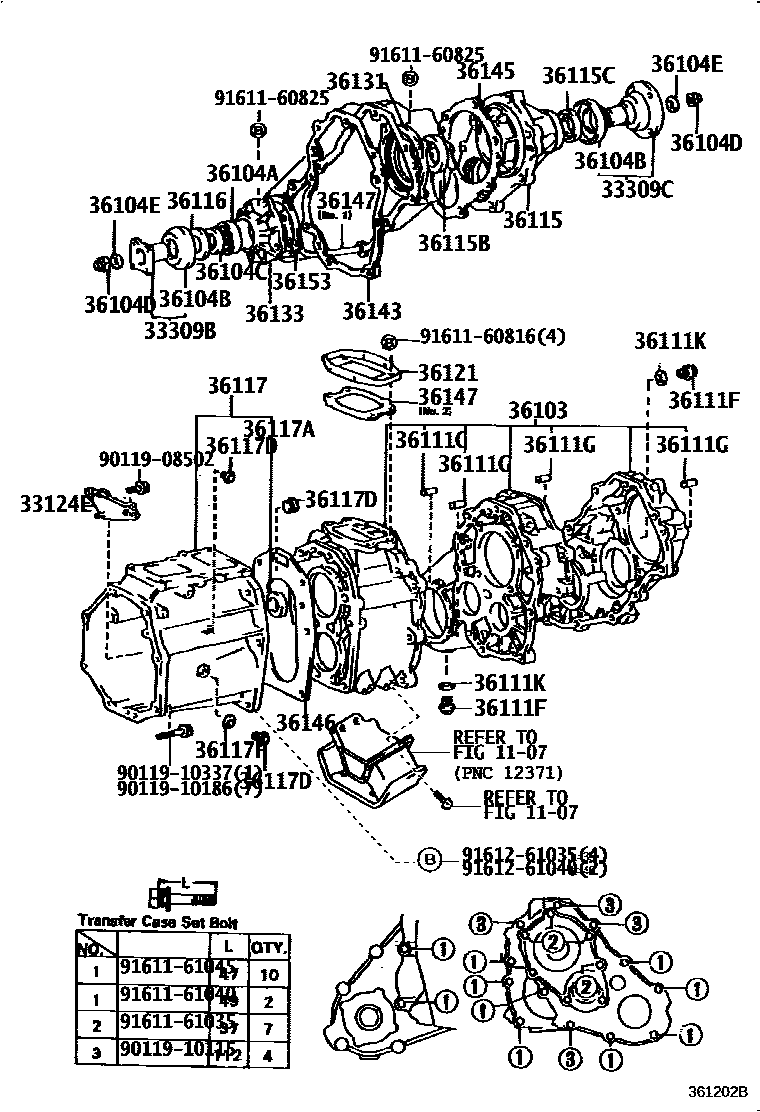

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1

1107

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33124-35020iLN100,106,107,YN10#198809-199708

main33124-35070iLN107..SSR199108-199708

main33124-35070iYN107199408-199708

main33124-35070iLN109,131,YN130..5F198904-199708

main33124-35100iKZN130,VZN130..5F199405-199511

main33124-36010iLN107..SSR199108-199708

main33124-36010iKZN130,LN130,VZN130..5F198904-199405

main33124-36010iLN109,131,YN130..5F198904-199708

main33124-36010iYN107199408-199708

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35030iLN100,106,107,YN10#198809

main33309-35061iVZN130,YN130..5F;KZN130,LN108,109,112,13#198904

sub33309-35063

sub90311-41017

main33309-35061iLN107,YN107..SSR..(DSL,EFI)199108

sub33309-35063

sub90311-41017

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35040iLN100,106,107,YN10#198809

main33309-35080iVZN130,YN130..5F;KZN130,LN108,109,112,13#198904-199601

sub33309-35100

main33309-35080iLN107,YN107..SSR..(DSL,EFI)199108-199601

sub33309-35100

main33309-35100iLN108,109,112199601

36103CASE SUB-ASSY, TRANSFER

main36103-35031iLN100,106,107,YN10#198809

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90311-38016iLN100,106,107,YN10#198809

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-35020iLN100,106,107,YN10#198809

36104CSEAL, DUST (FOR TRANSFER OUTPUT SHAFT)

main90303-38010iLN100,106,107,YN10#198809

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20001iLN100,106,107,YN10#198809

main90179-22016iVZN130,YN130..5F;KZN130,LN108,109,112,13#198904

main90179-22016iLN107,YN107..SSR..(DSL,EFI)199108

36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

main90201-20005iLN100,106,107,YN10#198809

36111CASE, TRANSFER

main36111-35080iLN107,108,109,112,YN107..SSR,SSRX199601

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iLN108..SSRX;LN107,109,112,YN107..SSR,SSRX198809-199601

main90341-18006iLN107,YN107..SSR..(DSL,EFI)199108-199601

main90341-18006iLN108..SSRX199508-199601

FIFFER

main90341-18006iLN106,107,YN107199601

main90341-18057iLN106,107,YN107198809-199601

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iVZN130,YN130..5F;KZN130,LN108,109,112,13#198904

main90250-10214iLN107,YN107..SSR..(DSL,EFI)199108

main90250-10232iLN100,106,107,YN10#198809

36111KGASKET (FOR TRANSFER CASE)

main90430-18008iLN100,106,107,YN10#198809

36115HOUSING, TRANSFER EXTENSION

main36105-35020iLN107,YN107..SSR..(DSL,EFI)199108

sub36105-35040

main36105-35020iVZN130,YN130..5F;KZN130,LN108,109,112,13#198904

sub36105-35040

main36115-35010iLN100,106,107,YN10#198809

36115BSEAL, TYPE V OIL (FOR TRANSFER EXTENSION HOUSING)

main90312-48001iLN100,106,107,YN10#198809

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38140iLN100,106,107,YN10#198809

main90311-41005iKZN130,LN13#;VZN130,YN130..5F198904-199406

sub90311-41007

main90311-41005iLN107..SSR199108-199406

sub90311-41007

main90311-41007iLN107,YN107..SSR..(DSL,EFI)199406

sub90311-41020

36116RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL

main33145-30010iLN100,106,107,YN10#198809

36117ADAPTER, TRANSFER

main36107-35071iVZN130..5F199008-199011

sub36107-35072

sub90930-03075

main36107-35072iVZN130..5F199011-199208

sub36107-35150

sub33521-35240

main36107-35091iLN10#,YN10#198809-199011

sub36107-35092

main36107-35092iLN100,106,107,YN10#199011-199708

main36107-35110iLN130198904-199008

sub36107-35111

main36107-35111iKZN130,LN130..5F199008-199405

main36107-35120iLN107..SSR199108-199708

main36107-35120iLN109,131,YN130..5F198905-199708

main36107-35120iYN107199408-199708

main36107-35150iVZN130..5F199208-199405

main36107-35180iVZN130..5F199405-199511

main36107-35190iKZN130..5F199405-199511

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-32009iLN100,106,107,YN10#198809-199708

main90311-40007iYN107199408-199708

main90311-40007iKZN130,LN109,13#,VZN130,YN130..5F198904-199708

main90311-40007iLN107..SSR199108-199708

36117DPLUG(FOR TRANSFER ADAPTER)

main90341-18006iLN100,106,107,YN10#198809-199708

main90341-30003iLN100,106,107,YN10#198809-199708

main90930-03075iKZN130..5F199506-199511

main90930-03085iLN109,131,YN130..5F198904-199708

main90930-03085iLN107..SSR199108-199708

main90930-03085iYN107199408-199708

main90930-03114iVZN130..5F199008-199506

36117FGASKET(FOR TRANSFER ADAPTER PLUG)

main90430-18008iLN100,106,107,YN10#198809-199708

36121COVER, TRANSFER CASE, NO.1

main36102-35020iYN130..5F;KZN130,LN108,109,112,13#198904

sub36102-35040

main36102-35020iLN107,YN107..SSR..(DSL,EFI)199108

sub36102-35040

main36121-35010iLN100,106,107,YN10#198809

36131RETAINER, TRANSFER OUTPUT SHAFT FRONT BEARING

main36131-35010iLN100,106,107,YN10#198809

36133RETAINER, TRANSFER FRONT DRIVE GEAR BEARING

main36133-35010iLN100,106,107,YN10#198809

36143GASKET, TRANSFER CASE, FRONT

main36143-35010iLN100,106,107,YN10#198809

main36143-35030iVZN130..5F199008-199511

36145GASKET, TRANSFER EXTENSION HOUSING

main36145-35010iLN100,106,107,YN10#198809

36146GASKET, TRANSFER REDUCTION CASE

main36146-35021iLN100,106,107,YN10#198809

36147GASKET, TRANSFER CASE

main36141-35010iLN100,106,107,YN10#198809

main36147-35010iLN100,106,107,YN10#198809

36153GASKET, FRONT DRIVE GEAR BEARING RETAINER

main36153-35010iLN100,106,107,YN10#198809

9011908502

main90119-08502

9011910115

main90119-10115

9011910186

main90119-10186

9011910337

main90119-10337

9161160816

main91611-60816

9161160825

main91611-60825

9161161035

main91611-61035

9161161040

main91611-61040

9161161045

main91611-61045

9161261035

main91612-61035

9161261040

main91612-61040

41 parts on this diagram · 8 diagrams in section
