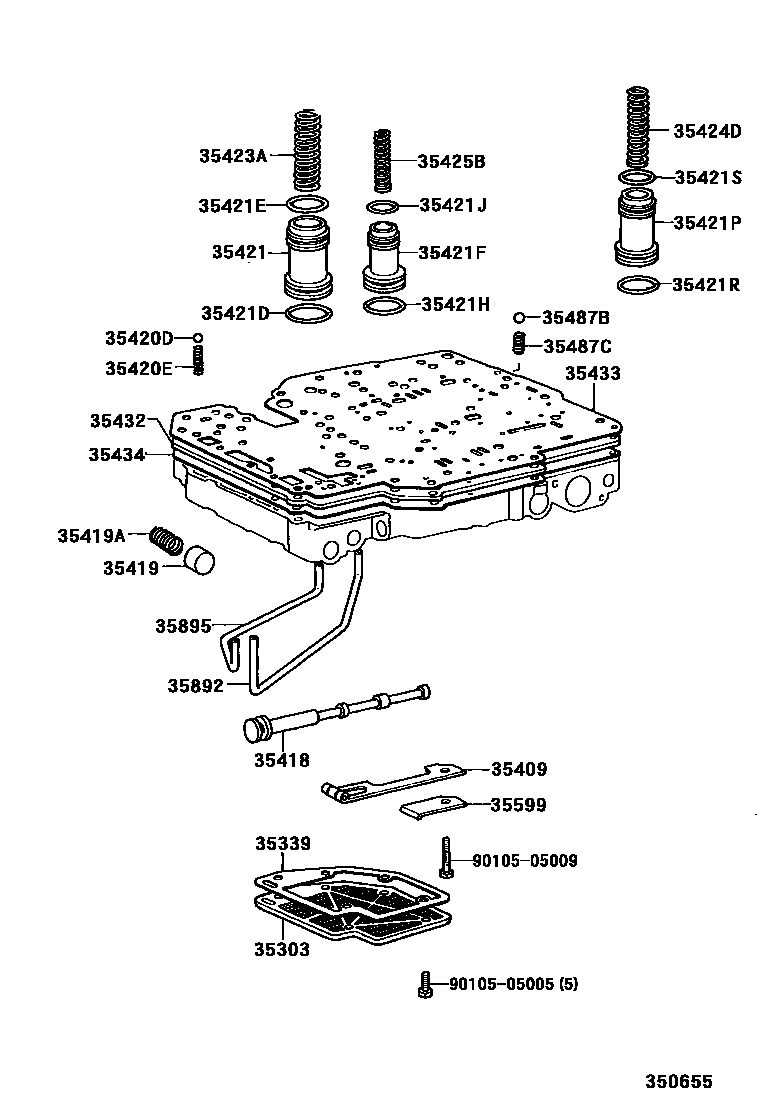

VALVE BODY & OIL STRAINER (ATM)
35303STRAINER SUB-ASSY, OIL
35409SPRING SUB-ASSY, MANUAL DETENT
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420BODY ASSY, LOWER VALVE
35420DBALL (FOR LOWER VALVE BODY)
35420ESPRING (FOR LOWER VALVE BODY)
35421PISTON, ACCUMULATOR, NO.1
35421DRING (FOR ACCUMULATOR PISTON NO.1)
35421ERING (FOR ACCUMULATOR PISTON NO.1)
35421FPISTON, ACCUMULATOR, NO.2
35421HRING (FOR ACCUMULATOR PISTON NO.2)
35421JRING (FOR ACCUMULATOR PISTON NO.2)
sub90301-18010
35421PPISTON, ACCUMULATOR, NO.3
35421RRING (FOR ACCUMULATOR PISTON NO.3)
35421SRING (FOR ACCUMULATOR PISTON NO.3)
35423PISTON, B-2 ACCUMULATOR
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35425SEAT, PRESSURE REGULATOR VALVE SLEEVE
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35432PLATE, VALVE BODY, NO.1
35433GASKET, VALVE BODY, NO.1
35434GASKET, VALVE BODY, NO.2
35487BBALL, CHECK, NO.4
35487CSPRING, COMPRESSION (FOR CHECK BALL)
35599COVER, MANUAL DETENT SPRING
35892TUBE, OVERDRIVE BRAKE
35895TUBE, FRONT CLUTCH APPLY
9010505005
main90105-05005
9010505009
main90105-05009
33 parts on this diagram · 15 diagrams in section
