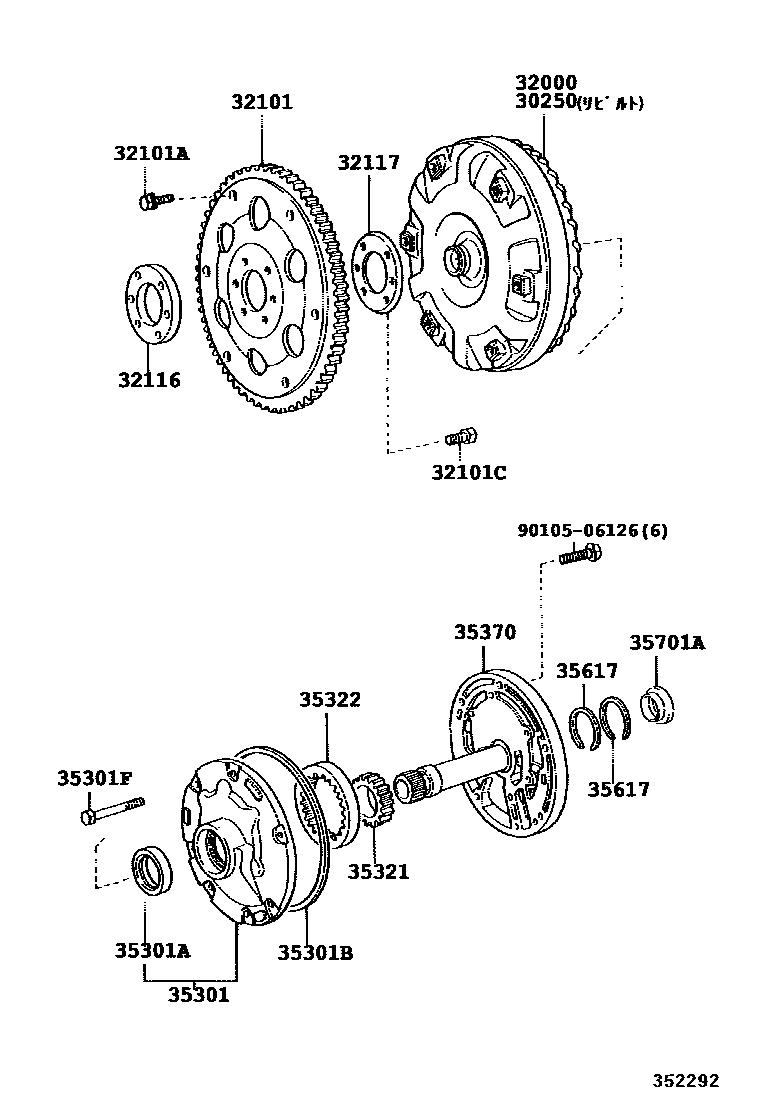

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1 0003 1A343F 0004 1A44D

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-22120iYN86..4FC199408-199708

main30250-35040iYN130..4FC198904-199008

main30250-35070iLN85..4FC198809-199408

main30250-35110iVZN130..4FC199008-199511

main30250-60070iLN108,112,130..4FC199008-199708

main30250-60100iKZN130..4FC199308-199511

32000CONVERTER ASSY, TORQUE

main32000-22120iYN86..4FC199408-199708

main32000-35040iYN130..4FC198904-199008

main32000-35070iLN85..4FC198809-199408

main32000-35110iVZN130..4FC199008-199511

main32000-60070iLN108,112,130..4FC199008-199708

main32000-60100iKZN130..4FC199308-199511

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28010iYN130..4FC198904-199008

main32101-30070iYN86..4FC199408

sub32101-43010

sub32116-43010

sub32117-43010

main32101-35010iVZN130..4FC199008-199511

main32101-35020iLN108,112,130,85..4FC198809

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iYN130..4FC198904-199008

main90119-08498iYN130..4FC198904-199008

main90119-09009iKZN130,LN108,112,130,85,VZN130,YN86..4FC198809

main90119-09010iKZN130,LN108,112,130,85,VZN130,YN86..4FC198809

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046iYN130,86..4FC198904

main90105-10048iVZN130..4FC199008-199511

main90105-12014iLN108,112,130,85..4FC198809

main90105-13010iKZN130..4FC199308-199511

32116SPACER, DRIVE PLATE, FRONT

main32116-28010iYN130,86..4FC198904

main32116-32020iVZN130..4FC199008-199511

main32116-35010iLN108,112,130,85..4FC198809

32117SPACER, DRIVE PLATE, REAR

main32117-20030iYN130,86..4FC198904

main32117-32020iVZN130..4FC199008-199511

main32117-35010iLN108,112,130,85..4FC198809

main32117-60050iKZN130..4FC199308-199511

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30030iLN85,YN86..4FC198809-199708

main35301-30040iKZN130,LN108,112,130..4FC199008-199708

main35301-35010iVZN130,YN130..4FC198904-199511

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iLN85,YN86..4FC198809-199708

main90311-38029iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iLN85,YN86..4FC198809-199708

main90301-99033iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

main90105-08137iLN85,YN86..4FC198912-199708

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iVZN130,YN130..4FC198904-199511

main35321-12030iVZN130,YN130..4FC198904-199511

main35321-12040iVZN130,YN130..4FC198904-199511

main35321-12050iVZN130,YN130..4FC198904-199511

main35321-12060iVZN130,YN130..4FC198904-199511

main35321-12070iLN108,112199508-199708

main35321-12080iLN108,112199508-199708

main35321-12090iLN108,112199108-199708

main35321-12100iLN108,112199508-199708

main35321-12110iLN108,112199508-199708

main35321-22010iLN85..4FC198809-199108

sub35321-22090

main35321-22070iLN85,YN86..4FC199108

main35321-22080iLN85,YN86..4FC199108

main35321-22090iLN85,YN86..4FC199108

main35321-22100iLN85,YN86..4FC199108

main35321-22110iLN85,YN86..4FC199108

main35321-32050iLN130..4FC199008-199108

sub35321-12090

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12060iLN108,112199508-199708

main35322-12070iLN108,112199508-199708

main35322-12080iLN108,112199108-199708

main35322-12090iLN108,112199508-199708

main35322-12100iLN108,112199508-199708

main35322-22010iLN85..4FC198809-199108

sub35322-22090

main35322-22070iLN85,YN86..4FC199108

main35322-22080iLN85,YN86..4FC199108

main35322-22090iLN85,YN86..4FC199108

main35322-22100iLN85,YN86..4FC199108

main35322-22110iLN85,YN86..4FC199108

main35322-32050iLN130..4FC199008-199108

sub35322-12080

main35322-35010iVZN130,YN130..4FC198904-199511

sub35322-12030

35370SHAFT ASSY, STATOR

main35370-22050iYN86..4FC199408-199708

main35370-30023iLN85..4FC198809-199408

main35370-30031iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010iLN85..4FC198809-199108

main35617-30020iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

main35617-32010iLN85,YN86..4FC199108-199708

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iLN85,YN86..4FC198809

9010506126

main90105-06126

17 parts on this diagram · 4 diagrams in section
