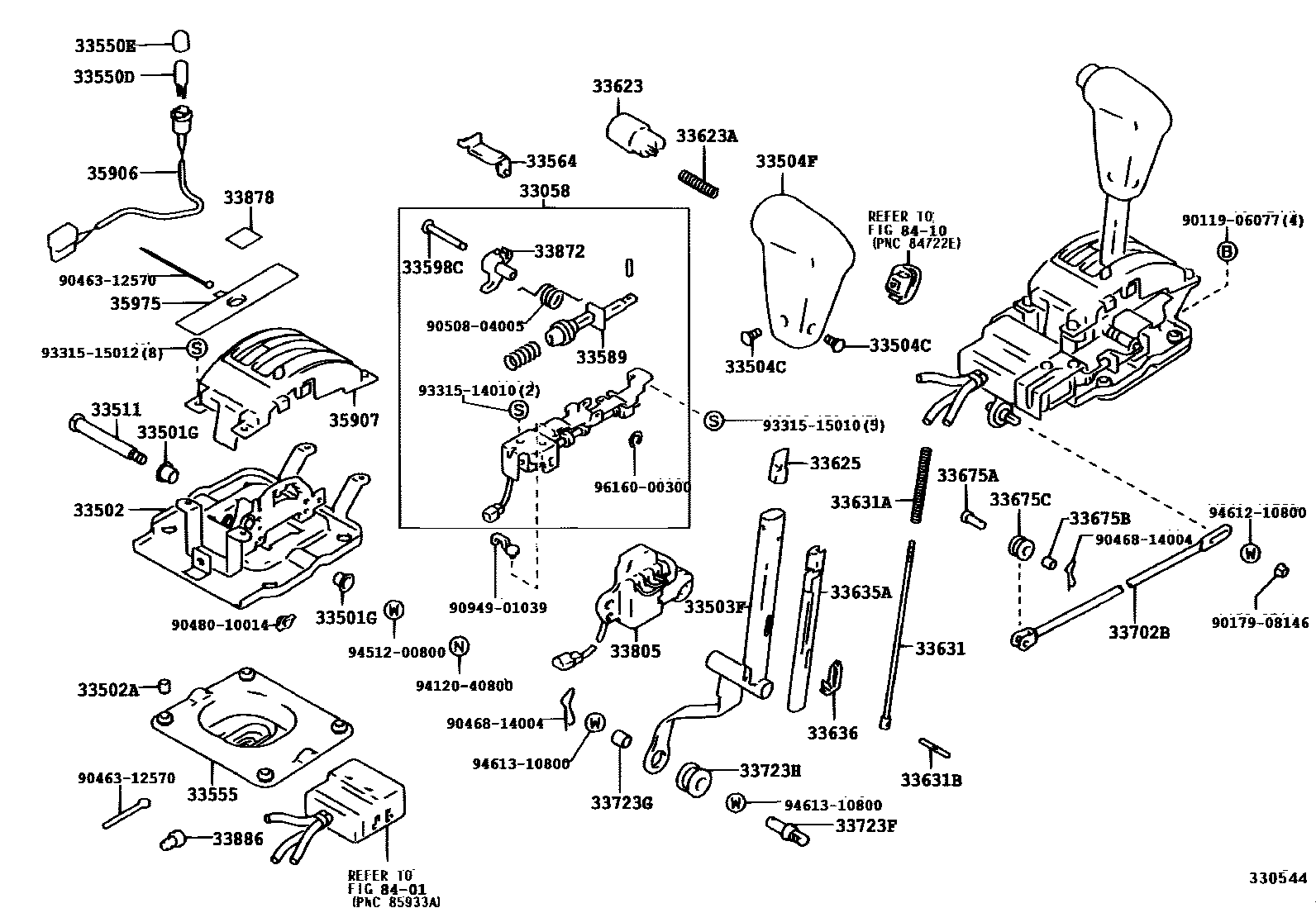

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33058-35020iLN85,YN86..4FC198809

main33058-35030iLN130,VZN130,YN130..4FC198904-199308

main33058-35050iKZN130,LN108,112,VZN130..4FC199308

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90385-11003iLN130,85..4FC198809-199511

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-35150iVZN130,YN130..4FC198904-199511

main33502-35170iLN85..4FC198809-199108

main33502-35220iLN130..4FC199008-199303

main33502-35240iLN85,YN86..4FC199108

main33502-35280iLN130..4FC199303-199308

main33502-35281iLN108,112199508

main33502-35320iKZN130..4FC199308-199404

sub33555-35H01

main33502-35321iKZN130..4FC199404-199411

sub33502-35350

sub33555-35170

main33502-35350iKZN130..4FC199411-199511

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065iLN85,YN86..4FC198809-199511

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-35090iLN85,YN86..4FC199108

main33503-35060iVZN130,YN130..4FC198904-199511

main33503-35080iLN85..4FC198809-199108

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40109iLN85,YN86..4FC198809-199511

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14050-01iLN106..DLX198809-199108

BLACK,TRIM1#,8#

sub33504-14050

sub33504-14070

main33504-14050-10iLN106..DLX199108-199408

BLUE,TRIM8#

sub33504-14050

sub33504-14070

main33504-14050-33iLN106..DLX199108-199109

GRAY,TRIM1#

sub33504-14050

sub33504-14070

main33504-14050-S4iLN106..DLX199110-199408

MEDIUM GRAY,TRIM1#

sub33504-14050

sub33504-14070

main33504-20120-B1iKZN130..4D..5F..SSRX199310-199403

sub33504-20120

main33504-20120-B1iKZN130,LN130,VZN130..5F..SSRX199108-199511

sub33504-20120

main33504-35030-02iLN130,VZN130,YN130..5F198904-199108

RED,TRIM3#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-03iLN10#,YN10#..SR198809-198901

GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-04iLN10#,YN10#..SR198809-198901

BLUE,TRIM8#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-06iLN130,VZN130,YN130..5F198904-199108

BROWN,TRIM4#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-B0iLN107..SR199108-199708

MEDIUM GRAY,TRIM11

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-B0iKZN130,LN10#,13#,VZN130,YN10#,130..5F..(SR,SSR,SSRX)198901-199708

MEDIUM GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-J0iLN10#,YN10#..SR198901-199408

MEDIUM BLUE,TRIM8#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-J0iLN130..2D..5F..SSR;LN10#,13#,VZN130,YN10#..(4D,T1,TW1)..5F..(SR,SSR,SSRX)199108-199308

MEDIUM BLUE,TRIM83

sub33504-24010

sub33504-35030

sub33504-60121

main33542-20080-13iLN85,YN86..4FC198809-199708

GRAY,TRIM1#

sub33542-20080

sub33542-20081

main33542-20080-16iLN85..4FC198809-199108

BROWN,TRIM4#

sub33542-20080

sub33542-20081

main33542-20080-24iLN85..4FC198809-199408

BLUE,TRIM8#

sub33542-20080

sub33542-20081

main33542-35060-02iLN130,VZN130,YN130..4FC198904-199108

RED,TRIM3#

sub33542-35060

main33542-35060-03iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

GRAY,TRIM1#

sub33542-35060

main33542-35060-04iLN130,VZN130..4D..4FC;LN130,VZN130..2D..4FC..SSR199008-199308

BLUE,TRIM8#

sub33542-35060

main33542-35060-06iLN130,VZN130,YN130..4FC198904-199108

SABLE,TRIM4#

sub33542-35060

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-22160iLN85,YN86..4FC198809

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iKZN130,LN108,112,130,VZN130,YN130..4FC198904

main99132-11034iLN85,YN86..4FC198809

33550ECAP, POSITION INDICATOR LAMP

main90339-09001iLN85,YN86..4FC199104

33555BOOT, SHIFT LEVER

main33555-35080iVZN130,YN130..4FC198904-199511

main33555-35100iLN85,YN86..4FC198809

main33555-35130iLN108,112,130..4FC199008

main33555-35140iLN108,112,130..4FC199008

main33555-35150iKZN130..4FC199308-199411

sub33555-35H01

main33555-35170iKZN130..4FC199411-199511

main33555-60030iKZN130,LN100,106,107,109,13#,VZN130,YN10#,130..5F198809

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-35050iLN85,YN86..4FC198809

main33564-35070iKZN130,LN108,112,130,VZN130,YN130..4FC198904

33589LINK, SHIFT LOCK SOLENOID

main33589-35030iLN85,YN86..4FC198809

33598CPIN (FOR FLOOR SHIFT LOCK SOLENOID BRACKET)

main90249-04037iLN85,YN86..4FC198809

33623BUTTON, SHIFT LEVER KNOB

main33623-20020-13iLN85,YN86..4FC198809

GRAY,TRIM1#

sub33623-20020

main33623-20020-16iLN85..4FC198809-199108

BROWN,TRIM4#

sub33623-20020

main33623-20020-24iLN85..4FC198809-199408

BLUE,TRIM8#

sub33623-20020

main33623-35020-02iLN130,VZN130,YN130..4FC198904-199108

RED,TRIM3#

sub33623-35020

main33623-35020-03iKZN130,LN108,112,130,VZN130,YN130..4FC198904

GRAY,TRIM1#

sub33623-35020

main33623-35020-04iLN130,VZN130..4D..4FC;LN130,VZN130..2D..4FC..SSR199008-199308

BLUE,TRIM8#

sub33623-35020

main33623-35020-06iLN130,VZN130,YN130..4FC198904-199108

BROWN,TRIM4#

sub33623-35020

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07009iLN85,YN86..4FC198809

33625SLEEVE, SHIFT LEVER KNOB

main33625-24010iLN85,YN86..4FC198809

main33625-35020iVZN130,YN130..4FC198904-199511

TRANSFER SIDE

main33625-35040iVZN130,YN130..4FC198904-199511

TRANSMISSION SIDE

main33625-35040iKZN130,LN108,112,130..4FC199008

33631ROD, DETENT

main33631-12080iVZN130,YN130..4FC198904-199511

TRANSMISSION SIDE

main33631-12080iKZN130,LN108,112,130..4FC199008

main33631-30060iLN85,YN86..4FC198809

main33631-35030iVZN130,YN130..4FC198904-199511

TRANSFER SIDE

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-07005iVZN130,YN130..4FC198904-199511

TRANSFER SIDE

main90501-07074iVZN130,YN130..4FC198904-199511

TRANSMISSION SIDE

main90501-07074iKZN130,LN108,112,130,85,YN86..4FC198809

33631BPIN, SLOTTED SPRING (FOR DETENT ROD)

main90256-04003iLN85,YN86..4FC198809

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-35030iLN85,YN86..4FC198809

main33635-35040iKZN130,LN108,112,130,VZN130,YN130..4FC198904

33636GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)

main33636-35010iKZN130,LN108,112,130,85,VZN130,YN130,86..4FC198809

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iVZN130..4FC199401-199511

main90240-08054iKZN130,LN130,85,YN130..4FC198809-199401

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iKZN130,LN108,112,130,85,YN86..4FC198809-199511

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17177iVZN130,YN130..4FC198809-199511

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-35110iVZN130..4FC199008-199511

main33702-35120iLN85..4FC198809-199108

main33702-35160iLN108,112,130,YN130..4FC198904

main33702-35170iLN85,YN86..4FC199108

main33702-35180iKZN130..4FC199308-199511

main33704-35040iVZN130..4FC199108-199511

N0.1

main33704-35040iVZN130..4FC199008-199108

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22010iKZN130,LN108,112,130,85,VZN130,YN130,86..4FC198809

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90389-08005iVZN130,YN130..4FC198809-199511

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main90480-17177iVZN130,YN130..4FC198809-199511

33805PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT)

main33805-35030iLN85,YN86..4FC198809

main33805-35040iKZN130,LN108,112,130,VZN130..4FC198904-199102

main33805-35050iLN130..4FC199008-199102

33872LINK, SHIFT LOCK RELEASE, NO.2

main33872-35020iVZN130,YN130..4FC198904-199511

main33872-35040iLN85,YN86..4FC198809

main33872-35060iKZN130,LN108,112,130..4FC199008

33878LABEL, SHIFT LOCK INFORMATION, NO.2

main33878-16010iKZN130,LN108,112,130..4FC199008

main33878-20010iVZN130,YN130..4FC198904-199511

main33878-35010iLN85,YN86..4FC198809

33886STOPPER, SHIFT LEVER

main33886-16010iKZN130,LN108,112,130,85,VZN130,YN130,86..4FC198809

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-20030iLN85,YN86..4FC198809

sub35906-26030

main35906-35051iVZN130,YN130..4FC198904-199511

sub35906-35060

main35906-35060iKZN130,LN108,112,130..4FC199008

sub35906-17020

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-35080iVZN130,YN130..4FC198904-199511

main35907-35090iLN85..4FC198809-199108

main35907-35091iLN85,YN86..4FC199108

main35907-35140iLN130..4FC199008-199303

sub35975-35H01

main35907-35150iKZN130,LN130..4FC199303-199402

sub35975-35H02

main35907-35151iKZN130..4FC199402-199404

sub35975-35H02

main35907-35152iKZN130,LN108,112..4FC199404

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-35040iLN85,YN86..4FC198809

main35975-35060iVZN130,YN130..4FC198904-199511

main35975-35080iKZN130,LN130..4FC199008-199402

sub35975-35H01

sub35975-35H02

main35975-35081iKZN130,LN108,112..4FC199402

8401

8410

9011906077

main90119-06077

9017908146

main90179-08146

9046312570

main90463-12570

9046814004

main90468-14004

9048010014

main90480-10014

9050804005

main90508-04005

9094901039

main90949-01039

9331514010

main93315-14010

9331515010

main93315-15010

9331515012

main93315-15012

9412040800

main94120-40800

9451200800

main94512-00800

9461210800

main94612-10800

9461310800

main94613-10800

9616000300

main96160-00300

53 parts on this diagram · 7 diagrams in section
