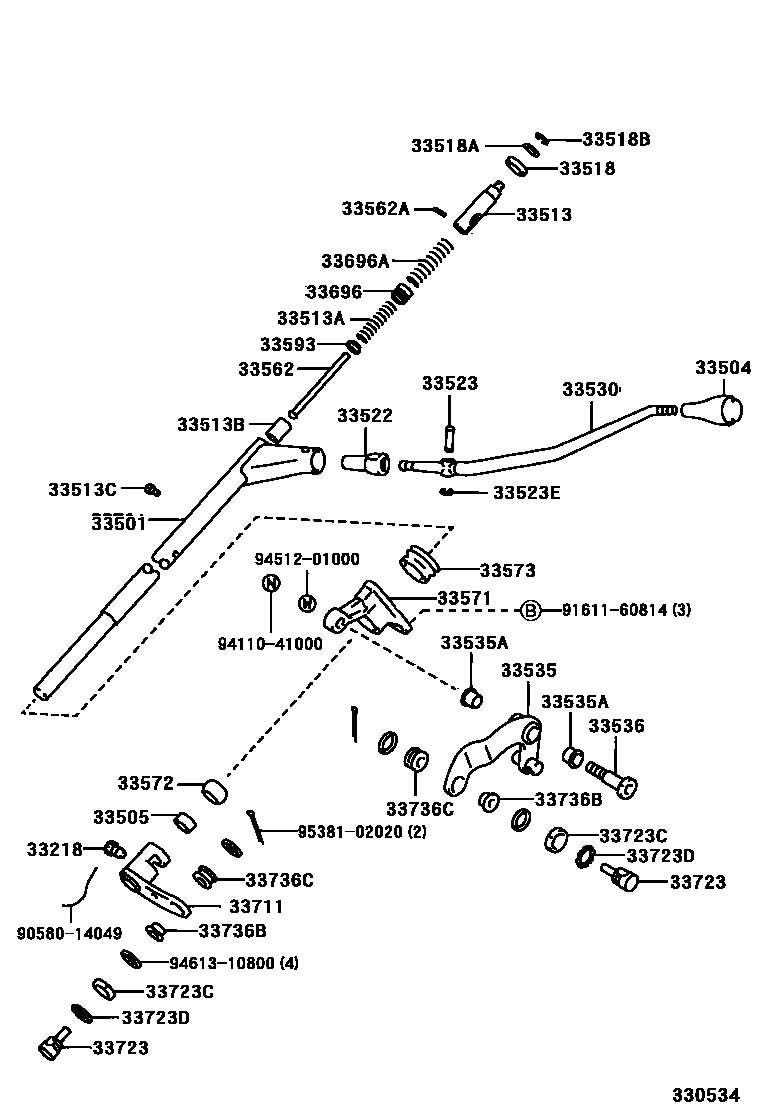

CONTROL SHAFT & CROSSSHAFT
33218BOLT, SHIFT LEVER LOCK
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33513BSPACER (FOR CONTROL SHAFT BRACKET UPPER SHAFT)
33513CBOLT (FOR CONTROL SHAFT BRACKET UPPER SHAFT)
33518BUSH, UPPER CONTROL SHAFT PIECE
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ERING, E (FOR SHIFT LEVER PIN)
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535ABUSH (FOR CONTROL SELECT LEVER)
33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33562STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT
33562APIN (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33573COVER, CONTROL SHAFT DUST, LOWER
33593HOLDER, SPRING (FOR SELECT LEVER)
33696SEAT, SELECT SPRING
33696ASPRING, COMPRESSION
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723CNUT, HEXAGON (FOR CONTROL ROD SETTING)
33723DWASHER, TOOTHED (FOR CONTROL ROD SETTING)
33736ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)
33736BBUSH(FOR GEAR SELECTING ROD, NO.2)
33736CGROMMET(FOR GEAR SELECTING ROD, NO.2)
9058014049
main90580-14049
9161160814
main91611-60814
9411041000
main94110-41000
9451201000
main94512-01000
9461310800
main94613-10800
9538102020
main95381-02020
39 parts on this diagram · 2 diagrams in section
