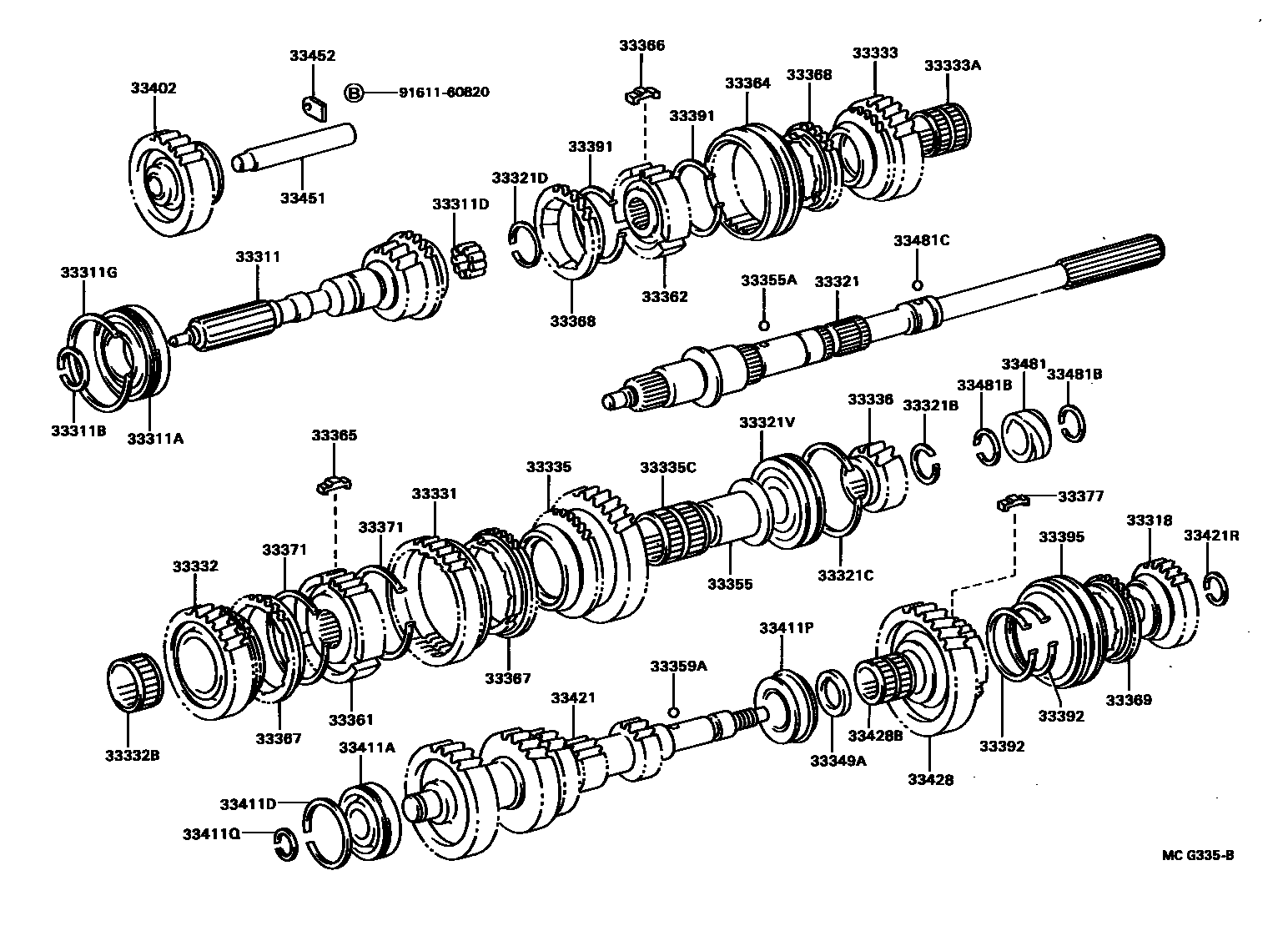

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1

33311SHAFT, INPUT

main33301-26030iLN80,85,YN10#..MTM199108

main33301-35050iKZN130,LN130,VZN130..5F198904-199403

main33301-35060iLN10#,8#,YN10#..MTM198809-198901

main33301-35070iYN8#..5H198809

sub33301-35071

main33301-35080iLN100,106,107,109,131,81,86198901

main33301-35100iKZN130,VZN130..5F199403-199511

sub33301-35110

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32024iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90363-40034iLN130,VZN130..5F198904-199511

main90363-40050iKZN130..5F199308-199511

sub90363-40092

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-30215iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-30216iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-30217iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-30218iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-30219iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-38008iKZN130,LN130,VZN130..5F198904-199511

main90520-38009iKZN130,LN130,VZN130..5F198904-199511

main90520-38010iKZN130,LN130,VZN130..5F198904-199511

main90520-38011iKZN130,LN130,VZN130..5F198904-199511

main90520-38012iKZN130,LN130,VZN130..5F198904-199511

main90520-38013iKZN130,LN130,VZN130..5F198904-199511

main90520-38014iKZN130,LN130,VZN130..5F198904-199511

33311DBEARING, INPUT SHAFT

main90361-06002×13iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90364-25012iKZN130,VZN130..5F199409-199511

main90364-25013iKZN130,LN130,VZN130..5F198904-199409

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-76002iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-88001iKZN130,LN130,VZN130..5F198904-199511

33318PIECE, GEAR SPLINE, NO.5

main33318-35020iKZN130,LN130,VZN130..5F198904-199405

main33318-35030iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main33318-35050iKZN130,VZN130..5F199405-199511

33321SHAFT, OUTPUT

main33321-35092iLN8#,YN8#..5H198809

main33321-35111iLN100,106,107,YN10#198809

main33321-35140iKZN130,LN130,VZN130..5F198904-199511

sub33321-35141

main33321-60090iLN109,131,YN130..5F198904

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-25005iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-25006iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-25009iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-25010iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-25011iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-25012iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-25013iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-25014iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-25015iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-25016iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-25017iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-28031iKZN130,LN130,VZN130..5F198904-199511

main90520-28032iKZN130,LN130,VZN130..5F198904-199511

main90520-28033iKZN130,LN130,VZN130..5F198904-199511

main90520-28034iKZN130,LN130,VZN130..5F198904-199511

main90520-28035iKZN130,LN130,VZN130..5F198904-199511

main90520-28037iKZN130,LN130,VZN130..5F198904-199511

main90520-28039iKZN130,LN130,VZN130..5F198904-199511

main90520-28042iKZN130,LN130,VZN130..5F198904-199511

main90520-28043iKZN130,LN130,VZN130..5F198904-199511

main90520-28045iKZN130,LN130,VZN130..5F198904-199511

main90520-28046iKZN130,LN130,VZN130..5F198904-199511

main90520-28047iKZN130,LN130,VZN130..5F198904-199511

main90520-28048iKZN130,LN130,VZN130..5F198904-199511

main90520-28049iKZN130,LN130,VZN130..5F198904-199511

main90520-28050iKZN130,LN130,VZN130..5F198904-199511

main90520-28051iKZN130,LN130,VZN130..5F198904-199511

main90520-28052iKZN130,LN130,VZN130..5F198904-199511

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-71221iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-81001iKZN130,LN130,VZN130..5F198904-199511

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28010iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-28011iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-28012iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-28013iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-28245iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-28246iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-28248iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-30014iKZN130,LN130,VZN130..5F198904-199511

main90520-30015iKZN130,LN130,VZN130..5F198904-199511

main90520-30016iKZN130,LN130,VZN130..5F198904-199511

main90520-30017iKZN130,LN130,VZN130..5F198904-199511

main90520-30018iKZN130,LN130,VZN130..5F198904-199511

main90520-30019iKZN130,LN130,VZN130..5F198904-199511

main90520-30020iKZN130,LN130,VZN130..5F198904-199511

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-30059iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90363-35023iLN130,VZN130..5F198904-199511

main90363-35039iKZN130..5F199308-199511

sub90363-35078

33331GEAR, REVERSE

main33331-28010iLN8#,YN10#,130,8#..MTM198809-199102

main33331-28011iLN8#,YN10#,130,8#..MTM199102-199108

main33331-35050iKZN130,LN130,VZN130..5F198904-199404

main33331-35060iLN10#,131198809-199012

main33331-35061iLN10#,131199012-199108

sub33331-35062

main33331-35080iKZN130,VZN130..5F199404-199511

sub33331-60040

sub33367-35030

33332GEAR, 2ND

main33033-26021iYN8#..5H198809

main33033-35011iLN100,106,107,109,131,8#,YN10#,130..MTM198809

main33033-35040iLN130,VZN130..5F198904-199108

main33033-35050iKZN130,LN130..5F199108-199404

main33033-35110iVZN130..5F199404-199511

main33033-35120iKZN130..5F199404-199511

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-38002iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90364-47003iKZN130,LN130,VZN130..5F198904-199511

sub90364-47014

33333GEAR, 3RD

main33034-28020iLN100,106,107,109,131,8#,YN10#..MTM199108

main33034-35030iLN10#,131,8#,YN10#,130..MTM198809-199108

main33034-35040iKZN130,LN130,VZN130..5F198904-199403

sub33034-60110

main33034-35050iYN8#..5H198809

main33034-35080iKZN130,VZN130..5F199403-199511

sub33034-35090

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-35005iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90364-38011iKZN130,LN130,VZN130..5F198904-199511

33335GEAR, 1ST

main33032-26020iLN100,106,107,109,131,8#,YN10#..MTM199108

main33032-35030iLN130,VZN130..5F198904-199108

sub33032-35031

main33032-35040iKZN130,LN130..5F199108-199511

sub33032-35041

main33032-35050iLN10#,131,8#,YN10#,130..MTM198809-199108

main33032-35060iYN8#..5H198809

sub33032-26030

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-39005iKZN130,LN130,VZN130..5F198904-199511

sub90364-39016

main90364-39011iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

33336GEAR, 5TH

main33336-28020iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main33336-35070iKZN130,LN130,VZN130..5F198904-199405

main33336-35100iKZN130,VZN130..5F199405-199511

33349WASHER, 5TH GEAR THRUST

main33346-35010iKZN130,LN130,VZN130..5F198904-199405

main33346-35020iKZN130,VZN130..5F199405-199511

sub33346-71010

33349AWASHER, 4TH GEAR

main33349-35010iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

33355RACE, 1ST GEAR BEARING INNER

main33355-35020iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

main90360-06004iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

33359ABALL, 5TH GEAR BEARING INNER RACE LOCK

main90360-06004iKZN130,LN10#,13#,8#,VZN130,YN10#,130,8#..MTM198809-199405

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-35020iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main33361-35030iKZN130,LN130,VZN130..5F198904-199404

sub33361-60020

main33361-35040iKZN130,VZN130..5F199404-199511

sub33361-71010

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-35030iKZN130,LN130,VZN130..5F198904-199511

main33362-35040iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-26020iLN100,106,107,109,131,8#,YN10#,8#..MTM199209

main33364-35020iKZN130,LN130,VZN130..5F198904-199403

sub33364-60030

main33364-35030iLN10#,131,8#,YN10#,130,8#..MTM198809-199209

sub33213-35033

sub33220-26010

main33364-35050iKZN130,VZN130..5F199403-199511

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-35020×3iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

sub33365-35021

main33365-35030×3iKZN130,LN130,VZN130..5F198904-199404

main33365-35040×3iKZN130,VZN130..5F199404-199511

sub33365-35060

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-35030×3iKZN130,LN130,VZN130..5F198904-199511

main33366-35040×3iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

sub33366-35041

33367RING, SYNCHRONIZER, NO.1

main33367-35010×2iKZN130,VZN130..5F199309-199404

main33367-35080×2iKZN130,VZN130..5F199404-199511

main33367-60040iKZN130..5F199308-199309

main33368-20012×2iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

33368RING, SYNCHRONIZER, NO.2

main33367-14010×2iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main33368-35020×2iLN130,VZN130..5F198904-199309

main33368-35030iKZN130,VZN130..5F199403-199511

main33368-35040iKZN130,VZN130..5F199403-199511

main33368-60050iKZN130..5F199308-199309

sub33368-60030

33369RING, SYNCHRONIZER, NO.3

main33367-14010iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main33368-35020iLN130198904-199008

main33369-14010iKZN130,LN130,VZN130..5F199008-199405

main33369-35010iKZN130,VZN130..5F199405-199411

main33369-35011iKZN130,VZN130..5F199411-199511

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14031×2iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main33371-35020×2iLN130,VZN130..5F198904-199404

33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)

main33394-30011×3iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010×2iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main33391-25030×2iKZN130,LN130,VZN130..5F198904-199403

main33391-35010×2iKZN130,VZN130..5F199403-199511

33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3

main33371-14010×2iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main33391-25030×2iLN130198904-199008

main33392-14020×2iKZN130,LN130,VZN130..5F199008-199511

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-26020iLN100,106,107,109,131,8#,YN10#,8#..MTM199305

sub33395-35020

main33395-28010iLN10#,131,8#,YN10#,130,8#..MTM198809-199305

sub33214-26020

sub33214-35040

sub33231-35070

sub33244-35050

sub33245-26010

sub33245-35080

sub90105-06143

main33395-35010iKZN130,LN130,VZN130..5F198904-199405

sub33395-60030

main33395-35040iKZN130,VZN130..5F199405-199411

sub33395-35H01

main33395-35041iKZN130,VZN130..5F199411-199511

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-28011iLN8#,YN10#,130,8#..MTM198809-199108

main33402-35040iKZN130,LN130,VZN130..5F198904-199405

main33402-35050iLN10#,131198809-199108

sub33402-60040

main33402-35060iKZN130,VZN130..5F199405-199511

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-25018iKZN130,LN130,VZN130..5F199108-199409

main90365-25019iKZN130,VZN130..5F199409-199511

main90365-25023iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-49222iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-56002iKZN130,LN130,VZN130..5F198904-199511

33411PBEARING, COUNTERSHAFT CENTER

main90365-31004iLN10#,131,8#,YN10#,130,8#..MTM198809-198908

main90365-31006iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198908

main90365-34005iKZN130,LN130,VZN130..5F198904-199511

33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2

main90520-23037iKZN130,LN130,VZN130..5F198904-199405

main90520-23038iKZN130,LN130,VZN130..5F198904-199405

main90520-23039iKZN130,LN130,VZN130..5F198904-199405

main90520-23040iKZN130,LN130,VZN130..5F198904-199405

main90520-23041iKZN130,LN130,VZN130..5F198904-199405

main90520-23057iKZN130,VZN130..5F199405-199511

main90520-23058iKZN130,VZN130..5F199405-199511

main90520-23059iKZN130,VZN130..5F199405-199511

main90520-23060iKZN130,VZN130..5F199405-199511

main90520-23061iKZN130,VZN130..5F199405-199511

main90520-23062iKZN130,VZN130..5F199405-199511

main90520-23089iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-23090iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-23115iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-23143iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-23144iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-23145iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

33421GEAR, COUNTER

main33421-26120iLN80,85,YN10#..MTM199108

main33421-35120iVZN130..5F199108-199405

sub33421-60150

sub90520-20066

sub90520-20067

sub90520-20068

sub90520-20069

sub90520-20070

sub90520-20071

sub90520-20072

sub90520-20073

main33421-35130iKZN130,LN130..5F199108-199405

sub33421-60160

sub90520-20066

sub90520-20067

sub90520-20068

sub90520-20069

sub90520-20070

sub90520-20071

sub90520-20072

sub90520-20073

main33421-35140iLN8#,YN10#,130..MTM198809-199108

main33421-35160iYN8#..5H198809

sub33421-26140

main33421-35170iLN100,106,107,109,131,81,86198809

main33421-35200iVZN130..5F199405-199511

sub33421-60180

main33421-35210iKZN130..5F199405-199511

sub33421-35220

33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)

main90520-19008iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-19009iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-19010iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-19011iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-19012iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-19013iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-19014iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90520-22016iKZN130,VZN130..5F199405-199511

main90520-22017iKZN130,VZN130..5F199405-199511

main90520-22018iKZN130,VZN130..5F199405-199511

main90520-22019iKZN130,VZN130..5F199405-199511

main90520-22020iKZN130,VZN130..5F199405-199511

main90520-22021iKZN130,VZN130..5F199405-199511

main90520-22022iKZN130,VZN130..5F199405-199511

33428GEAR, COUNTERSHAFT 5TH

main33046-35050iLN130198904-199008

main33046-35051iKZN130,LN130,VZN130..5F199008-199405

sub33046-35052

main33046-35061iLN10#,131,8#,YN10#,130,8#..MTM198809-199103

main33046-35062iLN100,106,107,109,131,8#,YN10#,130,8#..MTM199103

main33046-35100iKZN130,VZN130..5F199405-199511

sub33046-35101

33428BBEARING (FOR COUNTER 5TH GEAR)

main90364-26002iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

main90364-28009iKZN130,LN130,VZN130..5F198904-199405

main90364-30009iKZN130,VZN130..5F199405-199511

33451SHAFT, REVERSE IDLER GEAR

main33451-28010iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

sub33451-28011

main33451-35030iKZN130,LN130,VZN130..5F198904-199511

33452STOPPER, REVERSE IDLER GEAR SHAFT

main33452-36030iLN100,106,107,109,131,8#,YN10#,130,8#..MTM198809

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-22010iYN85..T1,TW1;LN8#,YN80,81,86..5H198809

main33481-30040iYN8#..T1,TW1199108-199408

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-26061×2iLN8#,YN8#..5H198809

33481CBALL, REVERSE SHIFT RESTRICT

main90360-06004iLN8#,YN8#..5H198809

9161160820

main91611-60820

52 parts on this diagram · 3 diagrams in section
