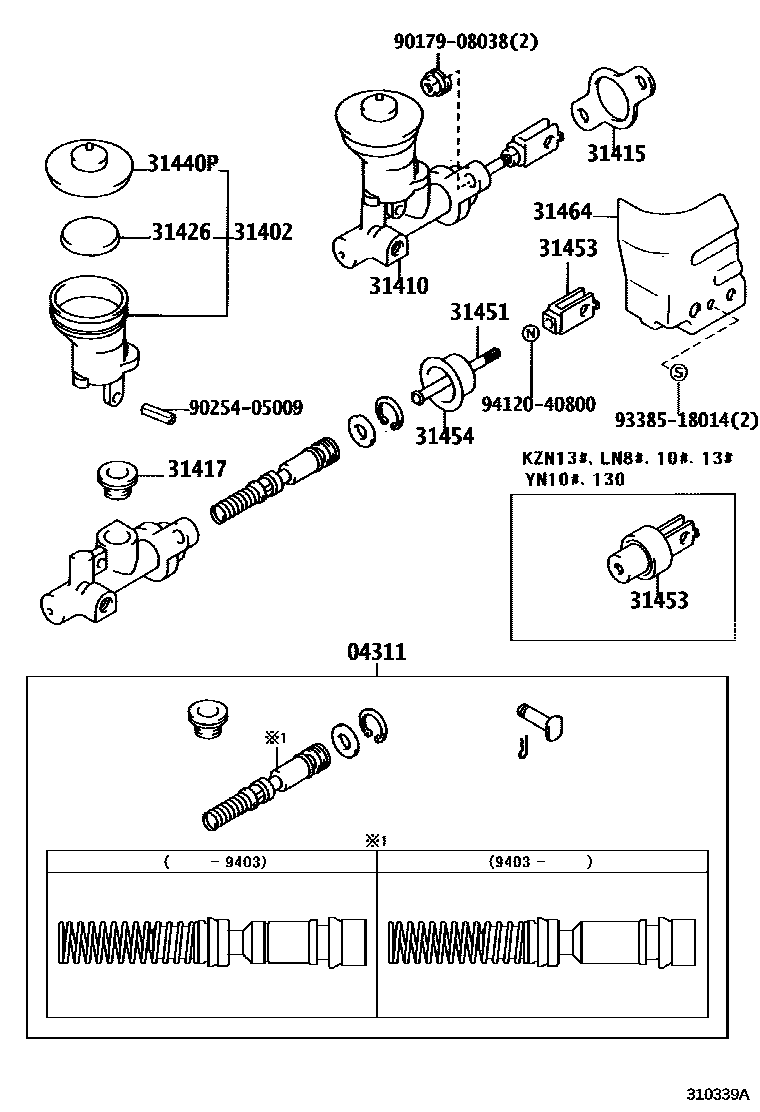

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iVZN130..5F..SSRX;LN10#,8#,YN10#,130,8#..MTM198904-199112

sub04311-12080

main04311-12080iKZN130,LN10#,131,8#,YN10#,8#..MTM199112-199403

main04311-22040iLN10#,8#,YN10#,8#..MTM198809-199308

sub04311-12080

main04311-35070iLN13#..5F198904-199112

main04311-35080iVZN130..5F199008-199403

main04311-60150iKZN130,LN100,106,107,109,8#,VZN130,YN10#,8#..MTM199403

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-10011iVZN130..5F199008-199511

main31402-35030iLN10#,8#,YN10#,8#..MTM198809-198904

main31402-35060iLN130..5F198904-199308

main31402-35070iYN8#198904-199408

sub31402-35030

main31402-35080iYN10#,130,81,86..MTM198904

sub31402-35030

main31402-35090iLN100,106,107,109,8#..MTM198904

sub31402-35030

main31402-35110iKZN130,LN131..5F198906-199511

sub31402-35060

31410CYLINDER ASSY, CLUTCH MASTER

main31410-35250iYN8#198809-199408

sub31410-35360

main31410-35260iYN10#,130,81,86..MTM198809

sub31410-35271

main31410-35270iLN10#,8#..MTM198809-199410

sub31410-35271

main31410-35271iLN106,107,109,8#199410

main31410-35340iLN130..5F198904-199308

sub31410-35360

main31410-35420iKZN130,LN131..5F198904-199511

main31420-35060iVZN130..5F199008-199511

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iKZN130,LN100,106,107,109,13#,8#,YN10#,130,8#..MTM198809

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iKZN130,LN100,106,107,109,13#,8#,YN10#,130,8#..MTM198809

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iKZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM198809

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iKZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM198809

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35070iYN8#198809-199408

main31451-35080iKZN130,LN10#,13#,8#,VZN130,YN10#,130..MTM198809-199403

main31451-36040iKZN130,VZN130,YN107,8#..MTM199403-199410

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iLN106,107,109,8#199410

main31404-35011iYN10#,130..5F198809-198905

sub31404-35013

main31404-35020iLN10#,8#..MTM198809-198904

sub31404-35021

main31404-35021iLN10#,8#..MTM198904-199410

sub31404-35030

main31453-35010iYN8#198809-199408

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iVZN130..5F199008-199511

main31454-16010iKZN130,LN100,106,107,109,8#,YN10#,8#..MTM199204-199403

main31454-24010iLN10#,13#,8#,YN10#,130,8#..MTM198809-199403

31464INSULATOR, CLUTCH MASTER CYLINDER HEAT

main31464-35020iLN130..5F198904-199308

9017908038

main90179-08038

9025405009

main90254-05009

9338518014

main93385-18014

9412040800

main94120-40800

15 parts on this diagram · 2 diagrams in section
