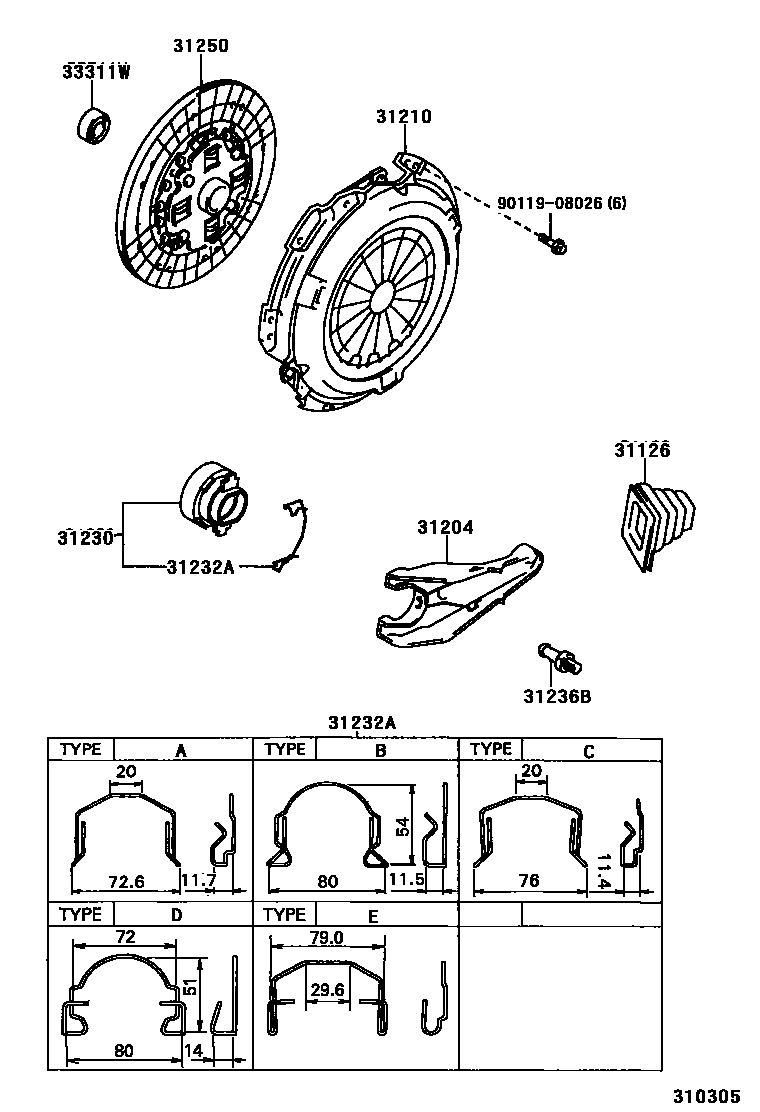

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLN130,VZN130,YN10#,130,8#..MTM¥940198809-199708

main31126-20070iLN100,106,107,109,131,8#..MTM¥990198809-199708

main31126-34010iVZN130..5F¥630199409-199511

main31126-60080iKZN130..5F¥1,240199308-199511

sub31126-60081¥770

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYN10#,130,8#..MTM¥1,420198809-199708

main31204-35031iLN130,VZN130..5F¥1,440198904-199511

main31204-35050iLN100,106,107,109,131,8#..MTM¥1,590198809-199708

main31204-60090iKZN130..5F¥3,810199308-199511

31210COVER ASSY, CLUTCH

main31210-22120iYN8#¥13,800198812-199408

sub31210-22121¥13,700

main31210-26100iYN10#,130..5F¥16,900198905

sub31210-27060¥16,900

main31210-30250iLN8#..5H¥13,800199110-199208

sub31210-30251¥13,800

main31210-30251iLN8#..5H¥13,800199208-199408

sub31210-35340¥13,700

main31210-35060iYN10#,130..5F¥23,300198809-198905

sub31210-26100¥16,900

main31210-35071iVZN130..5F¥16,900199008-199511

sub31210-35192¥16,900

main31210-35080iYN8#¥13,800198809-198812

sub31210-22120¥13,800

main31210-35090iYN8#..5H¥13,800198809-199110

sub31210-22100¥13,800

main31210-35100iLN8#¥13,800199408

sub31210-35101¥13,700

main31210-35110iLN130¥13,800198904-199008

sub31210-53040¥13,700

main31210-35120iLN10#,131¥16,900198809-198906

sub31210-35121¥16,900

main31210-35121iLN10#,131¥16,900198906-199108

sub31210-35122¥13,000

main31210-35170iLN130..5F¥13,800199008-199108

sub31210-35171

main31210-35180iLN10#,131¥16,900199108-199305

sub31210-35181¥16,900

main31210-35181iLN100,106,107,109,131¥16,900199305

sub31210-35330¥14,700

main31210-35190iLN130..5F¥16,900199108-199305

sub31210-35191¥16,900

main31210-35191iLN130..5F¥16,900199305-199308

sub31210-35192¥16,900

main31210-60170iKZN130..5F¥21,100199308-199511

sub31210-60171¥21,100

31230BEARING ASSY, CLUTCH RELEASE

main31230-22090iLN100,106,107,109,13#..5F¥2,130198904-199708

sub31230-22091¥2,130

main31230-35060iLN10#,131¥4,180198809-199708

sub31230-35061¥3,300

main31230-35070iLN80,85,VZN130..MTM¥4,180198809-199511

sub31230-35071¥3,300

main31230-35090iYN10#,130,8#..MTM¥4,180198809-199708

sub31230-35091¥3,300

main31230-60170iKZN130..5F¥1,880199308-199511

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLN10#,131,8#,VZN130,YN10#,130,8#..MTM¥190198809-199708

main31232-35030iLN100,106,107,109,13#,8#,VZN130..MTM¥190198904-199708

main31232-35040iLN100,106,107,109,13#,YN10#,8#..MTM¥230198911-199708

main31232-36030iKZN130..5F¥110199308-199511

main31232-60030iKZN130..5F¥200199308-199511

31236BSUPPORT, RELEASE FORK

main31236-30060iLN100,106,107,109,131,8#,YN10#,130,8#..MTM¥740198809-199708

main31236-35030iLN130,VZN130..5F¥330198904-199511

main31236-60060iKZN130..5F¥580199308-199511

31250DISC ASSY, CLUTCH

main31250-20240iYN8#..5H¥11,700199505-199702

sub31250-20241¥11,700

main31250-20241iYN8#..5H¥11,700199702-199708

sub31250-20242¥11,700

main31250-25122iYN8#..5H¥10,000198809-199505

sub31250-20240¥11,700

main31250-25130iLN10#,131¥23,300198809-199108

sub31250-26180¥23,300

main31250-35160iVZN130..5F¥15,700199008-199202

sub31250-35161¥15,700

main31250-35161iVZN130..5F¥15,700199202-199511

sub31250-35162¥15,600

main31250-35200iLN8#..5H¥17,500198809-199408

sub31250-35201¥17,400

main31250-35210iYN10#,130..5F¥18,900198809-198909

sub31250-35211¥18,800

main31250-35211iYN10#,130..5F¥18,800198909-199708

sub31250-35380¥18,700

main31250-35220iLN8#¥17,500199408-199505

sub31250-35221¥17,500

main31250-35221iLN8#¥17,500199505-199708

sub31250-35222¥17,500

main31250-35280iLN130..5F¥14,200198904-199012

sub31250-35281¥14,200

main31250-35281iLN130..5F¥14,200199012-199108

sub31250-35261¥11,800

main31250-35300iLN100,106,107,109,13#..5F¥18,800199108-199703

sub31250-35301¥18,800

main31250-35301iLN106,107,109¥18,800199703-199708

sub31250-35302¥18,800

main31250-35330iKZN130..5F¥16,500199308-199511

sub31250-35331¥16,500

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iKZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM¥520198809

sub90363-12024¥520

9011908026

main90119-08026¥120

9 parts on this diagram · 1 diagram in section
