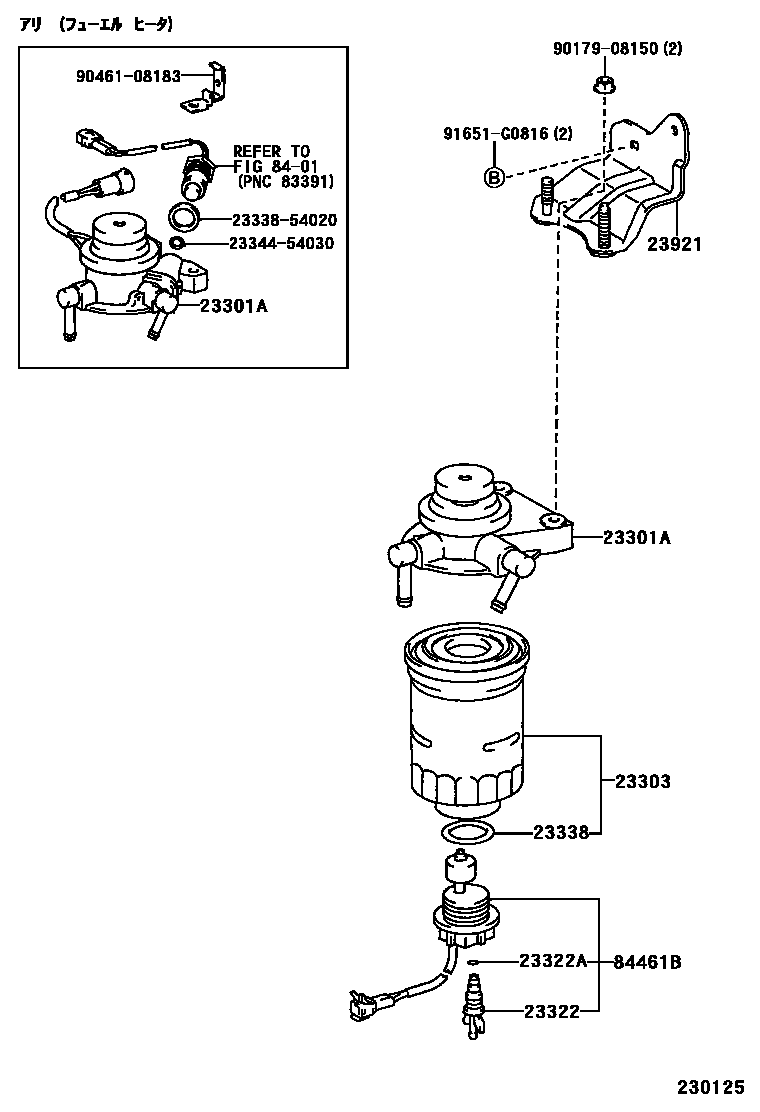

FUEL FILTER

0001 1 0002 1 0003 1

23301ACAP ASSY, FUEL FILTER

main23301-54410i2LT#,2L,3L..LN10#,112,13#,8#198809

main23301-54420i2LT#,2L,3L..LN10#,112,13#,8#198809

main23301-67010i1KZTE..KZN130199308-199511

main23301-67030i1KZTE..KZN130199308-199511

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L#,3L..LN10#,112,13#,8#199108-199511

main23303-64020i2LT#,2L,3L..LN10#,13#,8#198809-199108

sub23303-64010

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i1KZTE..KZN130198809-199511

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2LT#,2L,3L..LN10#,112,13#,8#198809-199511

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1KZTE..KZN130198809-199511

23921SUPPORT, FUEL FILTER

main23921-54270i2LT,2L,3L..LN100,106,107,109,13#,8#198809

main23921-54330i2LTE..LN130199008-199308

main23921-67010i1KZTE..KZN130199308-199511

main23921-72010i2Y,3Y..YN10#,8#198809-199408

8401

84461BSWITCH, LEVEL WARNING

main84461-35060iLN10#,13#,8#198809-199708

2333854020GASKET(FOR WARNING SWITCH)

main23338-54020

2334454030GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-54030

9017908150

main90179-08150

9046108183

main90461-08183

91651G0816

main91651-G0816

13 parts on this diagram · 3 diagrams in section
