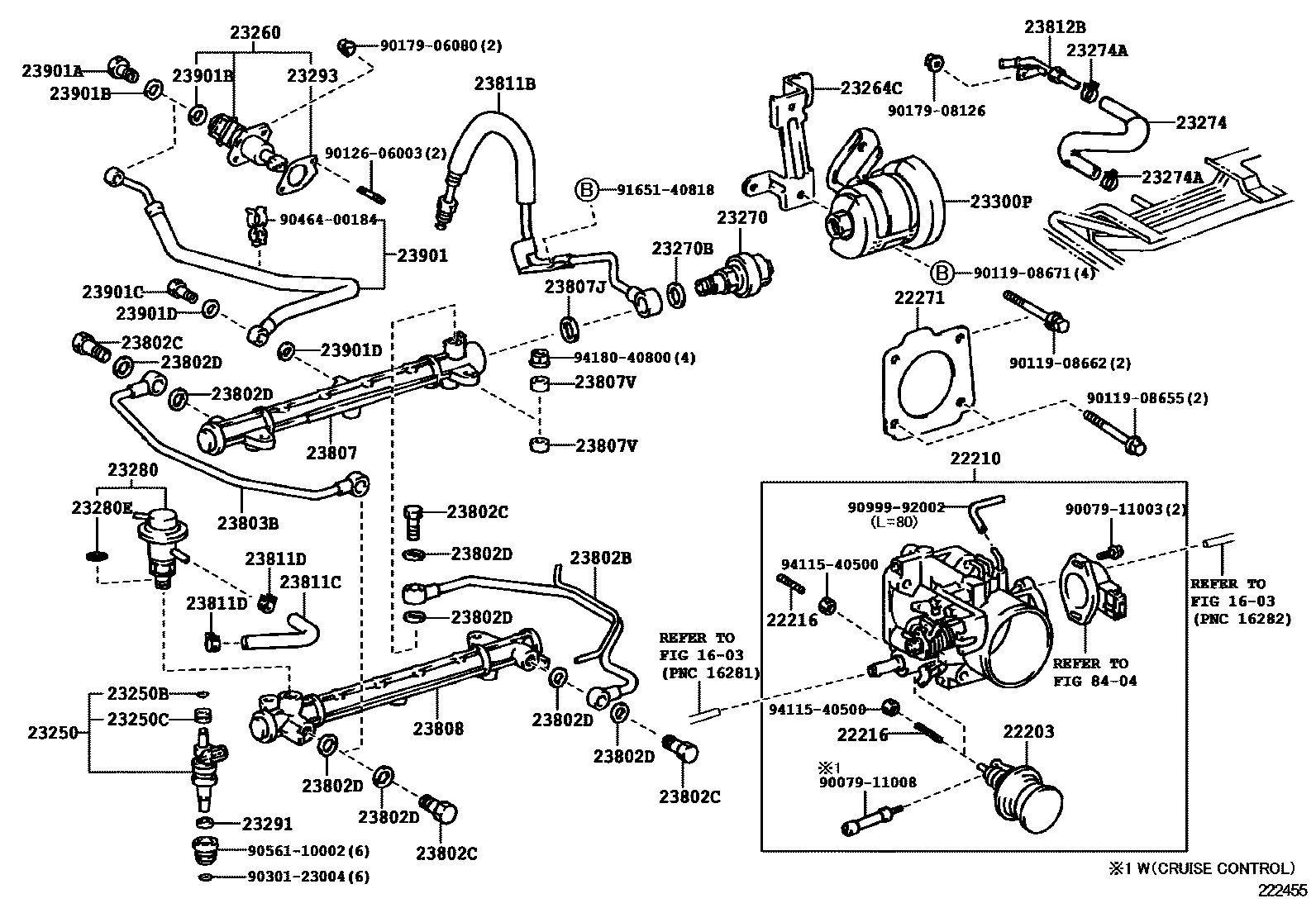

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-65030i3VZE..VZN130..5F199008-199511

main22202-65040i3VZE..VZN130..4FC199008-199511

main22202-73011i3YE..YN130198904-199108

22210BODY ASSY, THROTTLE

main22210-65052i3VZE..VZN130..5F199008-199108

main22210-65062i3VZE..VZN130..4FC199008-199108

main22210-65090i3VZE..VZN130..5F199108-199511

main22210-65100i3VZE..VZN130..4FC199108-199511

main22210-73040i3YE..YN130198904-198908

main22210-73041i3YE..YN130198908-199108

main22210-73090i3YE..YN107,8#199408

22216SCREW, DASH POT ADJUSTING

main22216-65030×2i3VZE..VZN130199008-199310

main22216-73020×2i3VZE..VZN130199310-199511

22271GASKET, THROTTLE BODY

main22271-65020i3VZE..VZN130199008-199511

main22271-73010i3YE..YN130198904-198912

main22271-73011i3YE..YN107,130,81,86198912

23250INJECTOR ASSY, FUEL

main23209-45011×4i3YE..YN130198904-199108

sub23209-43010

main23209-65020×6i3VZE..VZN130199008-199511

main23209-70020×4i3YE..YN107,8#199408

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×6i3VZE..VZN130199008-199511

main90301-23004×4i3YE..YN107,130,81,86198904

MANIFOLD SIDE

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×6i3VZE..VZN130199008-199511

23260INJECTOR ASSY, COLD START FUEL

main23260-69055i3VZE..VZN130199008-199511

main23260-79085i3YE..YN130198904-199108

23264CBRACKET, FUEL FILTER

main23264-65010i3VZE..VZN130199008-199511

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-65010i3VZE..VZN130199008-199511

main23270-73010i3YE..YN130198904-199108

sub23270-50010

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i3YE..YN130198904-199108

DAMPER SIDE

sub23232-41081

main90430-12005i3YE..YN130198904-199108

PIPE SIDE

main90430-12026×2i3YE..YN107,8#199408

main90430-18016i3VZE..VZN130199008-199107

main90430-18028i3VZE..VZN130199107-199511

23274HOSE, FUEL, NO.3

main23274-65010i3VZE..VZN130199008-199511

23274ACLIP(FOR HOSE, FUEL, NO.3)

main90467-11009×2i3VZE..VZN130199008-199511

sub96135-51100

23280REGULATOR ASSY, FUEL PRESSURE

main23280-65010i3VZE..VZN130199008-199511

main23280-73030i3YE..YN130198904-199108

main23280-73040i3YE..YN107,8#199408

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i3YE..YN107,130,81,86198904

main90301-09002i3VZE..VZN130199008-199511

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×6i3VZE..VZN130199008-199511

main23291-73010×4i3YE..YN107,130,81,86198904

23293GASKET, COLD START INJECTOR

main23293-35020i3VZE..VZN130199008-199511

main23293-73010i3YE..YN130198904-198912

main23293-73011i3YE..YN107,130,81,86198912

23300PFILTER, FUEL(FOR EFI)

main23300-65010i3VZE..VZN130199008-199511

sub23300-65020

main23300-79165i3YE..YN107,130,81,86198904

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-65020i3VZE..VZN130199008-199108

main23802-65030i3VZE..VZN130199108-199511

main23802-73020i3YE..YN107,130,81,86198904

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08003i3YE..YN107,8#199408

main90401-08004i3YE..YN130198904-199108

main90401-12015×4i3VZE..VZN130199107-199109

main90401-12036×4i3VZE..VZN130199408-199511

main90401-12097×4i3VZE..VZN130199109-199408

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-08011×2i3YE..YN130198904-199108

main90430-12005×8i3VZE..VZN130199008-199107

main90430-12026×8i3VZE..VZN130199107-199511

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-65020i3VZE..VZN130199008-199511

main23803-73011i3YE..YN130198904-199108

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-65010i3VZE..VZN130199008-199511

sub23814-65030

main23807-73010i3YE..YN107,130,81,86198904

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-18016i3VZE..VZN130199008-199107

main90430-18028i3VZE..VZN130199107-199511

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90560-08055×8i3VZE..VZN130199008-199511

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-65011i3VZE..VZN130199008-199511

sub23815-65030

23811BPIPE, FUEL, NO.1

main23801-65030i3VZE..VZN130199008-199209

main23801-65031i3VZE..VZN130199209-199511

23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)

main23273-65010i3VZE..VZN130199008-199511

23811DCLIP, HOSE(FOR FUEL HOSE)

main96135-41100×2i3VZE..VZN130199008-199511

sub96135-51100

23812BPIPE, FUEL RETURN

main23812-65010i3VZE..VZN130199008-199108

main23812-65020i3VZE..VZN130199108-199511

23901TUBE SUB-ASSY, FUEL

main23901-65010i3VZE..VZN130199008-199511

23901ABOLT, UNION(FOR FUEL TUBE)

main90401-08010i3VZE..VZN130199008-199107

main90401-08011i3VZE..VZN130199107-199511

23901BGASKET(FOR FUEL TUBE)

main90430-08005×2i3VZE..VZN130199008-199107

main90430-08012×2i3VZE..VZN130199107-199511

23901CBOLT, UNION

main90401-08010i3VZE..VZN130199008-199107

main90401-08011i3VZE..VZN130199107-199511

23901DGASKET(FOR FUEL TUBE)

main90430-08005×2i3VZE..VZN130199008-199107

main90430-08012×2i3VZE..VZN130199107-199511

8404

9007911003

main90079-11003

9007911008

main90079-11008

9011908655

main90119-08655

9011908662

main90119-08662

9011908671

main90119-08671

9012606003

main90126-06003

9017906080

main90179-06080

9017908126

main90179-08126

9030123004

main90301-23004

9046400184

main90464-00184

9056110002

main90561-10002

9099992002

main90999-92002

9165140818

main91651-40818

9411540500

main94115-40500

9418040800

main94180-40800

52 parts on this diagram · 6 diagrams in section
