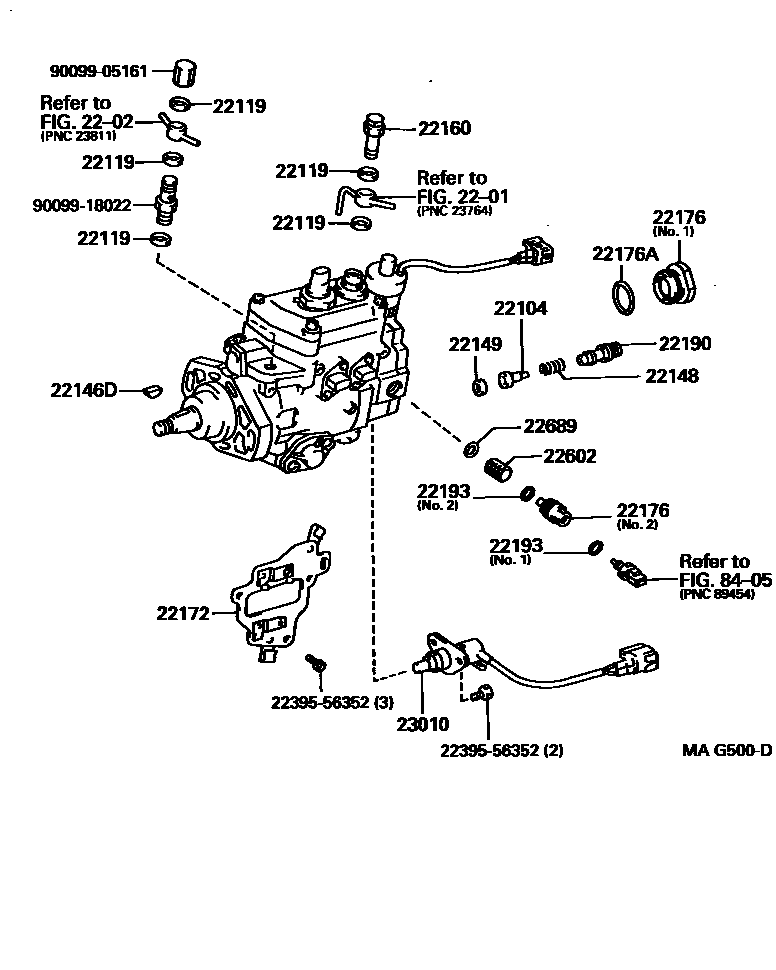

INJECTION PUMP BODY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

2201

2202

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-17010×4i1KZTE..KZN130199308-199511

main22104-56300×4i3L..LN106,107,109,8#199408

main22104-5B010×4i2LT..LN130198904-199005

main22104-5B011×4i2LT..LN130199005-199008

main22104-5B250×4i2LTE..LN130199008-199308

main22104-5B440×4i2LTE..LN108,112199508

main22104-64010×4i2L,3L..LN10#,131,8#..MTM198809-199005

main22104-6A290×4i2L,3L..LN10#,131,8#..MTM199005-199408

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109×5i2LT,2L,3L..LN10#,13#,8#198809-199108

22146DKEY(FOR DRIVE GEAR)

main90099-13018i1KZTE..KZN130199308-199511

22148SPRING, DELIVERY VALVE

main22148-54010×4i1KZTE..KZN130199308-199511

main22148-5B250×4i2LTE..LN108,112,130199008

22149GASKET, DELIVERY VALVE

main22149-54010×4i2L#,3L..LN10#,13#,8#198809-199005

main22149-56351×4i1KZTE..KZN130199308-199511

22160SCREW SUB-ASSY, OVERFLOW

main22160-54271i2LTE..LN108,112,130199008

main22160-64010i2LT,2L,3L..LN100,106,107,109,13#,8#198809

main22160-67030i1KZTE..KZN130199308-199511

22172CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-5B300i2LTE..LN130199008-199308

main22172-67030i1KZTE..KZN130199308-199511

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020i2L,3L..LN100,106,107,109,131,8#198809

main22176-54640i1KZTE..KZN130199308-199511

main22176-54641i2LTE..LN130199008-199210

main22176-5B302i2LTE..LN108,112,130199210

main22176-67030i1KZTE..KZN130199308-199511

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i2LTE,3L..LN10#,112,8#199701

main90099-14052i1KZTE..KZN130199308-199511

22190VALVE SUB-ASSY, SNUBBER

main22190-6A290×4i1KZTE..KZN130199308-199511

main22190-6A680×4i3L..LN106,107,109,8#199408

22193RING, O(FOR LEVER CONNECTING PIN)

main22193-55031i2LT..LN130198904-199008

main22193-5B302i2LTE..LN108,112,130199210

main22193-67030i1KZTE..KZN130199308-199511

22602FILTER SUB-ASSY, FUEL INJECTION PUMP

main22602-56350i1KZTE..KZN130199308-199511

22689WASHER(FOR SWIVEL NIPPLE)

main22689-56350i1KZTE..KZN130199308-199511

23010VALVE ASSY, TIMING CONTROL

main23010-54030i2LTE..LN130199008-199308

main23010-54040i2LTE..LN108,112199508

main23010-67030i1KZTE..KZN130199308-199511

8405

2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56352

9009905161

main90099-05161

9009918022

main90099-18022

20 parts on this diagram · 8 diagrams in section
