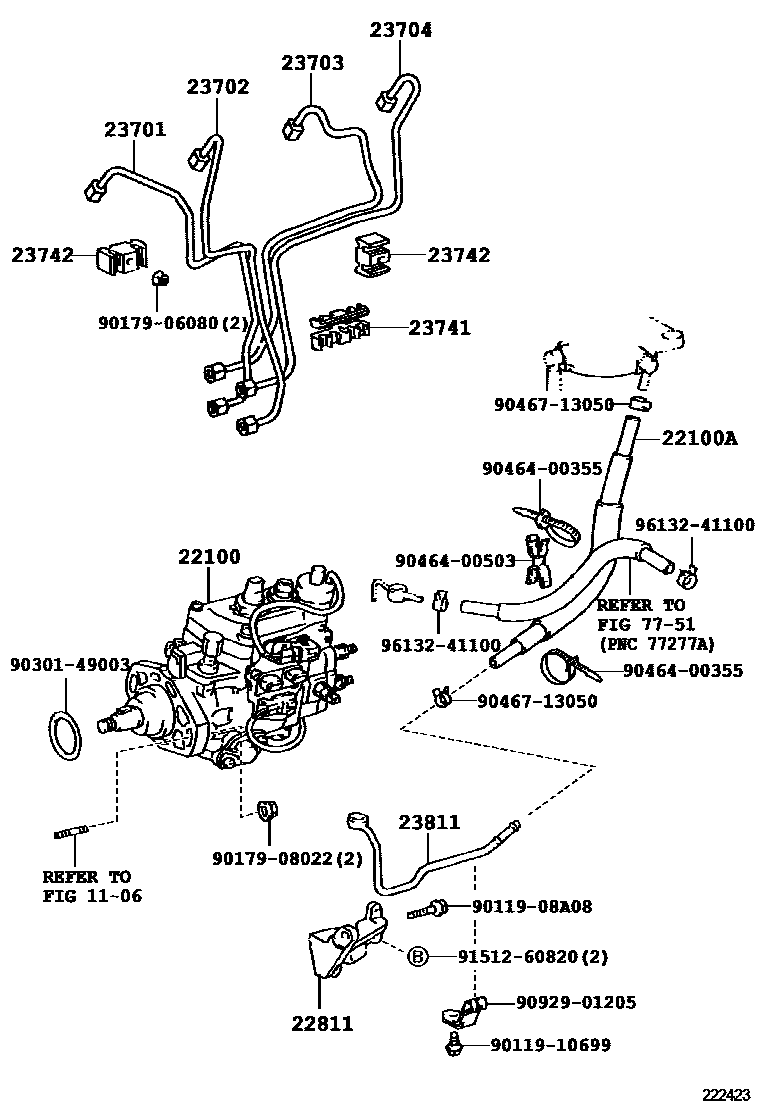

INJECTION PUMP ASSEMBLY

0001 1 0002 1

1106

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54730i2L..LN8#..5H¥305,000198809-199408

main22100-54740i2L..LN85..4FC¥305,000198809-199408

main22100-54830i3L..LN106..DLX¥305,000198809-198908

sub22100-54840¥318,000

main22100-54840i3L..LN10#,131..SR¥318,000198809-198908

main22100-54840i3L..LN10#,131¥318,000198908-199108

main22100-5B280i2LT..LN130¥381,000198904-199008

main22100-5B300i2LTE..LN130¥346,000199008-199011

main22100-5B301i2LTE..LN130¥342,000199011-199206

sub22100-5B302¥342,000

main22100-5B302i2LTE..LN130¥342,000199206-199308

sub22100-5B303¥342,000

main22100-5B340i3L..LN10#,131¥321,000199108-199408

main22100-5B370i3L..LN8#¥317,000199408

main22100-5B380i3L..LN106,107,109¥325,000199408

main22100-5B390i3L..LN106,107,109¥340,000199408

main22100-5B440i2LTE..LN108,112¥352,000199508

main22100-67030i1KZTE..KZN130¥271,000199308-199310

sub22100-67070¥273,000

main22100-67070i1KZTE..KZN130¥273,000199310-199511

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-67050i1KZTE..KZN130¥3,070199308-199511

main90447-14062i2LT#,2L,3L..LN10#,112,13#,8#¥2,010198809

22811STAY, INJECTION PUMP, NO.1

main22811-54041i2LT,2L,3L..LN10#,13#,8#¥860198809-199708

sub22811-54042¥530

main22811-54050i2LTE..LN108,112,130¥530199008-199708

main22811-67010i1KZTE..KZN130¥2,190199308-199511

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54110i2L#,3L..LN10#,13#,8#¥2,730198809-198908

sub23701-54140¥1,710

main23701-54120i2LTE..LN130¥2,510199008-199308

sub23701-54130¥2,520

main23701-54130i2LTE..LN108,112¥2,520199308

main23701-54140i2LT,2L,3L..LN100,106,107,109,13#,8#¥1,710198908

main23701-67020i1KZTE..KZN130¥1,670199308-199507

sub23701-67021¥1,680

main23701-67021i1KZTE..KZN130¥1,680199507-199511

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54110i2L,3L..LN10#,131,8#¥2,730198809-198908

sub23702-54140¥1,710

main23702-54120i2LT..LN130¥2,710198904-199008

main23702-54130i2LTE..LN130¥2,510199008-199308

sub23702-54160¥2,520

main23702-54140i2L,3L..LN100,106,107,109,131,8#¥1,710198908

main23702-54160i2LTE..LN108,112¥2,520199308

main23702-67020i1KZTE..KZN130¥1,680199308-199511

sub23702-67021¥1,680

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54090i2L,3L..LN10#,8#¥2,730198809-198903

sub23703-54091¥2,730

main23703-54091i2L#,3L..LN10#,13#,8#¥2,730198903-198908

sub23703-54100¥1,710

main23703-54100i2LT#,2L,3L..LN10#,112,13#,8#¥1,710198908

main23703-67020i1KZTE..KZN130¥1,670199308-199507

sub23703-67021¥1,670

main23703-67021i1KZTE..KZN130¥1,670199507-199511

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54090i2L#,3L..LN10#,13#,8#¥2,730198809-198908

sub23704-54100¥1,710

main23704-54100i2LT#,2L,3L..LN10#,112,13#,8#¥1,710198908

main23704-67020i1KZTE..KZN130¥1,680199308-199511

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2LT#,2L,3L..LN10#,112,13#,8#¥1,330198809-199607

main23741-54030i2LTE,3L..LN10#,112,8#¥550199607

main23741-56010i2LT#,2L,3L..LN10#,112,13#,8#¥450198809

main23741-64030i1KZTE..KZN130¥550199308-199511

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i2LT#,2L,3L..LN10#,112,13#,8#¥1,330198809-199607

main23742-67010i1KZTE..KZN130¥380199308-199511

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54150i2LT#,2L,3L..LN10#,13#,8#¥2,700198809-199108

sub23811-54151¥2,690

main23811-54151i2L#,3L..LN10#,112,13#,8#¥2,690199108

main23811-67030i1KZTE..KZN130¥3,210199308-199511

7751

9011908A08

main90119-08A08¥170

9011910699

main90119-10699¥90

9017906080

main90179-06080¥80

9017908022

main90179-08022¥220

9030149003

main90301-49003¥170

9046400355

main90464-00355¥200

9046400503

main90464-00503¥190

9046713050

main90467-13050¥240

9092901205

main90929-01205¥380

9151260820

main91512-60820¥140

9613241100

main96132-41100¥160

23 parts on this diagram · 2 diagrams in section
