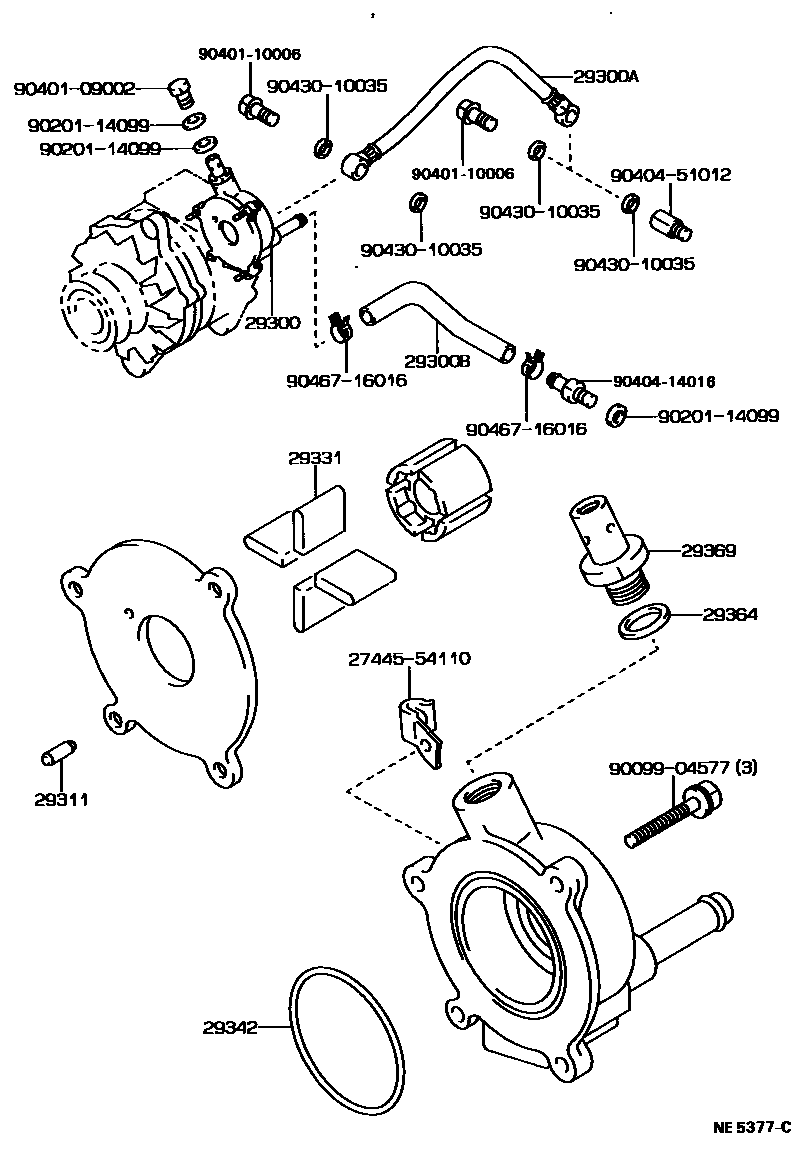

VACUUM PUMP

0001 1 0003 1 0005 1

29300PUMP ASSY, VACUUM

main29300-54050i2LT,3L..LN13#198904-199008

main29300-54090i2L,3L..LN10#,8#198809-199101

main29300-54091i2L,3L..LN100,106,107,109,8#199101

main29300-54110i2LTE,3L..LN108,112,13#199008-199606

main29300-54140i2LTE..LN108,112199606

sub29300-54180

main29300-67020i1KZTE..KZN130199308-199511

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L,3L..LN100,106,107,109,8#199008

main90923-02096i2LT..LN130198904-199008

main90923-02110i3L..LN131199008-199301

main90923-02114i2LTE..LN130199008-199308

main90923-02118i3L..LN131199301-199308

main90923-02119i2LTE..LN108,112199508

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2L#,3L..LN10#,13#,8#198809-199008

main29611-54050i2LTE,3L..LN108,112,13#199008

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L#,3L..LN10#,13#,8#198809-199008

29331BLADE, VACUUM PUMP, A

main29331-56070×4i2L,3L..LN100,106,107,109,8#199008

main29331-64030×3i2LTE,3L..LN108,112,13#199008-199601

main29331-67020×5i1KZTE..KZN130199308-199511

29342PACKING, VACUUM PUMP

main29342-58010i1KZTE..KZN130199308-199511

main29342-64030i2LTE,3L..LN108,112,13#199008

main29342-67020i1KZTE..KZN130199308-199511

main29342-68010×2i1KZTE..KZN130199308-199511

main96740-02063i2L#,3L..LN10#,13#,8#198809-199008

29364WASHER, VACUUM PUMP

main29364-66010i1KZTE,2LT#,2L,3L..KZN130,LN10#,112,13#,8#198809

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L#,3L..LN10#,13#,8#198809-199008

main29369-64030i1KZTE,2LTE,3L..KZN130,LN108,112,13#199008

2744554110

main27445-54110

9009904577

main90099-04577

9020114099

main90201-14099

9040109002

main90401-09002

9040110006

main90401-10006

9040414016

main90404-14016

9040451012

main90404-51012

9043010035

main90430-10035

9046716016

main90467-16016

17 parts on this diagram · 3 diagrams in section
