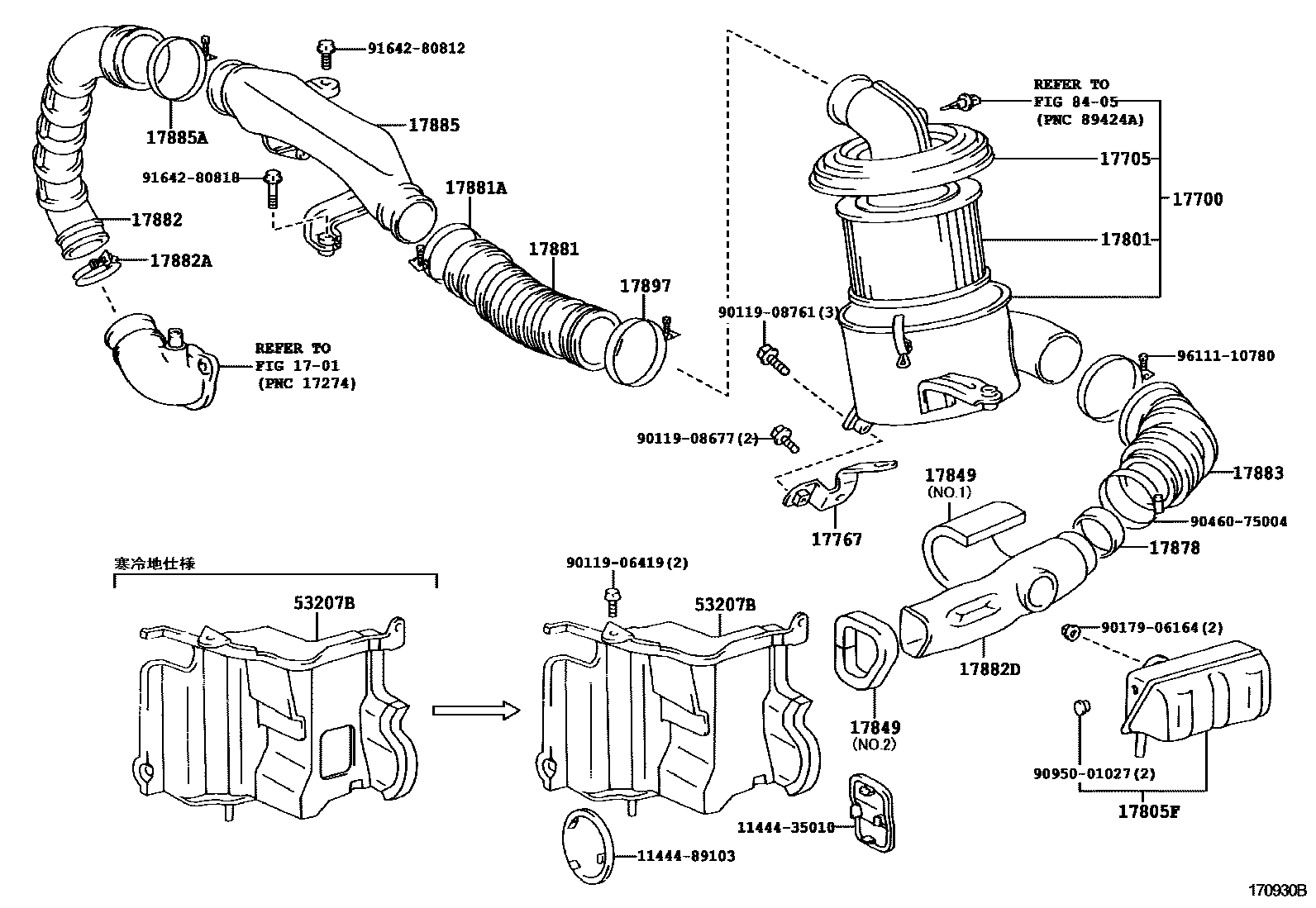

AIR CLEANER

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1701

17700CLEANER ASSY, AIR

main17700-54470i2LT..LN130198904-199008

main17700-54480i2L,3L..LN10#,131,8#198809-199006

main17700-54620i2L,3L..LN10#,131,8#199006-199407

main17700-54621i2L,3L..LN100,106,107,109,8#199407

main17700-54690i2LTE..LN108,112,130199008

main17700-65030i3VZE..VZN130199008-199511

main17700-67080i1KZTE..KZN130199308-199511

main17700-72160i2Y,3Y..YN10#,8#198809-199008

sub17700-72161

main17700-72161i2Y,3Y..YN10#,8#199008-199408

main17700-73240i3YE..YN107,130,81,86198904

17705CAP SUB-ASSY, AIR CLEANER

main17705-35140i3YE..YN107,130,81,86198904

main17705-54230i2LT..LN130198904-199008

main17705-54250i2L,3L..LN100,106,107,109,131,8#198809

main17705-54320i2LTE..LN108,112,130199008

main17705-65010i3VZE..VZN130199008-199511

main17705-67050i1KZTE..KZN130199308-199511

main17705-72080i2Y,3Y..YN10#,8#198809-199408

17767BRACKET, AIR CLEANER

main17771-67010i1KZTE..KZN130199308-199511

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-34060i2Y,3Y..YN10#,8#198809-199408

main17801-54060i2LT#,2L,3L..LN10#,112,13#,8#198809

main17801-67050i1KZTE..KZN130199308-199511

main17801-70010i3YE..YN107,130,81,86198904

main17801-70020i3VZE..VZN130199008-199511

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-89106i2L,3L..LN10#,131,8#198809-199108

main17805-89109i2LT#..LN130198904-199108

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-35120i1KZTE..KZN130199308-199511

main17805-35130i1KZTE..KZN130199308-199511

17849GASKET, INTAKE AIR CONNECTOR

main17849-35060i2LTE..LN108,112199108-199609

main17849-35080i1KZTE..KZN130199308-199511

main17849-35090i3L..LN106,107,109,8#199408-199609

main17849-89102i2L,3L..LN10#,8#198809-198901

main17849-89104i2LT#..LN130198904-199108

main17849-89109i1KZTE..KZN130199108-199511

main17849-89109i2L,3L..LN10#,131,8#198901-199108

17878PIPE, INTAKE AIR CONNECTOR, NO.3

main17878-89101i1KZTE..KZN130198809-199511

17881HOSE, AIR CLEANER, NO.1

main17881-16210i2Y,3Y..YN10#,8#198809-199001

main17881-54340i2LT#..LN108,112,130198904

main17881-54350i2L,3L..LN100,106,107,109,131,8#198809

main17881-65011i3VZE..VZN130199008-199108

main17881-65020i3VZE..VZN130199108-199511

main17881-67040i1KZTE..KZN130199308-199511

main17881-70010i3YE..YN107,130,81,86198904

main17881-74040i2Y,3Y..YN10#,8#199001-199408

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-75001i2LT#..LN108,112,130198904

main90460-82001i3VZE..VZN130199110-199511

sub90460-82002

main96111-10460i2Y,3Y..YN10#,8#198809-199408

main96111-10620i2L,3L..LN100,106,107,109,131,8#198809

PIPE SIDE

main96111-10670i2L,3L..LN100,106,107,109,131,8#198809

AIR CLEANER SIDE

main96111-10710i3YE..YN107,130,81,86198904

main96111-10830i1KZTE..KZN130199008-199511

main96111-10830i3VZE..VZN130199108-199511

CONNECTOR SIDE

17882HOSE, AIR CLEANER, NO.2

main17882-54340i2L,3L..LN100,106,107,109,131,8#198809

main17882-54360i2LT#..LN130198904-199308

main17882-54460i2LTE..LN108,112199508

main17882-65010i3VZE..VZN130199008-199511

main17882-67020i1KZTE..KZN130199308-199511

main17882-70010i3YE..YN107,130,81,86198904

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-70002i2LT#..LN130198904-199308

main96111-10600i2LTE..LN108,112199508

main96111-10620i2L,3L..LN100,106,107,109,131,8#198809

PIPE SIDE

main96111-10710i3YE..YN130198904-199108

PIPE SIDE

main96111-10710i3YE..YN107,8#199408

THROTTLE BODY SIDE

main96111-10730i2LTE..LN108,112199508

main96111-10730i1KZTE..KZN130199308-199511

main96111-10730i2L,3L..LN100,106,107,109,131,8#198809

INTAKE MANIFOLD SIDE

main96111-10800i3YE..YN107,130,81,86198904

AIR CLEANER SIDE

main96111-10800i3VZE..VZN130199008-199511

AIR FLOW METER SIDE

main96111-20620i3VZE..VZN130199008-199511

RESONATOR SIDE

17882DHOSE, COOL AIR INTAKE

main17882-35090i2LTE..LN108,112199108-199408

main17882-35120i1KZTE..KZN130199308-199511

main17882-35130i3L..LN106,107,109,8#199408

main17882-89107i3YE..YN107,130,81,86198904

main17882-89109i2Y,3Y..YN10#,8#198809-199408

main17882-89114i3VZE..VZN130199008-199511

main17882-89122i2L,3L..LN10#,131,8#198809-199108

main17882-89126i2LT#..LN130198904-199108

17883HOSE, AIR CLEANER, NO.3

main17883-35020i1KZTE..KZN130199308-199511

main17883-89107i2LT#,2L,3L..LN10#,112,13#,8#198809

17885PIPE, AIR CLEANER

main17885-54180i2L,3L..LN100,106,107,109,131,8#198809

main17885-54200i2LT#..LN108,112,130198904

main17885-67010i1KZTE..KZN130199308-199511

sub17885-67011

17885AHOSE, AIR CLEANER, NO.5

main96111-10880i1KZTE..KZN130199308-199511

17897CLAMP, HOSE(FOR AIR CLEANER)

main96111-10800i1KZTE..KZN130199308-199511

53207BDUCT SUB-ASSY, COOL AIR

main53207-35020iLN13#199108-199308

sub53207-35021

main53207-35021iKZN130199308-199511

main53207-35030iLN13#199108-199308

sub53207-35031

main53207-35031iKZN130199308-199511

main53207-35050iVZN130199108-199511

main53207-89108iLN10#,131,8#198809-199108

main53207-89109iLN10#,131,8#198809-199108

main53207-89109iLN10#,112,8#199108

main53207-89110iVZN130199008-199108

main53207-89113iLN130198904-199108

main53207-89114iLN130198904-199108

8405

1144435010PLUG, HOLE

main11444-35010

1144489103PLUG, HOLE

main11444-89103

9011906419

main90119-06419

9011908677

main90119-08677

9011908761

main90119-08761

9017906164

main90179-06164

9046075004

main90460-75004

9095001027

main90950-01027

9164280812

main91642-80812

9164280818

main91642-80818

9611110780

main96111-10780

31 parts on this diagram · 8 diagrams in section
