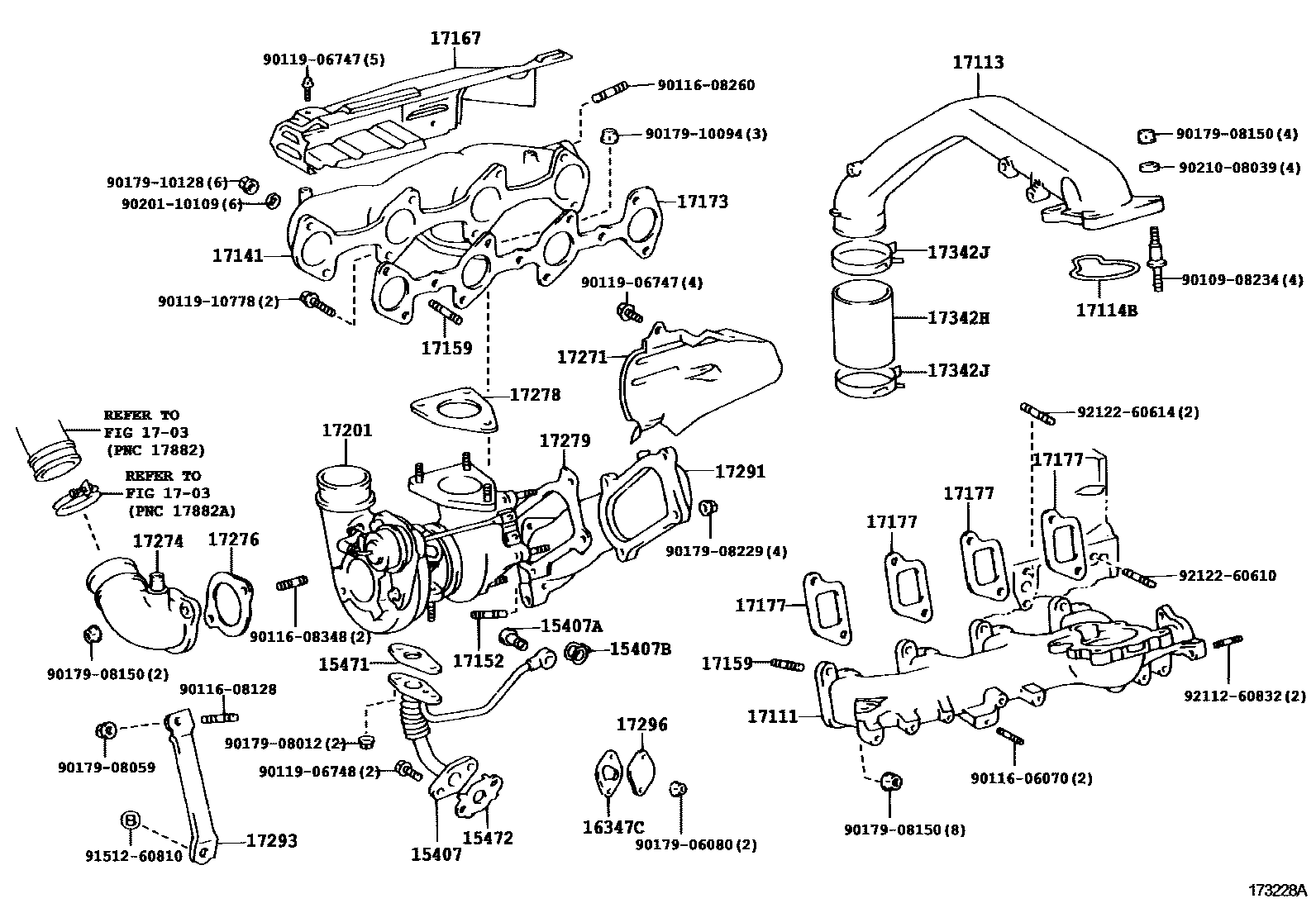

MANIFOLD

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-54040i2LT#..LN108,112,130198904

main15407-67010i1KZTE..KZN130199308-199511

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-10006i2LTE..LN130199008-199308

main90401-10035i2LT..LN130198904-199008

sub90401-10006

main90401-12097i1KZTE..KZN130199308-199511

main96341-11000i2LTE..LN108,112199508

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90430-10035i2LT#..LN108,112,130198904

main90904-30004i1KZTE..KZN130199308-199511

15471GASKET, TURBO OIL INLET

main15471-54010i2LT..LN130198904-198907

sub15471-58010

main15471-58010i1KZTE..KZN130198907-199511

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-67010i1KZTE..KZN130199308-199511

sub15472-30010

16347GASKET, WATER BY-PASS

main16347-28010i2LT..LN130198904-198907

sub16347-42020

main16347-42020i2LT#..LN130198912-199308

main16347-58010i2LT..LN130198907-198909

16347CGASKET(FOR TURBO WATER PIPE)

main16347-42020i2LTE..LN108,112199508

main16347-67010i1KZTE..KZN130199308-199511

1703

17111MANIFOLD, INTAKE

main17101-54090i2LT..LN130198904-198908

sub17101-54091

sub90339-05018

sub90445-11017

sub90917-11033

sub96132-30600

main17101-54091i2LT..LN130198908-199004

sub17101-54092

main17101-54092i3L..LN106,107,109199408

main17101-54092i2LT#..LN108,112,130199004

main17101-54100i2L,3L..LN10#,131,8#198809-198908

sub17101-54101

sub90339-05018

sub90445-11017

sub90917-11033

sub96132-30600

main17101-54101i2L,3L..LN100,106,107,109,131,8#198908

main17101-67010i1KZTE..KZN130199308-199507

main17101-67011i1KZTE..KZN130199507-199511

main17111-65900i3VZE..VZN130199008-199511

main17111-71010i2Y,3Y..YN10#,8#198809-199408

main17111-73011i3YE..YN107,130,81,86198904

17113PIPE, INTAKE

main17113-54120i2LTE..LN108,112199508

main17113-67010i1KZTE..KZN130199308-199507

sub17113-67011

main17113-67011i1KZTE..KZN130199507-199511

17114BGASKET, INTAKE FLANGE

main17116-54011i2LTE..LN108,112,130199008

main17116-54020i2L,3L..LN10#,8#198809-198904

sub17116-54021

main17116-54021i2LT,2L,3L..LN100,106,107,109,13#,8#198904

sub17116-54030

main17116-67010i1KZTE..KZN130199308-199511

17141MANIFOLD, EXHAUST

main17141-54090i3L..LN131198904-199308

main17141-54100i2LT#..LN108,112,130198904

main17141-54110i2L,3L..LN100,106,107,109,8#198809-199602

main17141-54111i3L..LN106,107,109,8#199602

main17141-54120i3L..LN106,107,109199408-199602

main17141-54121i3L..LN106,107,109199602

main17141-65020i3VZE..VZN130199008-199109

sub17141-65021

main17141-65021i3VZE..VZN130199109-199511

main17141-67020i1KZTE..KZN130199308-199511

main17141-71020i2Y,3Y..YN10#,8#198809-199408

main17141-72010i3YE..YN107,130,81,86198904

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i2Y,3Y#..YN10#,130,8#198809-198909

main90116-10088i2L#,3L..LN10#,13#,8#198809-199511

main90116-10146i2Y,3Y#..YN10#,130,8#199001

main90116-10148i2Y,3Y#..YN10#,130,8#198909-199001

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08220i2L#,3L..LN10#,112,13#,8#198809-199204

INTAKE SIDE

main90116-08262i3VZE..VZN130199008-199511

INTAKE MANIFOLD

main90116-10063i2Y,3Y#..YN10#,130,8#198809

main90116-10140i2LT#..LN108,112,130198904

EXHAUST SIDE

main90116-10141i2L,3L..LN100,106,107,109,131,8#198809

EXHAUST SIDE

main90116-10150i3VZE..VZN130199008-199511

EXHAUST MANIFOLD

main90126-10017i1KZTE..KZN130199501-199511

EXHAUST MANIFOLD

main92122-80822i1KZTE..KZN130199308-199511

INTAKE MANIFOLD

main92132-60820i2L#,3L..LN10#,13#,8#199204-199301

INTAKE SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54070i3L..LN131198904-199108

main17167-54070i3L..LN10#199408-199505

main17167-54090i2L,3L..LN10#,131,8#198809-199508

main17167-54100i2LT#..LN108,112,130198904

main17167-54110i3L..LN106,107,109199505

main17167-54120i3L..LN106,107,109,8#199508

main17167-65020i3VZE..VZN130199008-199511

main17167-67020i1KZTE..KZN130199308-199508

sub17167-67030

main17167-67030i1KZTE..KZN130199508-199511

main17167-71020i2Y,3Y..YN10#,8#198809-199408

main17167-73011i3YE..YN107,130,81,86198904

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54030i2L,3L..LN100,106,107,109,131,8#198809

main17173-54040i2LT..LN130198904-198908

sub17173-54050

main17173-54050i2LT#..LN108,112,130198908

main17173-65020i3VZE..VZN130199008-199011

sub17173-65031

main17173-65031i3VZE..VZN130199011-199511

main17173-67020i1KZTE..KZN130199308-199511

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54020i2LT#,2L,3L..LN10#,13#,8#198809-199507

sub17177-54021

main17177-54021i2LTE,3L..LN10#,112,8#199507

main17177-65010i3VZE..VZN130199008-199511

main17177-67010i1KZTE..KZN130199308-199511

sub17177-67011

17201TURBOCHARGER SUB-ASSY

main17201-54060i2LT#..LN130198904-199308

main17201-54081i2LTE..LN108,112199508

sub17201-54090

main17201-67010i1KZTE..KZN130199308-199511

17271INSULATOR, TURBO, NO.1

main17271-54060i2LT#..LN130198904-199308

main17271-54100i2LTE..LN108,112199508

main17271-67020i1KZTE..KZN130199308-199511

sub17271-67021

17274ELBOW, COMPRESSOR INLET

main17274-67010i1KZTE..KZN130199308-199508

sub17274-67011

main17274-67011i1KZTE..KZN130199508-199511

17276GASKET, COMPRESSOR INLET

main17276-67010i1KZTE..KZN130199308-199511

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-54020i2LT#..LN130198904-199308

sub17278-54021

main17278-54021i2LTE..LN108,112199508

main17278-67010i1KZTE..KZN130199308-199511

17279GASKET, TURBINE OUTLET ELBOW

main17279-54020i2LTE..LN108,112199508

main17279-64010i2LT#..LN130198904-199308

main17279-67010i1KZTE..KZN130199308-199511

17291ELBOW, TURBINE OUTLET

main17291-54060i2LT#..LN130198904-199308

main17291-54090i2LTE..LN108,112199508

main17291-67030i1KZTE..KZN130199308-199511

17293STAY, TURBOCHARGER

main17293-67010i1KZTE..KZN130199308-199511

17296PLATE, BEARING HOUSING, SIDE

main17296-28010i1KZTE..KZN130198904-199511

17342HHOSE, AIR, NO.2(FOR TURBOCHARGER)

main17342-54030i2LTE..LN108,112199508

main17342-67010i1KZTE..KZN130199308-199511

sub17342-67030

17342JCLIP, HOSE(FOR INTAKE PIPE)

main90467-48002i2LTE..LN108,112199508

main90467-53002i1KZTE..KZN130199308-199511

9010908234

main90109-08234

9011606070

main90116-06070

9011608128

main90116-08128

9011608260

main90116-08260

9011608348

main90116-08348

9011906747

main90119-06747

9011906748

main90119-06748

9011910778

main90119-10778

9017906080

main90179-06080

9017908012

main90179-08012

9017908059

main90179-08059

9017908150

main90179-08150

9017908229

main90179-08229

9017910094

main90179-10094

9017910128

main90179-10128

9020110109

main90201-10109

9021008039

main90210-08039

9151260810

main91512-60810

9211260832

main92112-60832

9212260610

main92122-60610

9212260614

main92122-60614

49 parts on this diagram · 10 diagrams in section
