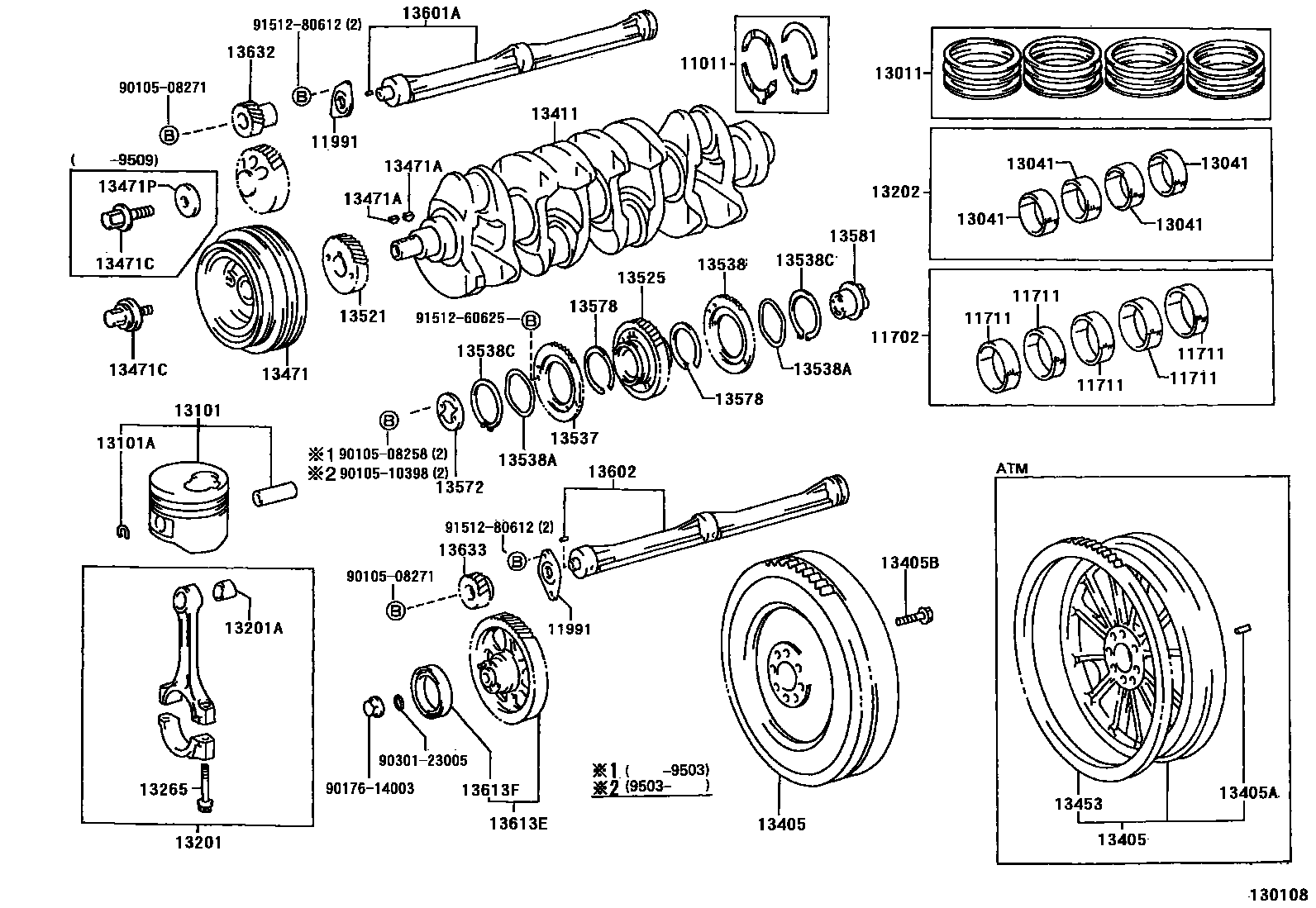

CRANKSHAFT & PISTON

0001 1 0002 1 0005 1 0008 1 0009 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-25010i2Y,3Y#..YN10#,130,8#198809

main11011-54020i2LT#,2L,3L..LN10#,112,13#,8#198809-199708

main11011-62010i3VZE..VZN130199008-199511

main11011-67020i1KZTE..KZN130199308-199511

main11012-54020i2LT#,2L,3L..LN10#,112,13#,8#198809-199708

main11012-67020i1KZTE..KZN130199308-199511

sub11012-30010

main11013-54020i2LT#,2L,3L..LN10#,112,13#,8#198809-199708

main11013-67020i1KZTE..KZN130199308-199511

sub11013-30010

11702BEARING SET, CRANKSHAFT

main11704-54061i2LT#,2L,3L..LN10#,112,13#,8#198809

sub11704-54080

main11704-65010i3VZE..VZN130199008-199204

sub11704-65011

main11704-65011i3VZE..VZN130199204-199407

sub11704-65012

main11704-65013i3VZE..VZN130199407-199511

main11704-67020i1KZTE..KZN130199308-199511

sub11704-67021

main11704-71020i2Y,3Y#..YN10#,130,8#198809-199512

main11704-71030i3YE..YN107,8#199512

sub11704-73010

main11705-54061i2LT#,2L,3L..LN10#,112,13#,8#198809

sub11705-54080

main11705-65010i3VZE..VZN130199008-199204

sub11705-65011

main11705-65011i3VZE..VZN130199204-199407

sub11705-65012

main11705-65013i3VZE..VZN130199407-199511

main11705-67020i1KZTE..KZN130199308-199511

sub11705-67021

11711BEARING, CRANKSHAFT

main11071-65010-01i3VZE..VZN130199008-199407

sub11071-65011

main11071-65010-02i3VZE..VZN130199008-199407

sub11071-65011

main11071-65010-03i3VZE..VZN130199008-199407

sub11071-65011

main11071-65010-04i3VZE..VZN130199008-199407

sub11071-65011

main11071-65010-05i3VZE..VZN130199008-199407

sub11071-65011

main11071-65011-01i3VZE..VZN130199407-199511

main11071-65011-02i3VZE..VZN130199407-199511

main11071-65011-03i3VZE..VZN130199407-199511

main11071-65011-04i3VZE..VZN130199407-199511

main11071-65011-05i3VZE..VZN130199407-199511

main11071-71010-01i3YE..YN107,8#199512

sub11071-73010

main11071-71010-02i3YE..YN107,8#199512

sub11071-73010

main11071-71010-03i3YE..YN107,8#199512

sub11071-73010

main11701-54061-01i2LT#,2L,3L..LN10#,112,13#,8#198809-199708

MARK 1

sub11701-54080

main11701-54061-02i2LT#,2L,3L..LN10#,112,13#,8#198809-199708

MARK 2

sub11701-54080

main11701-54061-03i2LT#,2L,3L..LN10#,112,13#,8#198809-199708

MARK 3

sub11701-54080

main11701-62021-01i3VZE..VZN130199204-199404

sub11701-62022

main11701-62021-02i3VZE..VZN130199204-199404

sub11701-62022

main11701-62021-03i3VZE..VZN130199204-199404

sub11701-62022

main11701-62021-04i3VZE..VZN130199204-199404

sub11701-62022

main11701-62021-05i3VZE..VZN130199204-199404

sub11701-62022

main11701-62021-06i3VZE..VZN130199204-199404

sub11701-62022

main11701-62022-01i3VZE..VZN130199404-199511

main11701-62022-02i3VZE..VZN130199404-199511

main11701-62022-03i3VZE..VZN130199404-199511

main11701-62022-04i3VZE..VZN130199404-199511

main11701-62022-05i3VZE..VZN130199404-199511

main11701-62022-06i3VZE..VZN130199404-199511

main11701-65010-01i3VZE..VZN130199008-199204

sub11701-62021

main11701-65010-02i3VZE..VZN130199008-199204

sub11701-62021

main11701-65010-03i3VZE..VZN130199008-199204

sub11701-62021

main11701-65010-04i3VZE..VZN130199008-199204

sub11701-62021

main11701-65010-05i3VZE..VZN130199008-199204

sub11701-62021

main11701-67020-02i1KZTE..KZN130199308-199511

MARK 2

sub11701-67021

main11701-67020-03i1KZTE..KZN130199308-199511

MARK 3

sub11701-67021

main11701-67020-04i1KZTE..KZN130199308-199511

MARK 4

sub11701-67021

main11701-67020-05i1KZTE..KZN130199308-199511

MARK 5

sub11701-67021

main11701-67020-06i1KZTE..KZN130199308-199511

MARK 6

sub11701-67021

main11701-71020-01i2Y,3Y#..YN10#,130,8#198809-199512

main11701-71020-02i2Y,3Y#..YN10#,130,8#198809-199512

main11701-71020-03i2Y,3Y#..YN10#,130,8#198809-199512

main11701-71030-01i3YE..YN107,8#199512

sub11701-73010

main11701-71030-02i3YE..YN107,8#199512

sub11701-73010

main11701-71030-03i3YE..YN107,8#199512

sub11701-73010

11991WASHER, BALANCESHAFT THRUST

main11991-67010i1KZTE..KZN130199308-199511

13011RING SET, PISTON

main13011-54100i2LT#,2L..LN108,112,130,80,85198809-199708

main13011-54120i3L..LN100,106,107,109,131,81,86198809-199708

main13011-65021i3VZE..VZN130199008-199511

sub13011-62060

main13011-67020i1KZTE..KZN130199308-199511

sub13011-67030

main13011-71012i3YE..YN107,8#199605

main13011-71021i2Y,3Y#..YN10#,130,8#198809-199605

sub13011-71012

main13013-54100i2LT#,2L..LN108,112,130,80,85198809-199708

main13013-54120i3L..LN100,106,107,109,131,81,86198809-199708

main13013-65021i3VZE..VZN130199008-199511

sub13013-62060

main13013-67020i1KZTE..KZN130199308-199511

sub13013-67030

main13013-71021i2Y,3Y#..YN10#,130,8#198809

main13014-54100i2LT#,2L..LN108,112,130,80,85198809-199708

main13014-67020i1KZTE..KZN130199308-199511

sub13014-67030

main13014-71021i2Y,3Y#..YN10#,130,8#198809

main13015-54100i2LT#,2L..LN108,112,130,80,85198809-199708

main13015-67020i1KZTE..KZN130199308-199511

sub13015-67030

main13015-71021i2Y,3Y#..YN10#,130,8#198809

13041BEARING, CONNECTING ROD

main13041-54024-01i2L..LN8#198809-199408

MARK 1

main13041-54024-02i2L..LN8#198809-199408

MARK 2

main13041-54024-03i2L..LN8#198809-199408

MARK 3

main13041-54041-01i2LT#,3L..LN10#,112,13#,81,86198809-199708

MARK 1

sub13041-54042

main13041-54041-02i2LT#,3L..LN10#,112,13#,81,86198809-199708

MARK 2

sub13041-54042

main13041-54041-03i2LT#,3L..LN10#,112,13#,81,86198809-199708

MARK 3

sub13041-54042

main13041-65020-01i3VZE..VZN130199008-199511

MARK 1

main13041-65020-02i3VZE..VZN130199008-199511

MARK 2

main13041-65020-03i3VZE..VZN130199008-199511

MARK 3

main13041-67030-02i1KZTE..KZN130199308-199511

MARK 2

sub13041-67031

main13041-67030-03i1KZTE..KZN130199308-199511

MARK 3

sub13041-67031

main13041-67030-04i1KZTE..KZN130199308-199511

MARK 4

sub13041-67031

main13041-67030-05i1KZTE..KZN130199308-199511

MARK 5

sub13041-67031

main13041-67030-06i1KZTE..KZN130199308-199511

MARK 6

sub13041-67031

main13041-71011-06i2Y,3Y#..YN10#,130,8#198809

MARK 6

sub13041-73010

main13041-71011-07i2Y,3Y#..YN10#,130,8#198809

MARK 7

sub13041-73010

main13041-71011-08i2Y,3Y#..YN10#,130,8#198809

MARK 8

sub13041-73010

13101PISTON SUB-ASSY, W/PIN

main13101-54070-01i2L..LN8#198809-199408

main13101-54070-02i2L..LN8#198809-199408

main13101-54070-03i2L..LN8#198809-199408

main13101-54090-01i2LT#..LN130198904-199304

sub13101-54091

main13101-54090-02i2LT#..LN130198904-199304

sub13101-54091

main13101-54090-03i2LT#..LN130198904-199304

sub13101-54091

main13101-54091-01i2LTE..LN108,112,130199304-199708

main13101-54091-02i2LTE..LN108,112,130199304-199708

main13101-54091-03i2LTE..LN108,112,130199304-199708

main13101-54100-01i3L..LN10#,131198809-199102

sub13101-54101

main13101-54100-02i3L..LN10#,131198809-199102

sub13101-54101

main13101-54100-03i3L..LN10#,131198809-199102

sub13101-54101

main13101-54101-01i3L..LN100,106,107,109,131,81,86199102-199708

main13101-54101-02i3L..LN100,106,107,109,131,81,86199102-199708

main13101-54101-03i3L..LN100,106,107,109,131,81,86199102-199708

main13101-65030-01i3VZE..VZN130199008-199110

sub13101-65040

main13101-65030-02i3VZE..VZN130199008-199110

sub13101-65040

main13101-65030-03i3VZE..VZN130199008-199110

sub13101-65040

main13101-65040-01i3VZE..VZN130199110-199511

main13101-65040-02i3VZE..VZN130199110-199511

main13101-65040-03i3VZE..VZN130199110-199511

main13101-67020-01i1KZTE..KZN130199308-199511

sub13101-67030

main13101-67020-02i1KZTE..KZN130199308-199511

sub13101-67030

main13101-67020-03i1KZTE..KZN130199308-199511

sub13101-67030

main13101-72010-01i2Y..YN8#198809-199408

sub13101-72010

main13101-72010-02i2Y..YN8#198809-199408

sub13101-72010

main13101-72010-03i2Y..YN8#198809-199408

sub13101-72010

main13101-73010-01i3Y#..YN10#,130,81,86198809

sub13101-73010

main13101-73010-02i3Y#..YN10#,130,81,86198809

sub13101-73010

main13101-73010-03i3Y#..YN10#,130,81,86198809

sub13101-73010

main13103-54070i2L..LN8#198809-199408

main13103-54090i2LT#..LN130198904-199304

sub13103-54091

main13103-54091i2LTE..LN108,112,130199304-199708

main13103-54100i3L..LN10#,131198809-199102

sub13103-54101

main13103-54101i3L..LN100,106,107,109,131,81,86199102-199708

main13103-65030i3VZE..VZN130199008-199110

sub13103-65040

main13103-65040i3VZE..VZN130199110-199511

main13103-67020i1KZTE..KZN130199308-199511

sub13103-67030

main13103-72010i2Y..YN8#198809-199408

main13103-73010i3Y#..YN10#,130,81,86198809

main13104-54070i2L..LN8#198809-199408

main13104-54090i2LT#..LN130198904-199304

sub13104-54091

main13104-54091i2LTE..LN108,112,130199304-199708

main13104-67020i1KZTE..KZN130199308-199511

sub13104-67030

main13104-72010i2Y..YN8#198809-199408

main13104-73010i3Y#..YN10#,130,81,86198809

main13105-54070i2L..LN8#198809-199408

main13105-54090i2LT#..LN130198904-199304

sub13105-54091

main13105-54091i2LTE..LN108,112,130199304-199708

main13105-67020i1KZTE..KZN130199308-199511

sub13105-67030

main13105-72010i2Y..YN8#198809-199408

main13105-73010i3Y#..YN10#,130,81,86198809

main13301-65030-01i3VZE..VZN130199008-199110

sub13301-65040

main13301-65030-02i3VZE..VZN130199008-199110

sub13301-65040

main13301-65030-03i3VZE..VZN130199008-199110

sub13301-65040

main13301-65040-01i3VZE..VZN130199110-199511

main13301-65040-02i3VZE..VZN130199110-199511

main13301-65040-03i3VZE..VZN130199110-199511

main13303-65030i3VZE..VZN130199008-199110

sub13303-65040

main13303-65040i3VZE..VZN130199110-199511

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-37014i1KZTE..KZN130199308-199511

main90521-29003i2L..LN8#198809-199408

main90521-31001i2LT#,3L..LN10#,112,13#,81,86198809-199708

13201ROD SUB-ASSY, CONNECTING

main13201-59095i2L..LN8#198809-199408

sub13201-59096

main13201-59105i2LT#,3L..LN10#,112,13#,81,86198809-199708

sub13201-59106

main13201-67020i1KZTE..KZN130199308-199511

sub13201-67021

main13201-69105i3VZE..VZN130199008-199511

main13201-71011i2Y..YN8#198809-199408

main13201-79045i3Y#..YN10#,130,81,86198809

sub13201-79046

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73114i2L..LN8#198809-199408

main90999-73115i2LT#,3L..LN10#,112,13#,81,86198809-199708

main90999-73136i1KZTE..KZN130199308-199511

13202BEARING SET, CONNECTING ROD

main13204-54024i2L..LN8#198809-199408

main13204-54041i2LT#,3L..LN10#,112,13#,81,86198809-199708

sub13204-54042

main13204-65020i3VZE..VZN130199008-199511

main13204-67030i1KZTE..KZN130199308-199511

sub13204-67031

main13204-71011i2Y,3Y#..YN10#,130,8#198809

sub13204-73010

main13205-54024i2L..LN8#198809-199408

main13205-54041i2LT#,3L..LN10#,112,13#,81,86198809-199708

sub13205-54042

main13205-65020i3VZE..VZN130199008-199511

main13205-67030i1KZTE..KZN130199308-199511

sub13205-67031

13265BOLT, CONNECTING ROD

main13265-29025i2Y,3Y#..YN10#,130,8#198809

main13265-54020i2LT#,2L,3L..LN10#,112,13#,8#198809-199708

sub13265-54021

main13265-65010i3VZE..VZN130199008-199511

sub13265-62030

main13265-67020i1KZTE..KZN130199308-199511

sub13265-67021

13405FLYWHEEL SUB-ASSY

main13405-54060i2L..LN8#..5H198809-199408

main13405-54070i3L..LN8#199408

main13405-54080i3L..LN10#,131198809-199108

main13405-65010i3VZE..VZN130..5F199008-199511

main13405-67030i1KZTE..KZN130..4FC199308-199511

main13405-71010i2Y..YN8#198809-198903

main13405-71011i2Y..YN8#198903-199408

main13405-72011i3YE..YN8#..5H199408

main13405-79065i3Y#..YN10#,130..5F198809

main13450-54020i2LT..LN130198904-199003

sub13450-54040

main13450-54040i2LT#..LN130..5F199003-199108

sub13450-54041

main13450-54050i2LTE,3L..LN100,106,107,109,13#..5F199108

sub13450-54051

main13450-67010i1KZTE..KZN130..5F199308-199511

sub13450-67011

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i1KZTE..KZN130..4FC199308-199511

main90250-08054i2L,3L..LN10#,131,8#..MTM198809-199108

main90250-08120i3VZE..VZN130..5F199008-199511

13405BBOLT, FLYWHEEL SETTING

main90105-10042i2Y,3Y#..YN10#,130,8#..MTM198809

main90105-10207i3VZE..VZN130..5F199008-199511

main90105-12109i2L,3L..LN10#,131,8#..MTM198809-199108

main90105-12172i2LTE,3L..LN100,106,107,109,13#..5F198904-199108

main90105-13009i1KZTE..KZN130..5F199308-199511

13411CRANKSHAFT

main13401-54040i2L..LN8#198809-199408

main13401-54050i2LT..LN130198904-198908

main13401-54060i3L..LN100,106,107,109,131,81,86198809-199608

sub13401-54061

main13401-54061i3L..LN106,107,109,8#199608

sub13401-54100

main13401-54070i2LT#..LN108,112,130198908

main13401-67010i1KZTE..KZN130199308-199511

sub13401-30010

main13411-65900i3VZE..VZN130199008-199511

main13411-72010i2Y..YN8#198809-199408

sub13411-72900

main13411-73010i3Y#..YN10#,130,81,86198809

sub13411-73900

13453GEAR, FLYWHEEL RING

main13453-20010i2Y,3Y#..YN10#,130,8#..MTM198809

main13453-54010i2L..LN8#..5H198809-199302

main13453-65010i3VZE..VZN130..5F199008-199511

main13453-67020i1KZTE..KZN130..4FC199308-199511

13471PULLEY, CRANKSHAFT

main13408-54070i2LT#,2L,3L..LN10#,13#,8#198809-199505

sub13408-54080

main13408-54080i2LTE,3L..LN10#,112,8#199505-199608

sub13408-54090

main13408-54090i2LTE,3L..LN10#,112,8#199608

main13408-65011i3VZE..VZN130199008-199511

main13408-67020i1KZTE..KZN130199308-199511

main13408-71010i2Y,3Y..YN10#,8#198809-199408

main13408-73010i3YE..YN107,130,81,86198904

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i3VZE..VZN130199203-199511

main90280-05010i2Y,3Y#..YN10#,130,8#198809-199209

main95161-20519i3VZE..VZN130199008-199203

main95161-20622i2LT#,2L,3L..LN10#,13#,8#198809-199205

sub95161-30622

main95161-30516i1KZTE..KZN130199308-199511

main95161-30622i2L#,3L..LN10#,112,13#,8#199205

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-14013i2Y,3Y..YN10#,8#198809-198901

sub90105-14069

main90105-14069i2Y,3Y#..YN10#,130,8#198901

main90105-16031i3VZE..VZN130199008-199511

main90105-18010i1KZTE..KZN130199308-199509

sub90119-18003

main90119-14005i2L#,3L..LN10#,13#,8#198809-198910

main90119-14031i2LT#,2L,3L..LN10#,13#,8#198910-199310

sub90901-19028

main90119-18003i1KZTE..KZN130199509-199511

main90901-19028i2L#,3L..LN10#,112,8#199310

13471PSPACER(FOR CRANKSHAFT PULLEY)

main90560-19006i1KZTE..KZN130199308-199509

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-33010i2Y,3Y#..YN10#,130,8#198809

main13521-67020i1KZTE..KZN130199308-199511

13525GEAR, IDLE, NO.1

main13508-67900i1KZTE..KZN130199308-199511

sub13508-67011

13537GEAR, IDLE SUB, NO.1

main13537-67900i1KZTE..KZN130199308-199511

13538GEAR, IDLE SUB, NO.2

main13538-67900i1KZTE..KZN130199308-199511

13538AWASHER, WAVE

main90206-69001i1KZTE..KZN130199308-199511

13538CRING, SHAFT SNAP

main90520-58002i1KZTE..KZN130199308-199511

13572PLATE, IDLE GEAR THRUST

main13572-67040i1KZTE..KZN130199308-199503

main13572-67041i1KZTE..KZN130199503-199511

13578SPRING, IDLE GEAR

main13578-67010i1KZTE..KZN130199308-199511

13581SHAFT, IDLE GEAR, NO.1

main13581-67040i1KZTE..KZN130199308-199503

main13581-67041i1KZTE..KZN130199503-199511

13601ABALANCESHAFT SUB-ASSY, NO.1

main13601-67010i1KZTE..KZN130199308-199511

sub13601-67020

13602BALANCESHAFT SUB-ASSY, NO.2

main13602-67010i1KZTE..KZN130199308-199511

sub13602-67020

13613EGEAR, INJECTION

main13613-67900i1KZTE..KZN130199308-199511

sub13613-67902

13613FBEARING, RADIAL BALL

main90363-60004i1KZTE..KZN130199308-199511

13632GEAR, BALANCESHAFT DRIVEN, NO.1

main13632-67010i1KZTE..KZN130199308-199511

13633GEAR, BALANCESHAFT DRIVEN, NO.2

main13633-67010i1KZTE..KZN130199308-199511

9010508258

main90105-08258

9010508271

main90105-08271

9010510398

main90105-10398

9017614003

main90176-14003

9030123005

main90301-23005

9151260625

main91512-60625

9151280612

main91512-80612

43 parts on this diagram · 5 diagrams in section
