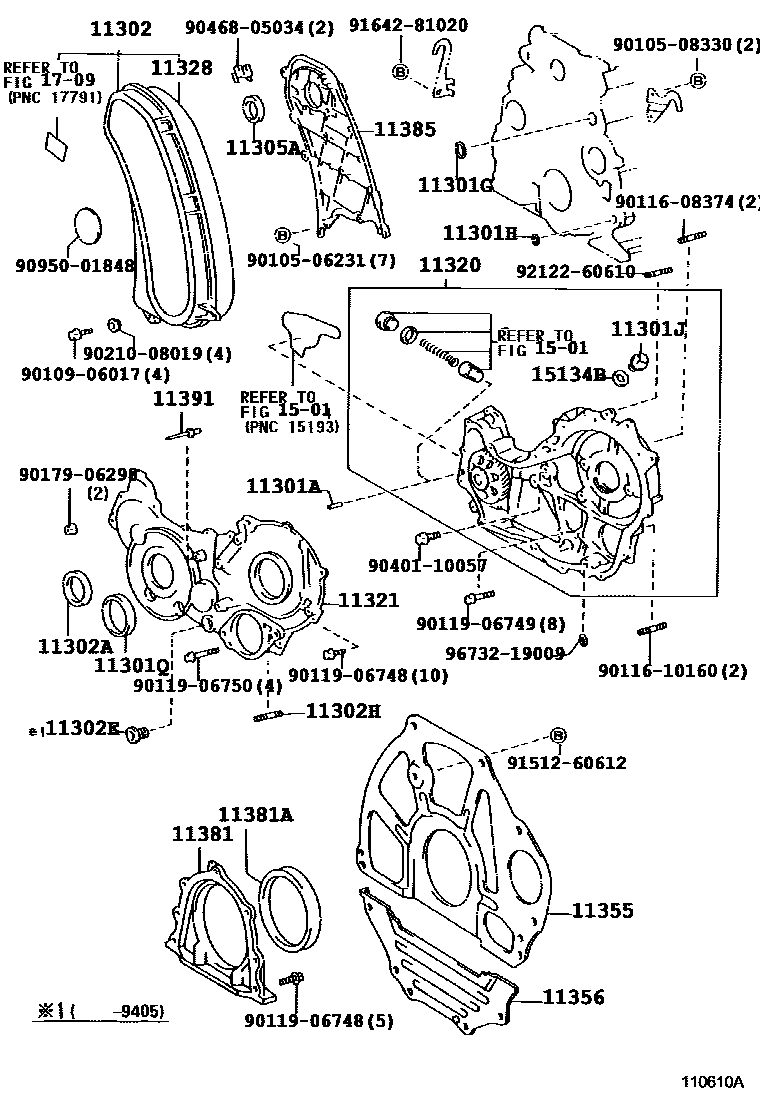

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-71010i2Y,3Y#..YN10#,130,8#198809

main11311-54050i2LT#,2L,3L..LN10#,13#,8#198809-199108

sub11311-54051

main11311-54051i2L#,3L..LN10#,13#,8#199108-199505

sub11311-54052

sub15115-54022

main11311-54052i2LTE,3L..LN10#,112,8#199505

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-06001i2Y,3Y#..YN10#,130,8#198809

main90250-08120i1KZTE..KZN130199308-199511

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main96721-24022i1KZTE..KZN130199308-199511

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main96721-24010i1KZTE..KZN130199308-199511

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90341-18015i1KZTE..KZN130199308-199511

11301QSEAL, TYPE T OIL(FOR INJECTION PUMP)

main90311-58006i1KZTE..KZN130199308-199511

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-65010i3VZE..VZN130199008-199511

main11302-67010i1KZTE..KZN130199308-199511

sub11302-67020

main11321-54020i2LT#,2L,3L..LN10#,112,13#,8#198809

sub11321-54021

main11321-71010i2Y,3Y#..YN10#,130,8#198809

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-42019i2Y,3Y#..YN10#,130,8#198809

sub90311-42036

main90311-50017i1KZTE..KZN130199308-199511

sub90311-50051

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i2LT#,2L,3L..LN10#,112,13#,8#198809

main90341-22004i1KZTE..KZN130199308-199405

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08376i1KZTE..KZN130199308-199511

sub90116-08377

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32001i2LT#,2L,3L..LN10#,13#,8#198809-199102

sub90311-32018

main90311-32017i1KZTE..KZN130199102-199702

sub90311-32020

main90311-32019i2LTE,3L..LN10#,112,8#199703

11320CASE ASSY, TIMING GEAR

main11320-67010i1KZTE..KZN130199308-199511

11321CASE, TIMING GEAR

main11321-67030i1KZTE..KZN130199308-199405

sub11321-67031

main11321-67031i1KZTE..KZN130199405-199511

sub11321-67032

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54020i2L,3L..LN10#,8#198809-198904

sub11328-54021

main11328-54021i2LT#,2L,3L..LN10#,112,13#,8#198904

main11328-67020i1KZTE..KZN130199308-199511

main11328-71011i2Y,3Y#..YN10#,130,8#198809-198912

sub11328-71012

main11328-71012i2Y,3Y#..YN10#,130,8#198912

11355PLATE, REAR END

main11355-54030i2L,3L..LN8#..5H198809

main11355-54040i2L..LN85..4FC198809-199408

main11355-54070i2LT#,3L..LN100,106,107,109,13#..5F198809

main11355-54110i2LTE..LN108,112,130..4FC199008

main11355-65010i3VZE..VZN130199008-199405

sub11355-65011

main11355-65011i3VZE..VZN130199405-199511

main11355-67010i1KZTE..KZN130199308-199511

main11355-71010i2Y,3Y#..YN10#,130,8#..MTM198809

main11355-71021i3YE..YN130,86..4FC198904

11356PLATE, REAR END, NO.2

main11356-67010i1KZTE..KZN130199308-199511

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54020i2LT#,2L,3L..LN10#,112,13#,8#198809

sub11381-54030

sub90116-08404

main11381-62010i3VZE..VZN130199008-199511

main11381-67020i1KZTE..KZN130199308-199511

main11381-71010i2Y,3Y#..YN10#,130,8#198809

11381ASEAL, ENGINE REAR OIL

main90311-80003i2Y,3Y#..YN10#,130,8#198809-199004

sub90311-80009

main90311-80009i2Y,3Y#..YN10#,130,8#199004

sub90311-80014

main90311-85004i2LT#,2L,3L..LN10#,13#,8#198809-199102

sub90311-85006

main90311-85006i2L#,3L..LN10#,13#,8#199102-199208

sub90311-85009

main90311-85007i2L#,3L..LN10#,112,13#,8#199209-199702

main90311-85008i2LTE,3L..LN10#,112,8#199703

main90311-92004i3VZE..VZN130199008-199104

sub90311-92006

main90311-92006i3VZE..VZN130199104-199511

sub90311-92009

main90311-95008i1KZTE..KZN130199308-199511

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i2LT#,2L,3L..LN10#,112,13#,8#198809

main11382-67010i1KZTE..KZN130199308-199511

11391POINTER, TIMING

main11391-54020i2LT#,2L,3L..LN10#,112,13#,8#198809

main11391-67010i1KZTE..KZN130199308-199511

1501

15134BGASKET, OIL PUMP RELIEF VALVE

main15134-67010i1KZTE..KZN130199308-199511

1709

9010506231

main90105-06231

9010508330

main90105-08330

9010906017

main90109-06017

9011608374

main90116-08374

9011610160

main90116-10160

9011906748

main90119-06748

9011906749

main90119-06749

9011906750

main90119-06750

9017906298

main90179-06298

9021008019

main90210-08019

9040110057

main90401-10057

9046805034

main90468-05034

9095001848

main90950-01848

9151260612

main91512-60612

9164281020

main91642-81020

9212260610

main92122-60610

9673219009

main96732-19009
